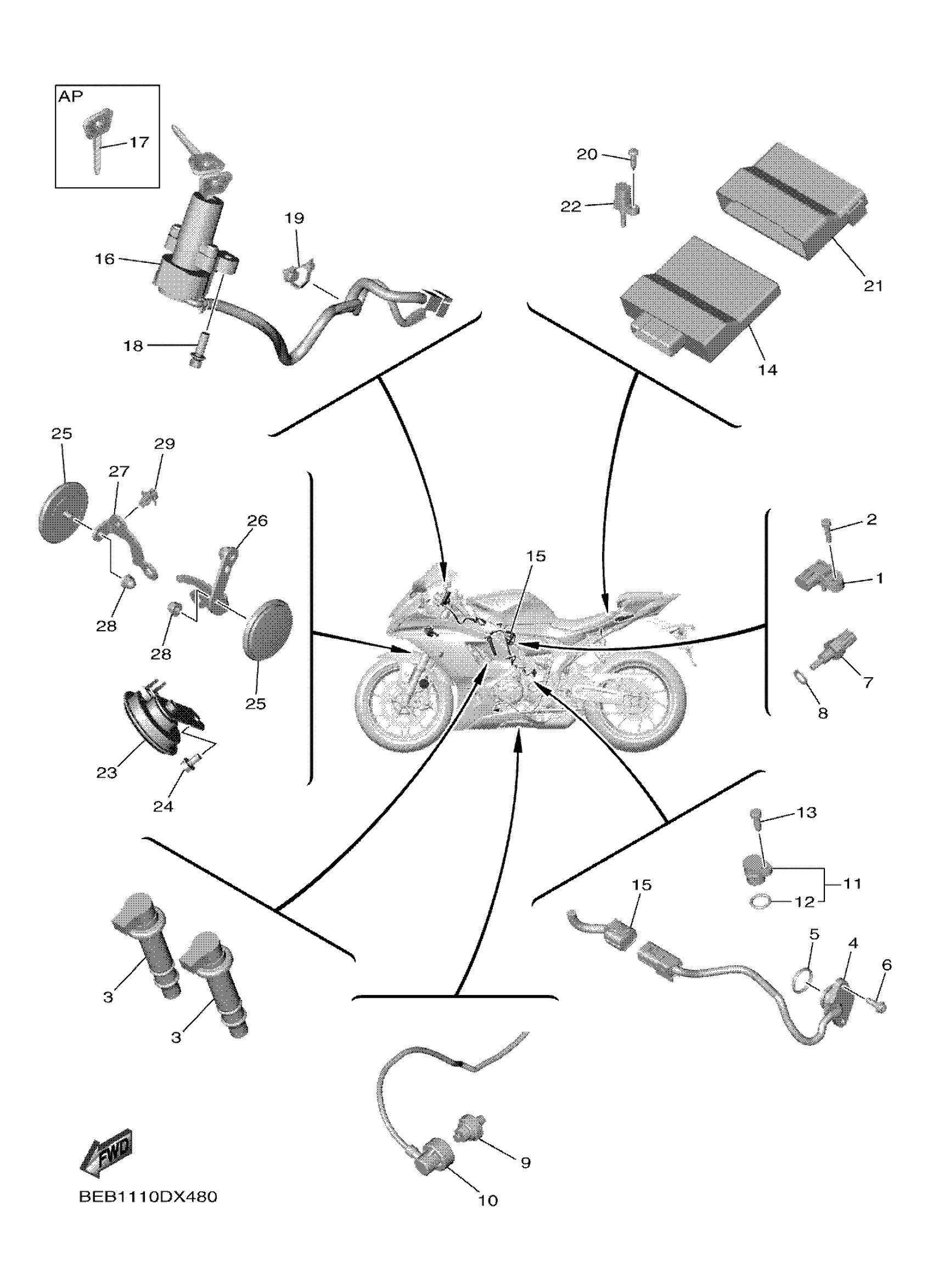

Yamaha YZFR7NL (YZFR7) BEB1 2022 ELECTRICAL 2 Diagram

#

Description
Price

1

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

2

BOLT, SOCKET

91317-05020-00

$3.28

3

IGNITION COIL ASSY

1WS-82310-00-00

$110.99

4

NEUTRAL SWITCH ASSY

1WS-82540-01-00

$71.99

5

O-RING

93210-21001-00

$5.60

6

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

7

THERMO UNIT

52B-H3591-00-00

$34.99

8

GASKET

90430-10004-00

$7.49

9

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

10

LEAD WIRE ASSY

1WS-81315-00-00

Unavailable

11

PLUG, BLIND

3P6-15399-00-00

Unavailable

12

O-RING (22U)

93210-15566-00

$7.49

13

BOLT(3MA)

91312-06016-00

$5.60

14

ENGINE CONTROL UNI

BEB-8591A-30-00

$898.99

15

WIRE, SUB LEAD

BAT-82309-00-00

Unavailable

16

MAIN SWITCH STEERING LOCK

BEB-82501-01-00

Unavailable

17

BLANK KEY

4BH-82511-09-00

Unavailable

18

BOLT

90109-08196-00

Unavailable

19

CLAMP

90464-45008-00

Unavailable

20

SCREW, TAPPING

97780-50620-00

Unavailable

21

BAND

B34-H5546-00-00

Unavailable

22

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

23

HORN

BD5-83371-00-00

Unavailable

24

BLOT, FLANGE DEEP RECESS

95D32-06012-00

Unavailable

25

REFLECTOR, FRONT 1

4AG-85111-00-00

Unavailable

26

BRACKET, REFLECTOR

BEB-85112-00-00

Unavailable

27

BRACKET, REFLECTOR

BEB-85122-00-00

Unavailable

28

NUT, CROWN

90176-06011-00

Unavailable

29

CLAMP(4BD)

90464-48174-00

Unavailable
