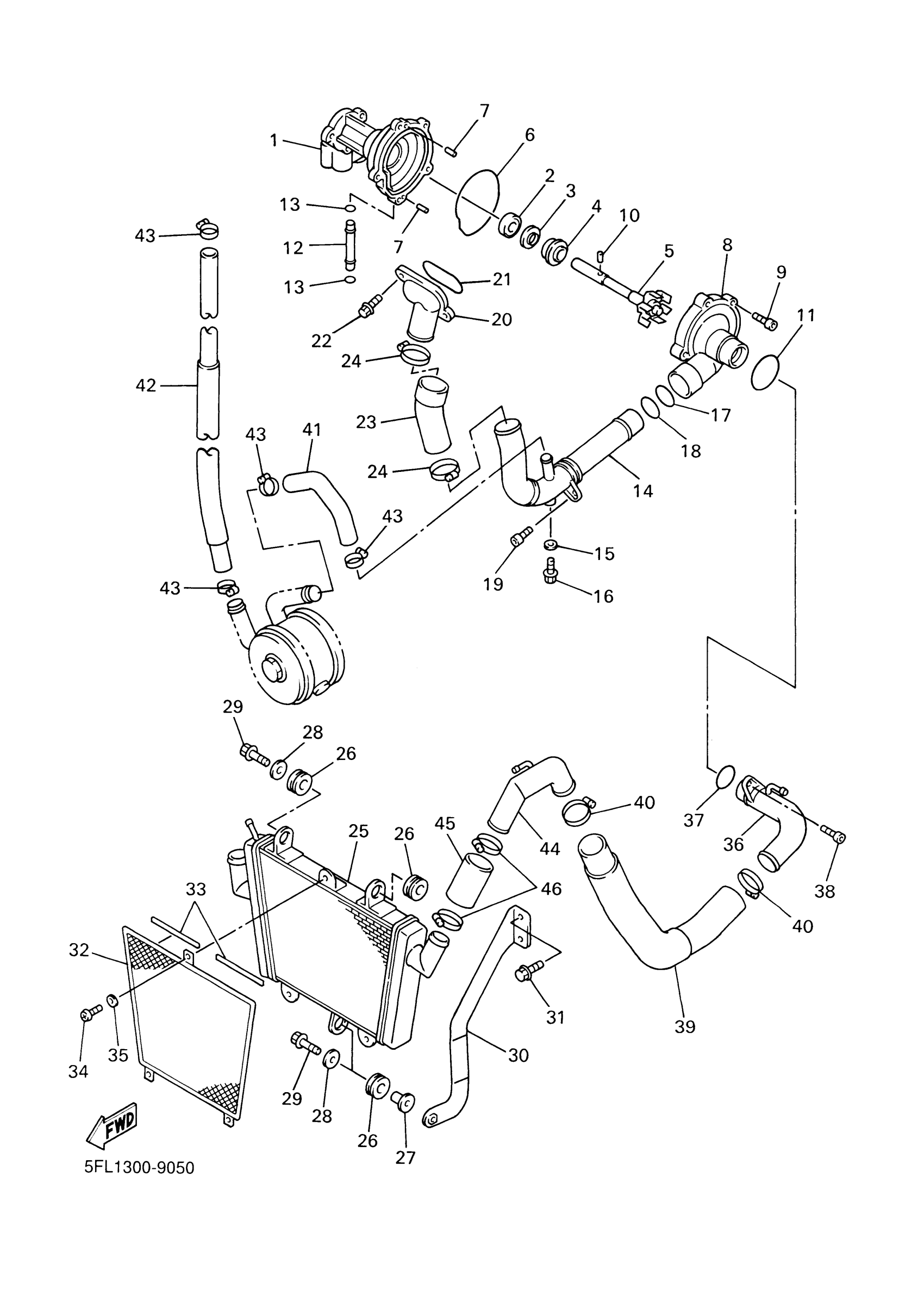

Yamaha YZFR7L (YZFR7) 5FL1 1999 WATER PUMP RADIATOR Diagram

#

Description
Price

1

HOUSING, WATER PUMP

4XV-12421-00-00

Unavailable

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

3

OIL SEAL

93102-12372-00

$12.49

4

SEAL, MECHANICAL

11H-12438-10-00

$62.99

5

IMPELLER SHAFT ASSY

4XV-12450-00-00

Unavailable

6

O-RING

4XV-12439-00-00

$15.49

7

PIN,DOWEL (603)

93604-10011-00

$8.49

8

COVER, HOUSING

4XV-12422-00-00

Unavailable

9

BOLT,SOCKET

91317-06025-00

$5.60

10

PIN,DOWEL

93603-17070-00

$4.14

11

O-RING

93210-357A2-00

$9.49

12

PIPE 5

4XV-12485-00-00

$9.99

13

O-RING(26H)

93210-06667-00

$7.49

14

PIPE 1

5FL-12481-00-00

Unavailable

15

GASKET 256113960000

90430-06014-00

Unavailable

16

SCREW

90153-06029-00

Unavailable

17

O-RING

93210-235A1-00

Unavailable

18

O-RING(1KT)

93210-27778-00

Unavailable

19

BOLT,SOCKET

91317-06012-00

Unavailable

20

JOINT 1

4XV-12469-00-00

Unavailable

21

O-RING(52H)

93210-47675-00

Unavailable

22

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

23

HOSE 1

5FL-12576-00-00

Unavailable

24

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

25

RADIATOR ASSEMBLY

5FL-12461-10-00

Unavailable

26

GROMMET

90480-15001-00

Unavailable

27

COLLAR

90387-0614M-00

Unavailable

28

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

29

BOLT, FLANGE

95817-06025-00

Unavailable

30

STAY 1

5FL-12637-00-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

Unavailable

32

COVER, RADIATOR

5FL-12467-00-00

Unavailable

33

DAMPER, RADIATOR

4TX-12465-00-00

Unavailable

34

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

35

WASHER(1RW)

92907-05600-00

Unavailable

36

PIPE 4

5FL-12484-00-00

Unavailable

37

O-RING(1LT)

93210-23787-00

Unavailable

38

BOLT,SOCKET

91317-06012-00

Unavailable

39

HOSE 7

5FL-12551-00-00

Unavailable

40

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

41

HOSE 5

5FL-12588-00-00

Unavailable

42

HOSE 6

5FL-12589-00-00

Unavailable

43

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

44

PIPE 5

5FL-12485-00-00

Unavailable

45

HOSE 8

5FL-12552-10-00

Unavailable

46

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable
