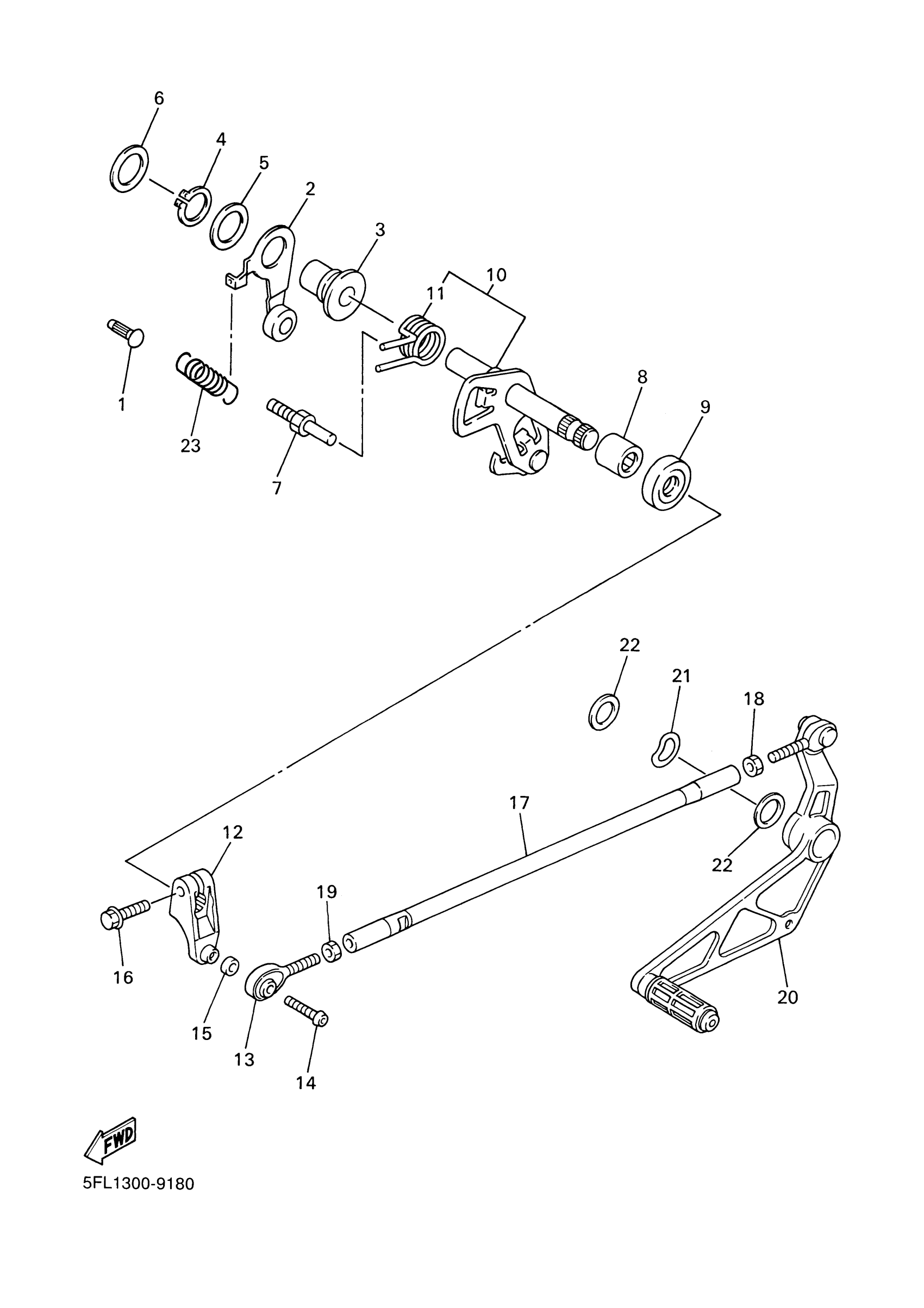

Yamaha YZFR7L (YZFR7) 5FL1 1999 SHIFT SHAFT Diagram

#

Description
Price

1

HOOK, SPRING

132-16346-00-00

$9.99

2

. STOPPER LEVER ASSY

4XV-18140-00-00

Unavailable

3

COLLAR(3MA)

90387-127V3-00

Unavailable

4

CIRCLIP(1EY)

99009-17400-00

$4.73

5

WASHER, PLATE (30X)

90201-177G4-00

$9.49

6

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

7

STOPPER, SCREW

5VK-18127-00-00

Unavailable

8

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

$36.99

9

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

10

SHIFT SHAFT ASSEMBLY

5FL-18101-00-00

Unavailable

11

SPRING, TORSION

90508-295B2-00

$9.49

12

ARM, SHIFT

5FL-18112-00-00

Unavailable

13

JOINT, ROD 1

5JJ-18116-00-00

Unavailable

14

BOLT, BUTTON HEAD

92017-06025-00

$9.49

15

WASHER, PLATE (8H9)

90201-06727-00

$8.49

16

BOLT, FLANGE

95814-06020-00

Unavailable

17

ROD, SHIFT

5FL-18115-00-00

Unavailable

18

NUT (2H9)

90170-06228-00

Unavailable

19

NUT(650)

95380-06700-00

Unavailable

20

SHIFT PEDAL ASSEMBLY

5FL-18110-00-00

Unavailable

21

WASHER, WAVE(6T4)

90206-14086-00

Unavailable

22

WASHER, PLATE(52G)

90201-144J2-00

Unavailable

23

SPRING, TENSION

90506-14532-00

Unavailable
