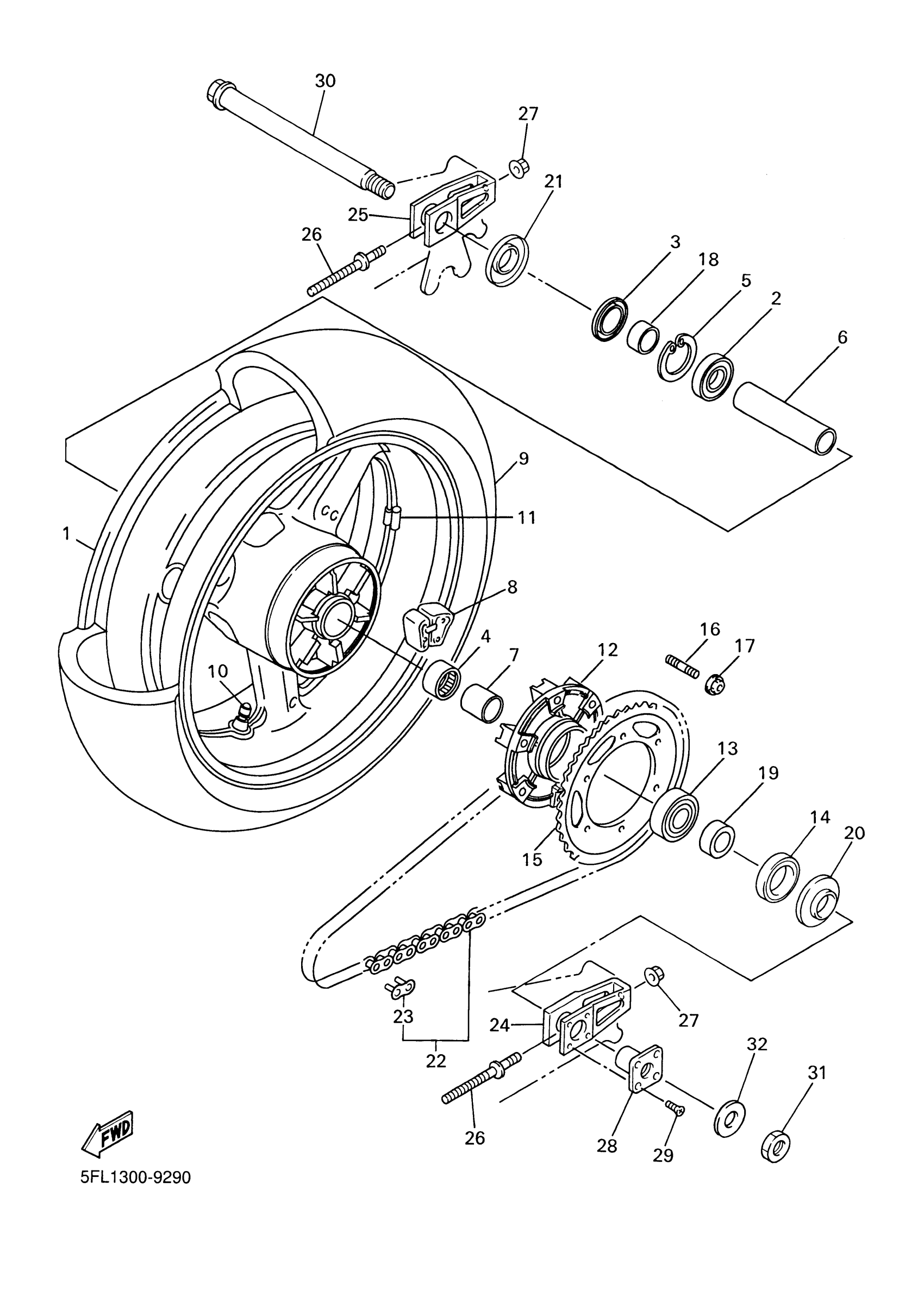

Yamaha YZFR7L (YZFR7) 5FL1 1999 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5FL-25338-00-33

Unavailable

2

BEARING

93306-07806-00

$63.99

3

OIL SEAL

93106-35042-00

$15.99

4

BEARING

93317-43580-00

$73.99

5

CIRCLIP(26H)

99009-52500-00

$12.49

6

SPACER, BEARING

5FL-25317-00-00

Unavailable

7

COLLAR, WHEEL

4XV-25383-00-00

Unavailable

8

DAMPER

5FL-25364-00-00

Unavailable

9

BULB (12V 60/55W HALOGEN)

000-0000*-00-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

5FL-25366-00-00

Unavailable

13

BEARING

93306-27802-00

$71.99

14

OIL SEAL

93106-40041-00

Unavailable

15

SPROCKET, DRIVEN (43T)

5FL-25443-20-00

Unavailable

16

BOLT, STUD(1TX)

90116-10485-00

Unavailable

17

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

18

COLLAR

90387-28020-00

Unavailable

19

COLLAR

90387-28019-00

Unavailable

20

COLLAR, WHEEL

4XV-25367-00-00

Unavailable

21

COVER, PLATE

4XV-25327-00-00

Unavailable

22

CHAIN (DID50ZVM-118LL)

9Y581-69117-00

Unavailable

23

JOINT, CHAIN

94681-69031-00

Unavailable

24

PULLER, CHAIN 1

5FL-25388-00-00

Unavailable

25

PULLER, CHAIN 2

5FL-25389-00-00

Unavailable

26

BOLT, CHAIN PULLAR

5FL-25379-00-00

Unavailable

27

NUT, FLANGE

95704-08500-00

Unavailable

28

SPACER

5FL-25683-00-00

Unavailable

29

SCREW, FLAT HEAD

98780-04008-00

Unavailable

30

AXLE, WHEEL

5FL-25381-00-00

Unavailable

31

NUT, LOCK

5FL-25413-00-00

Unavailable

32

WASHER, PLATE

90201-24008-00

Unavailable
