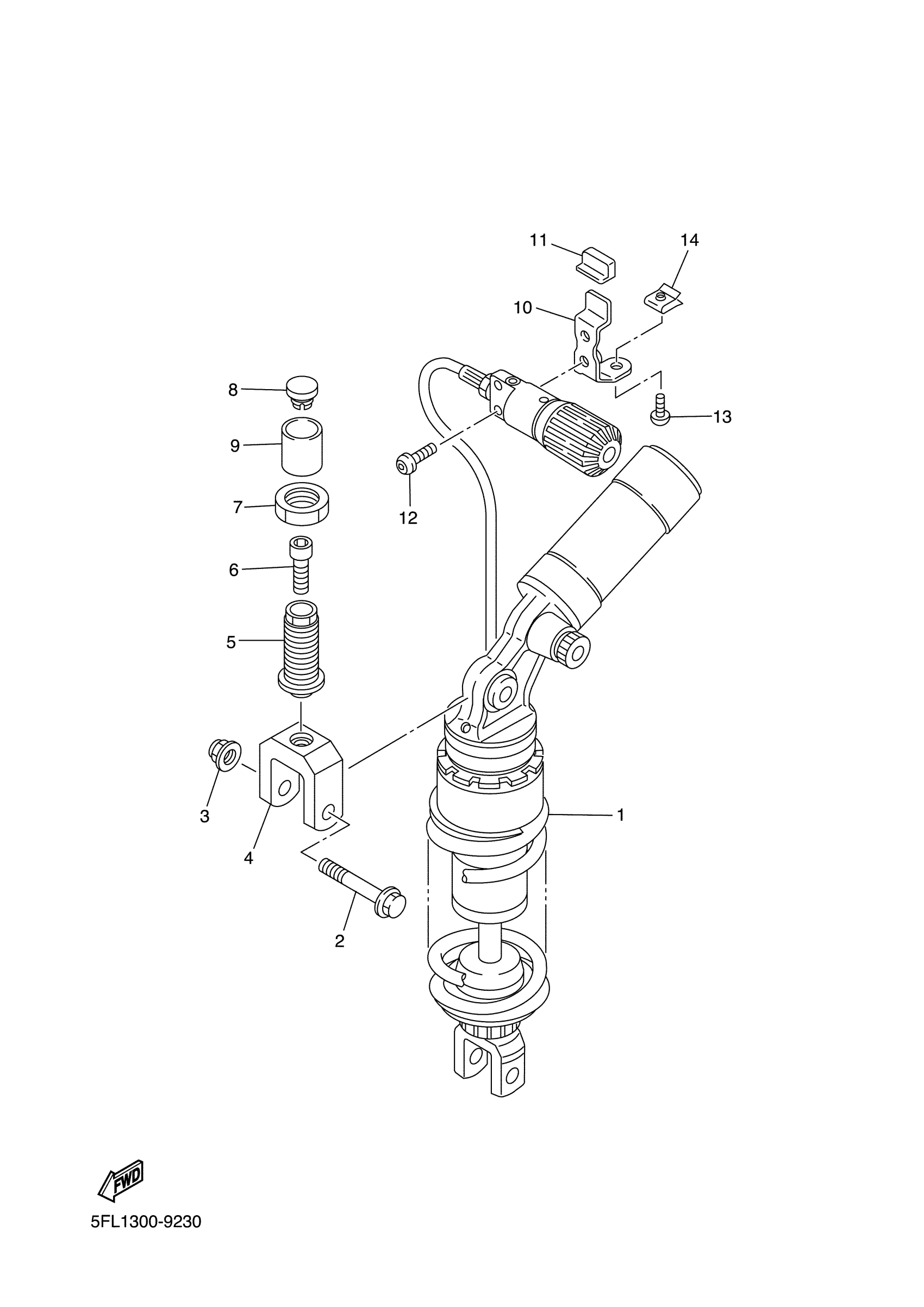

Yamaha YZFR7L (YZFR7) 5FL1 1999 REAR SUSPENSION Diagram

SHOCK ABSORBER ASSEMBLY, REAR

5FL-22210-00-00

Unavailable

BOLT, WASHER BASED

90105-10011-00

$12.49

NUT, SELF-LOCKING

90185-10170-00

$9.49

BRACKET, UPPER ASSEMBLY

5FL-22209-00-00

Unavailable

ADJUSTER

5FL-22239-00-00

Unavailable

BOLT, SOCKET

91317-10025-00

$8.49

NUT 1

1RK-22251-00-00

$31.99

GROMMET (420)

90480-14153-00

$9.49

HOSE (L85)

90445-252G5-00

Unavailable

BRACKET 1

5FL-22364-00-00

Unavailable

BOOT, REAR SHOCK ABSORBER

5FL-22263-00-00

Unavailable

BOLT, BUTTON

92014-06025-00

Unavailable

BOLT, BUTTON HEAD

92017-06012-00

$7.49

NUT, SPRING(4ES)

90183-06069-00

Unavailable
