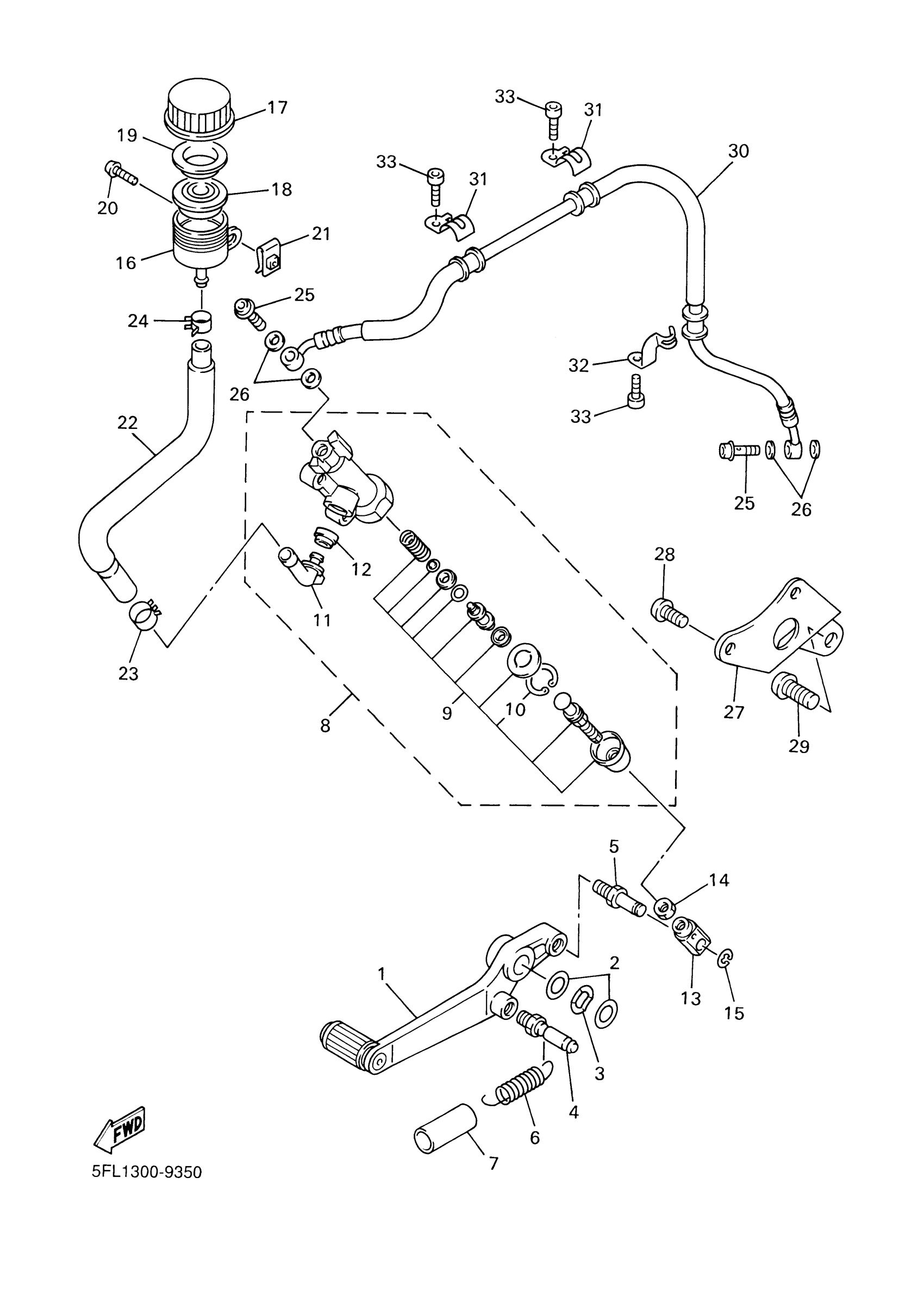

Yamaha YZFR7L (YZFR7) 5FL1 1999 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

5FL-27200-00-00

Unavailable

2

WASHER, PLATE(52G)

90201-144J2-00

$8.49

3

WASHER, WAVE(6T4)

90206-14086-00

$8.49

4

PIN, PEDAL CRANK

5FL-27813-00-00

Unavailable

5

SHAFT, PEDAL 1

5FL-27853-00-00

Unavailable

6

SPRING, TENSION(46X)

90506-20377-00

$8.49

7

HOSE(3GM)

90446-17346-00

$5.60

8

RR. MASTER CYLINDER ASSEMBLY.

5FL-2583V-00-00

Unavailable

9

CYLINDER KIT, MASTER

3TU-W0042-51-00

Unavailable

10

CIRCLIP, MASTER CYLINDER

3LN-2585G-00-00

$4.63

11

JOINT

4BP-2582A-00-00

$17.49

12

O-RING

4BP-2585F-01-00

Unavailable

13

JOINT

5FL-27222-00-00

Unavailable

14

NUT, HEXAGON SMALL

95317-08700-00

$9.49

15

CIRCLIP(2NL)

93410-08072-00

$0.59

16

TANK, RESERVOIR

2VN-25894-00-00

Unavailable

17

CAP, RESERVOIR

3XP-25852-50-00

Unavailable

18

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

19

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

20

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

21

NUT, SPRING(4ES)

90183-06069-00

Unavailable

22

HOSE, RESERVOIR

5FL-25895-00-00

Unavailable

23

CLIP (5K4)

90467-14057-00

Unavailable

24

CLIP (7K7)

90467-11044-00

Unavailable

25

BOLT, UNION

90401-10172-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

STAY, MUFFLER 1

5FL-21445-00-00

Unavailable

28

BOLT, BUTTON

92014-08016-00

Unavailable

29

BOLT, BUTTON

92014-10020-00

Unavailable

30

HOSE, BRAKE

5FL-25874-00-00

Unavailable

31

HOLDER, BRAKE HOSE 2

3XV-25876-30-00

Unavailable

32

HOLDER, BRAKE HOSE 2

4FM-25876-01-00

Unavailable

33

BOLT,SOCKET HEAD

91314-06020-00

Unavailable
