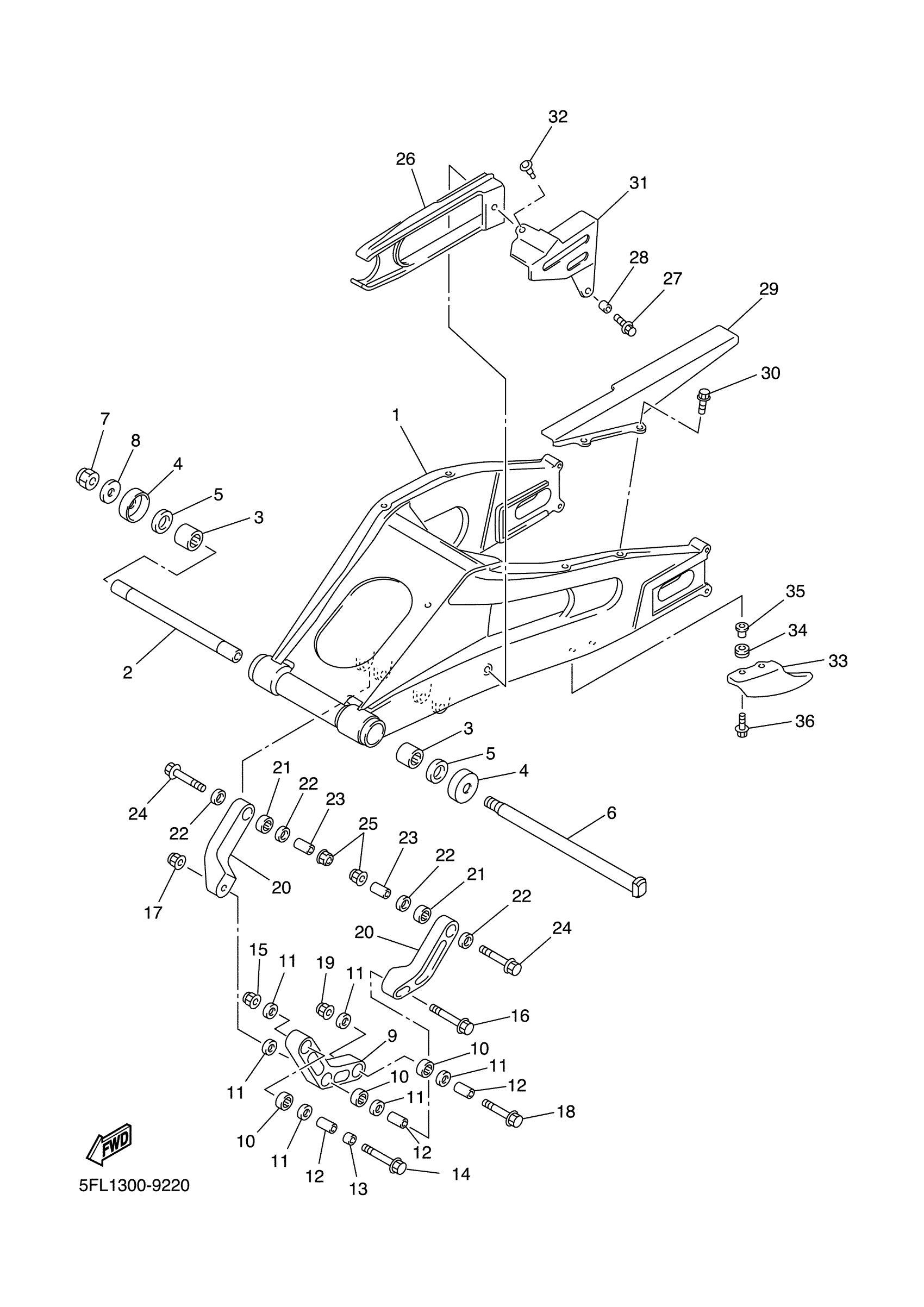

Yamaha YZFR7L (YZFR7) 5FL1 1999 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

5FL-22110-00-00

Unavailable

2

BUSH

5FL-22184-00-00

Unavailable

3

BRG,CYL-CAL ROLLER 46.8G NT

93315-42523-00

$25.56

4

COVER, THRUST 1

3FV-22128-00-00

Unavailable

5

BEARING

93342-22518-00

Unavailable

6

SHAFT, PIVOT

4FN-22141-00-00

$81.50

7

NUT, SELF-LOCKING

90185-18009-00

$14.81

8

WASHER

92903-18600-00

Unavailable

9

ARM, RELAY

5FL-2217A-00-00

Unavailable

10

BEARING

93315-31758-00

$32.40

11

OIL SEAL

93109-17071-00

$6.29

12

COLLAR

90387-1012A-00

$16.59

13

COLLAR

90387-1013U-00

$19.35

14

BOLT, WASHER BASED

90105-10011-00

$8.55

15

NUT, SELF-LOCKING

90185-10170-00

$7.46

16

BOLT, WASHER BASED

90105-10011-00

$8.55

17

NUT, SELF-LOCKING

90185-10170-00

$7.46

18

BOLT, WASHER BASED(1KT)

90105-10402-00

Unavailable

19

NUT, SELF-LOCKING

90185-10170-00

$7.46

20

ROD, CONNECTING 1

5FL-2217F-00-00

Unavailable

21

BEARING

93315-31758-00

$32.40

22

OIL SEAL

93109-17071-00

$6.29

23

COLLAR

90387-1012A-00

$16.59

24

BOLT, WASHER BASED(1KT)

90105-10402-00

Unavailable

25

NUT, SELF-LOCKING

90185-10170-00

$7.46

26

SEAL, GUARD

5FL-22151-00-00

Unavailable

27

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable

28

COLLAR(J45)

90387-064T3-00

Unavailable

29

CASE, CHAIN

5FL-22311-00-00

Unavailable

30

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable

31

CASE, CHAIN 2

5FL-22312-00-00

Unavailable

32

RIVET

90269-08069-00

$1.50

33

SUPPORT, CHAIN

5FL-22199-00-00

Unavailable

34

GROMMET (462)

90480-13018-00

Unavailable

35

COLLAR(1LJ)

90387-067N5-00

Unavailable

36

BOLT, WITH WASHER(3FC)

90119-06163-00

Unavailable
