RADIATOR HOSE

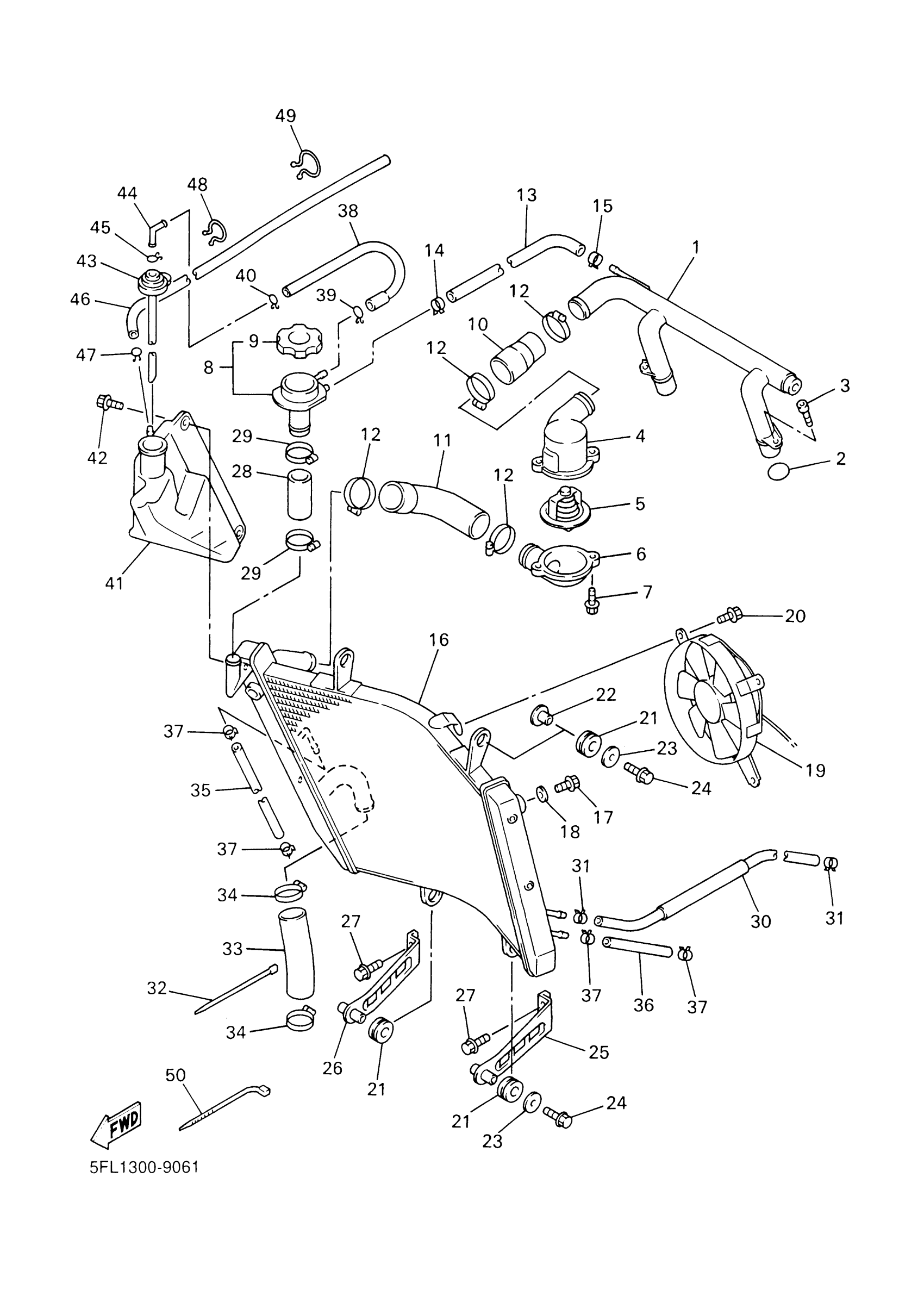

Yamaha YZFR7L (YZFR7) 5FL1 1999 RADIATOR HOSE Diagram
#
1
PIPE 2
5FL-12482-00-00
Unavailable
4
HOUSING, THERMOSTAT
5FL-12417-00-00
Unavailable
6
COVER, THERMOSTAT
5FL-12413-00-00
Unavailable
8
CONDUCTION ASSY
5FL-12590-00-00
Unavailable
10
HOSE 2
1AE-12577-00-00
Unavailable
11
HOSE 3
5FL-12578-00-00
Unavailable
13
HOSE 6
47X-12589-00-00
Unavailable
16
RADIATOR ASSEMBLY
5FL-12461-00-00
Unavailable
17
PLUG, DRAIN COCK
5FL-12561-00-00
Unavailable
18
GASKET
5FL-12435-00-00
Unavailable
19
BLOWER ASSEMBLY
5FL-12405-00-00
Unavailable
20
BOLT, FLANGE
95817-06010-00
Unavailable
21
GROMMET
90480-15001-00
Unavailable
22
COLLAR
90387-0614M-00
Unavailable
23
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
24
BOLT, FLANGE
95817-06025-00
Unavailable
25
STAY, RADIATOR
5FL-12464-00-00
Unavailable
26
STAY, RADIATOR
5FL-12464-10-00
Unavailable
27
BOLT, FLANGE
95817-06012-00
Unavailable
28
HOSE 4
5FL-12579-00-00
Unavailable
29
HOSE CLAMP ASSY
90450-28001-00
Unavailable
30
HOSE 1
5FL-1243A-00-00
Unavailable
32
CLAMP(4FM)
90464-15195-00
Unavailable
33
HOSE 8
5FL-12552-00-00
Unavailable
35
HOSE,3
5FL-1243F-00-00
Unavailable
36
HOSE, 4
5FL-1244G-00-00
Unavailable
38
HOSE 2
5FL-1243E-00-00
Unavailable
39
CLIP
90467-100A1-00
Unavailable
40
CLIP 101235600
90467-08003-00
Unavailable
41
TANK, RECOVERY
5FL-21871-00-00
Unavailable
42
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
43
CAP
1B7-21875-00-00
Unavailable
44
ELBOW
26H-21828-00-00
Unavailable
45
CLIP(72X)
90467-11M08-00
Unavailable
46
HOSE
90445-085K9-00
Unavailable
47
CLIP 101235600
90467-08003-00
Unavailable
48
CLAMP (3Y2)
90464-16039-00
Unavailable
49
CLAMP (8M1)
90464-30040-00
Unavailable
50
CLAMP(4FM)
90464-15195-00
Unavailable
