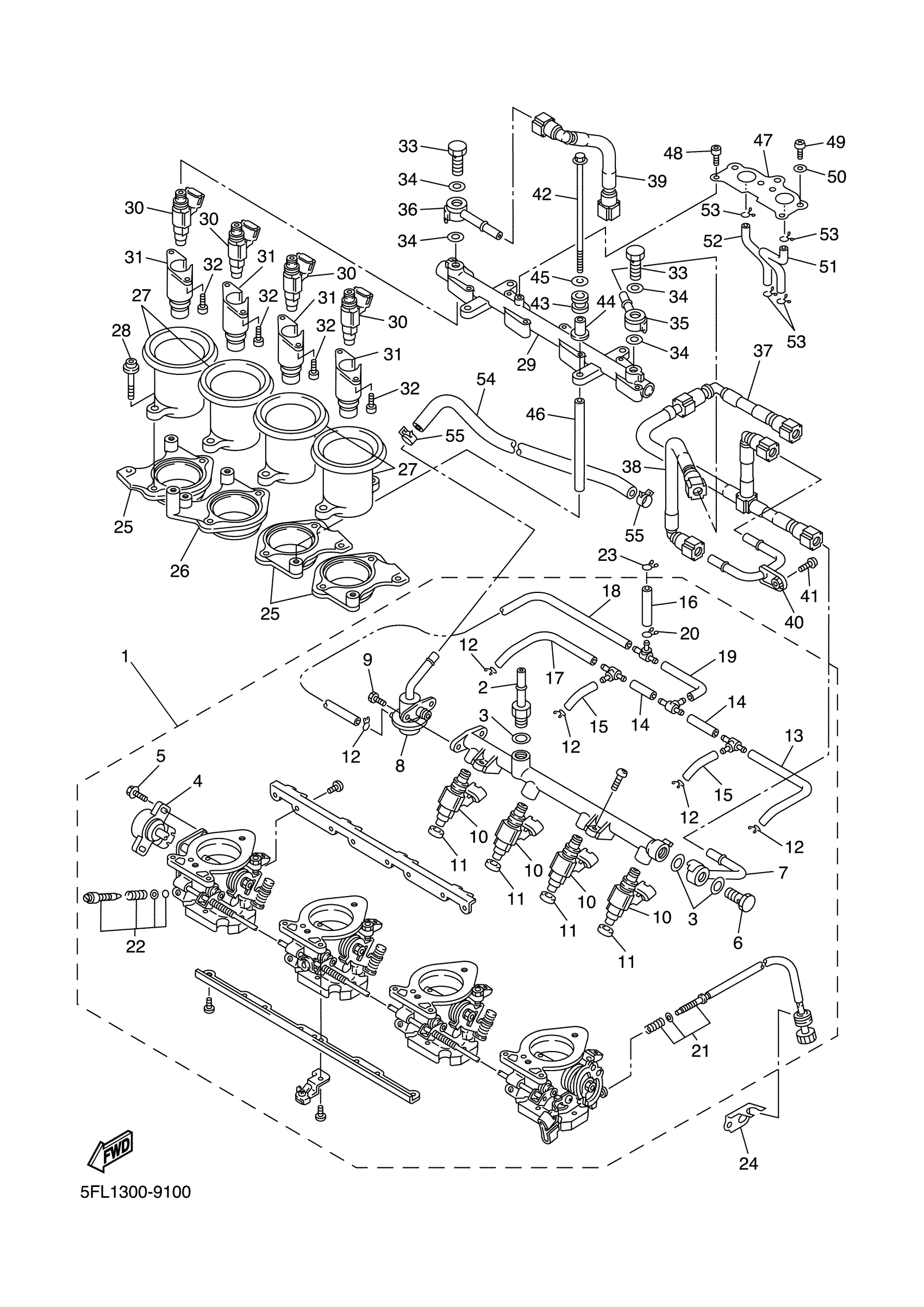

Yamaha YZFR7L (YZFR7) 5FL1 1999 INTAKE 2 Diagram
#
1
THROTTLE BODY ASSY
5FL-13750-00-00
Unavailable
2
. PIPE, FUEL INJECTION 2
5FL-12882-00-00
Unavailable
6
BOLT 1
4BH-13573-00-00
Unavailable
7
. PIPE, FUEL INJECTION 1
5FL-12881-00-00
Unavailable
8
. REGULATOR, PRESSURE
5FL-13906-00-00
Unavailable
9
. SCREW
5FL-14565-00-00
Unavailable
10
. INJECTOR ASSEMBLY
5FL-13761-10-00
Unavailable
13
. PIPE 1
5FL-14348-00-00
Unavailable
15
. PIPE
5FL-14349-00-00
Unavailable
16
HOSE
31H-14987-00-00
Unavailable
17
PIPE
5FL-14349-10-00
Unavailable
18
. HOSE
5FL-14987-00-00
Unavailable
19
HOSE
5FL-14987-10-00
Unavailable
20
CLIP, PIPE
8U9-14139-00-00
Unavailable
21
. THROTTLE SCREW SET
5FL-14103-00-00
Unavailable
22
. AIR SCREW SET
5FL-14104-00-00
Unavailable
23
CLIP
90467-100A1-00
Unavailable
24
STAY
5FL-14413-00-00
Unavailable
25
FUNNEL, AIR
5FL-14469-10-00
Unavailable
26
FUNNEL, AIR
5FL-14469-00-00
Unavailable
27
FUNNEL
5FL-14479-00-00
Unavailable
28
BOLT
90109-06009-00
Unavailable
29
PIPE
5FL-13938-00-00
Unavailable
30
INJECTOR ASSY
5FL-13761-00-00
Unavailable
31
CAP, INJECTOR
5FL-13767-00-00
Unavailable
32
BOLT
91314-05016-00
Unavailable
33
BOLT 1
4BH-13573-00-00
Unavailable
35
PIPE, FUEL INJECTION 3
5FL-12883-00-00
Unavailable
36
PIPE, FUEL INJECTION 4
5FL-12884-00-00
Unavailable
37
PIPE, FUEL 1
5FL-13971-00-00
Unavailable
38
PIPE, FUEL 2
5FL-13972-00-00
Unavailable
39
PIPE, FUEL 3
5FL-13973-00-00
Unavailable
40
JOINT
5FL-14454-00-00
Unavailable
41
BOLT, BUTTON HEAD
92017-05014-00
Unavailable
42
BOLT, FLANGE
95814-06120-00
Unavailable
43
DAMPER 1
5FL-14425-00-00
Unavailable
44
COLLAR, DISTANCE
5FL-14444-00-00
Unavailable
45
WASHER, PLATE
90201-06095-00
Unavailable
46
COLLAR
5FL-14443-00-00
Unavailable
47
PANEL 1
5FL-1441L-00-00
Unavailable
48
BOLT
91314-05016-00
Unavailable
49
SCREW, PAN HEAD
98507-05014-00
Unavailable
50
WASHER(1RW)
92907-05600-00
Unavailable
51
PIPE
5FL-14465-00-00
Unavailable
52
PIPE
5FL-14466-00-00
Unavailable
53
CLIP (16G)
90467-08021-00
Unavailable
54
HOSE
5FL-14294-00-00
Unavailable
55
CLIP(3YX)
90467-13133-00
Unavailable
