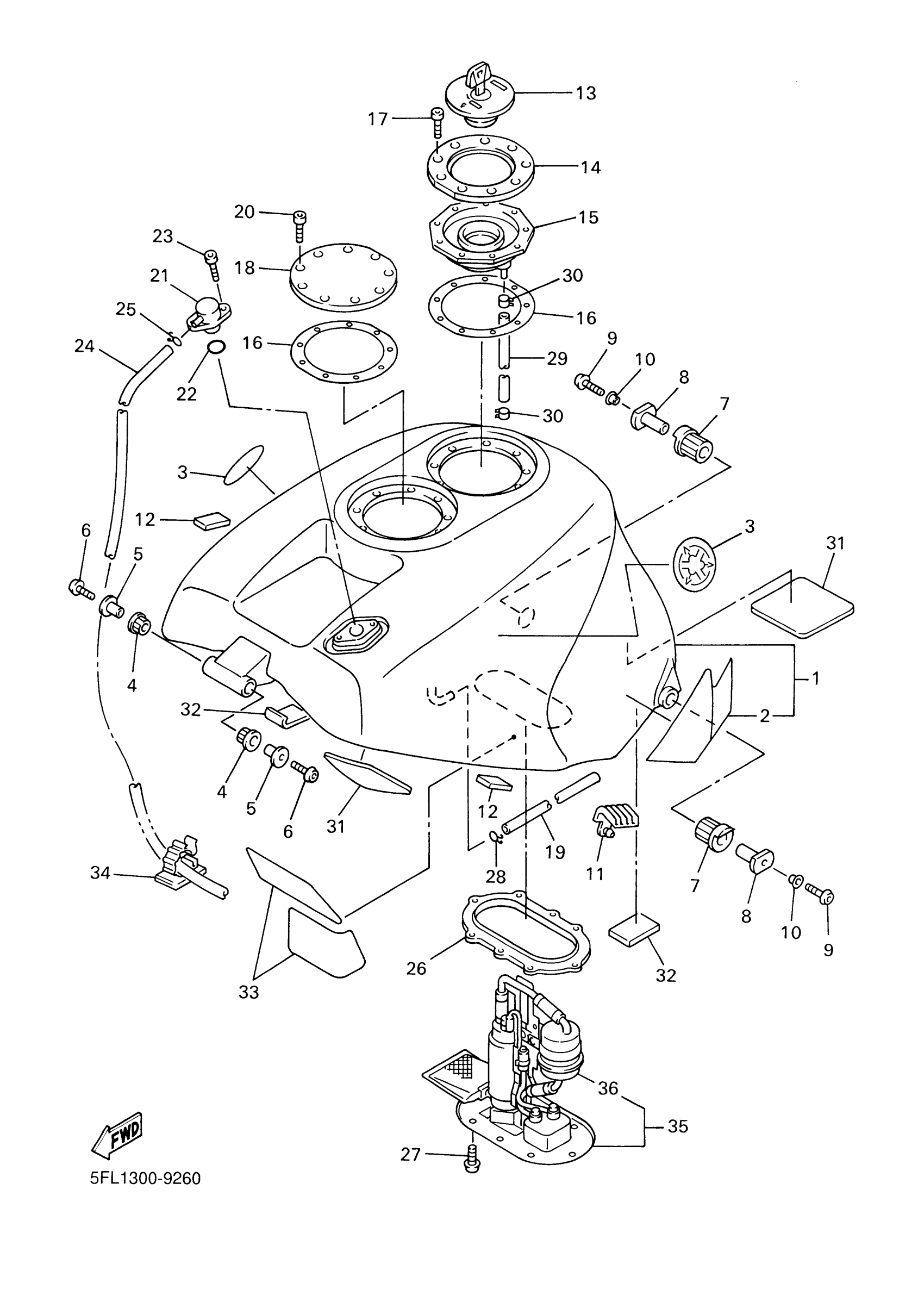

Yamaha YZFR7L (YZFR7) 5FL1 1999 FUEL TANK Diagram
#
1
FUEL TANK COMP. (VIVID RED COCKTAIL 1) (YAMAHA BLACK) (BLUISH WHITE COCKTAIL 1)
5FL-Y2410-01-01
Unavailable
2
. GRAPHIC SET
5FL-24240-00-00
Unavailable
3
EMBLEM
5FL-2413B-00-00
Unavailable
4
DAMPER, LOCATING 1
5FL-24181-00-00
Unavailable
5
NUT, FUEL TANK 1
5FL-24146-00-00
Unavailable
6
SCREW(4DN)
90149-06302-00
Unavailable
7
DAMPER, LOCATING 2
5FL-24182-00-00
Unavailable
8
NUT, FUEL TANK 2
5FL-24147-00-00
Unavailable
9
SCREW(4DN)
90149-06302-00
Unavailable
10
COLLAR
5FL-2412G-00-00
Unavailable
11
DAMPER, LOCATING 3
5FL-24183-00-00
Unavailable
12
DAMPER, LOCATING 4
5FL-24184-00-00
Unavailable
13
CAP ASSEMBLY
3FV-24602-00-00
Unavailable
14
COVER, FILLER
5FL-2414A-00-00
Unavailable
15
FILLER, BOX
5FL-2413H-00-00
Unavailable
16
GASKET
5FL-24218-00-00
Unavailable
17
BOLT
91380-05014-00
Unavailable
18
COVER
5FL-24217-00-00
Unavailable
19
HOSE
90445-10010-00
Unavailable
20
BOLT,SOCKET
91380-05010-00
Unavailable
21
ROLL OVER VALVE ASSEMBLY
5FL-24180-00-00
Unavailable
22
O-RING(M01)
93210-19758-00
Unavailable
23
BOLT,SOCKET
91380-04010-00
Unavailable
24
TUBE, DRAIN 2
5FL-2413J-00-00
Unavailable
25
CLIP
90467-09122-00
Unavailable
26
SEAL
5FL-2414G-00-00
Unavailable
27
BOLT, BUTTON HEAD
92017-05014-00
Unavailable
28
CLIP
90467-090A2-00
Unavailable
29
PIPE
5FL-24112-00-00
Unavailable
30
CLIP (3G0)
90467-10039-00
Unavailable
31
PROTECTOR
5BM-21652-00-00
Unavailable
32
SEAL 1
3SP-21732-00-00
Unavailable
33
SEAL
4NK-21268-00-00
Unavailable
34
CLAMP(3YL)
90464-25160-00
Unavailable
35
FUEL PUMP ASSEMBLY
5FL-13910-00-00
Unavailable
36
. FILTER
5FL-13915-00-00
Unavailable
