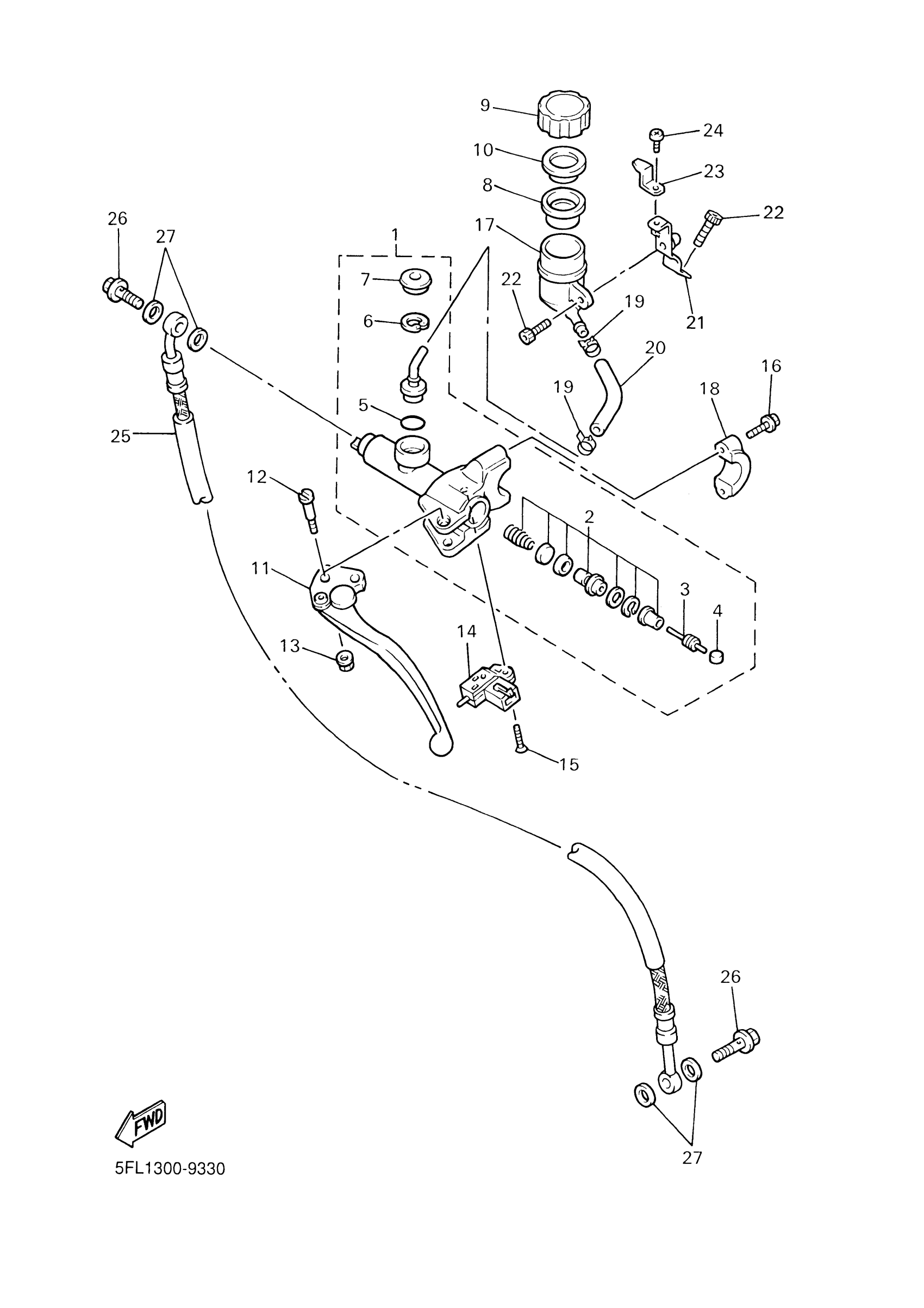

Yamaha YZFR7L (YZFR7) 5FL1 1999 FRONT MASTER CYLINDER 2 Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSEMBLY

4FM-W2645-00-00

Unavailable

2

CYLINDER KIT, MASTER (CLUTCH)

3GM-W0099-00-00

Unavailable

3

ROD, PUSH

3GM-26464-00-00

$18.49

4

BUSH

3GM-26455-00-00

$24.99

5

O-RING (22U)

93210-15566-00

$7.49

6

CIRCLIP

2VN-25866-00-00

$6.99

7

COVER, DUST

3FV-2589A-00-00

$20.99

8

DIAPHRAGM, RESERVOIR

3GK-25854-50-00

$9.99

9

CAP, RESERVOIR

4FM-25852-00-00

$23.99

10

BUSH,DIAPHRAGM

3GK-25855-50-00

$6.99

11

LEVER L

4FM-83912-01-00

Unavailable

12

BOLT, LEVER

3FV-2589F-00-00

$16.49

13

NUT, FLANGE(4MV)

95707-06500-00

$1.23

14

SWITCH

3GM-83980-00-00

$49.99

15

SCREW, FLAT

98707-04016-00

$8.49

16

BOLT

5EB-26332-00-00

Unavailable

17

TANK, RESERVOIR

4FM-25894-00-00

Unavailable

18

BRACKET, MASTER CYLINDER

56A-25867-00-00

Unavailable

19

CLIP, PIPE 1

3PA-24356-00-00

Unavailable

20

HOSE

3GM-2585F-00-00

Unavailable

21

BRACKET

5FL-26296-00-00

Unavailable

22

BOLT,SOCKET HEAD

91314-06014-00

Unavailable

23

HOLDER

4FM-26475-00-00

Unavailable

24

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

25

HOSE, CLUTCH

5FL-26470-00-00

Unavailable

26

BOLT, UNION(3GM)

90401-10159-00

Unavailable

27

WASHER, PLATE(481)

90201-10118-00

Unavailable
