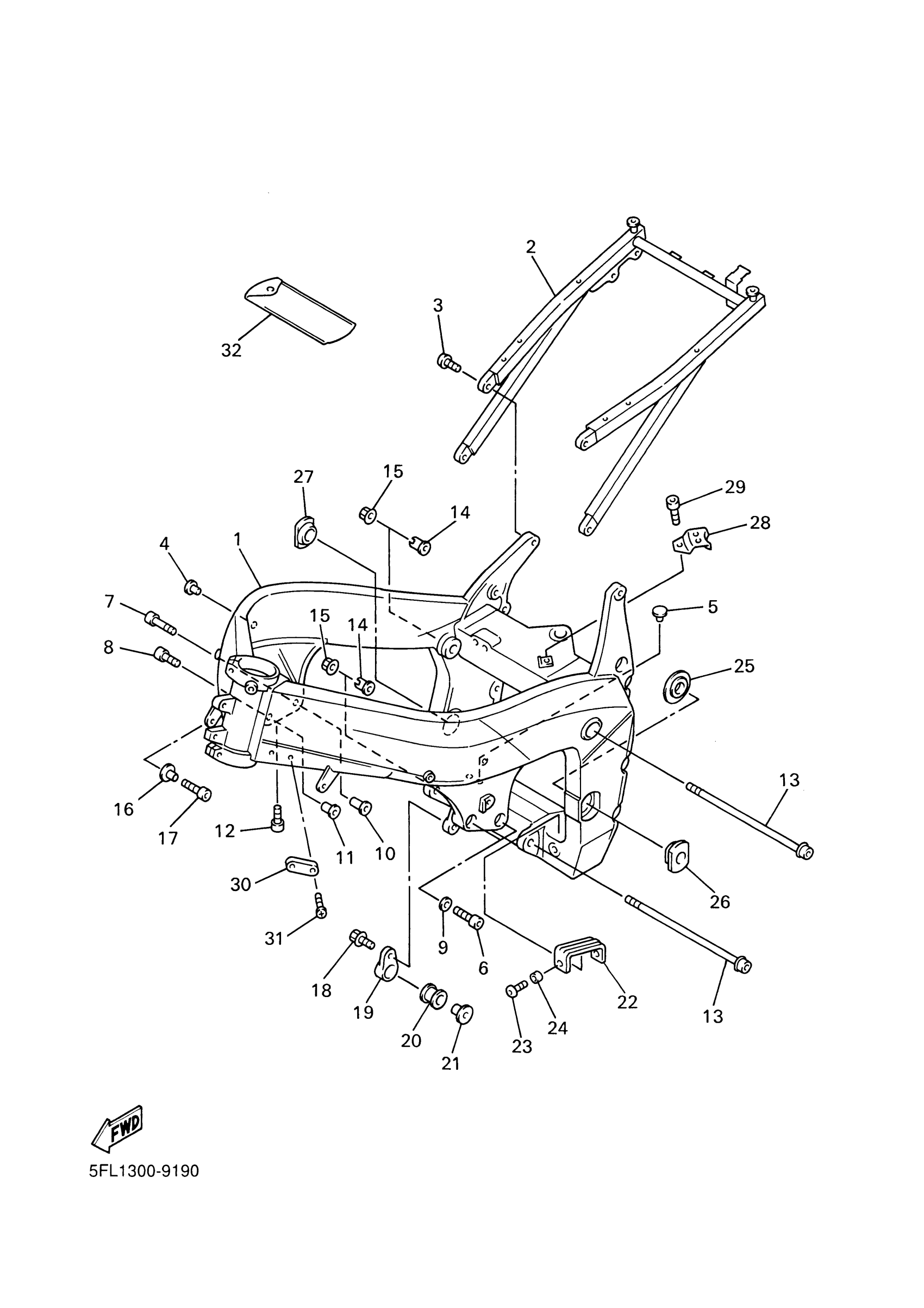

Yamaha YZFR7L (YZFR7) 5FL1 1999 FRAME Diagram
#
Description
Price
1
FRAME COMP.
5FL-21110-00-00
Unavailable
2
REAR FRAME COMP.
5FL-21190-00-00
Unavailable
4
PLUG
90338-08220-00
Unavailable
8
BOLT, SOCKET
91314-10035-00
Unavailable
9
WASHER, PLATE
92990-10600-00
Unavailable
10
COLLAR
90387-11001-00
Unavailable
11
COLLAR
90387-1115V-00
Unavailable
13
BOLT
90109-10001-00
Unavailable
14
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
Unavailable
15
NUT
90179-10002-00
Unavailable
16
COLLAR
90387-0614M-00
Unavailable
17
BOLT,SOCKET
91317-06025-00
Unavailable
18
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
19
STAY, MUFFLER 2
5FL-21446-00-00
Unavailable
20
DAMPER, FOOTREST 2
4XV-27424-00-00
Unavailable
21
COLLAR(3MA)
90387-082W9-00
Unavailable
22
GUIDE, CHAIN
5FL-22187-00-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(1FK)
90110-06102-00
Unavailable
24
COLLAR
90387-06106-00
Unavailable
25
COVER
4FN-2139W-00-00
Unavailable
26
BOSS, REAR ARM (L.H)
5FL-21496-00-00
Unavailable
27
BOSS, REAR ARM (R.H)
5FL-21497-00-00
Unavailable
28
STAY 1
5FL-2116A-00-00
Unavailable
29
BOLT,SOCKET
91317-06014-00
Unavailable
30
STOPPER, STEERING 1
5FL-23432-00-00
Unavailable
31
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
32
TOOL KIT
5FL-28100-00-00
Unavailable
