Description

Price

1

FENDER, FRONT (VIVID RED COCKTAIL 1)

5FL-21511-00-P0

Unavailable

2

SCREW(3XV)

90149-06298-00

$5.60

3

EMBLEM, YAMAHA

99241-00100-00

$4.19

4

FENDER, REAR

5FL-21611-00-00

Unavailable

5

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

6

NUT(1WT)

90179-06520-00

$8.49

7

PLATE

4U5-2176E-00-00

$7.99

8

BRACKET, TAILLIGHT

5FL-2117E-00-00

Unavailable

9

RIVET(4PH)

90269-07077-00

$8.49

10

SCREW, BINDING(2EK)

90154-05042-00

$8.49

11

NUT(1KT)

90179-05523-00

$8.49

12

SEAL

5FL-21669-00-00

Unavailable

13

COVER, REAR FENDER 1

5FL-2163A-00-00

Unavailable

14

RIVET(4PH)

90269-07077-00

$8.49

15

GROMMET

90480-10208-00

Unavailable

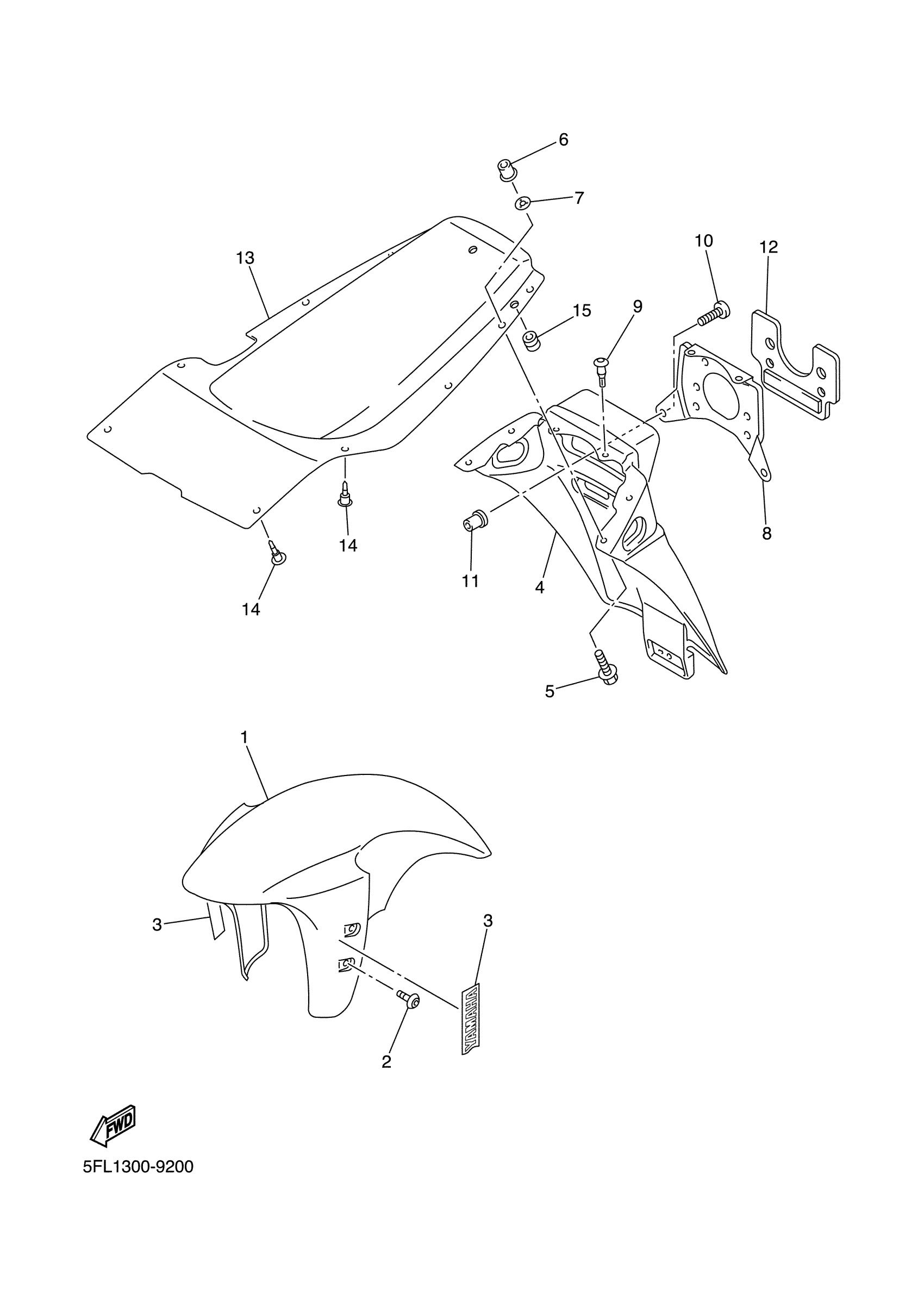

Yamaha YZFR7L (YZFR7) 5FL1 1999 FENDER Diagram

FENDER, FRONT (VIVID RED COCKTAIL 1)

SCREW(3XV)

EMBLEM, YAMAHA

FENDER, REAR

BOLT, WITH WASHER (30X)

NUT(1WT)

PLATE

BRACKET, TAILLIGHT

RIVET(4PH)

SCREW, BINDING(2EK)

NUT(1KT)

SEAL

COVER, REAR FENDER 1

RIVET(4PH)

GROMMET
