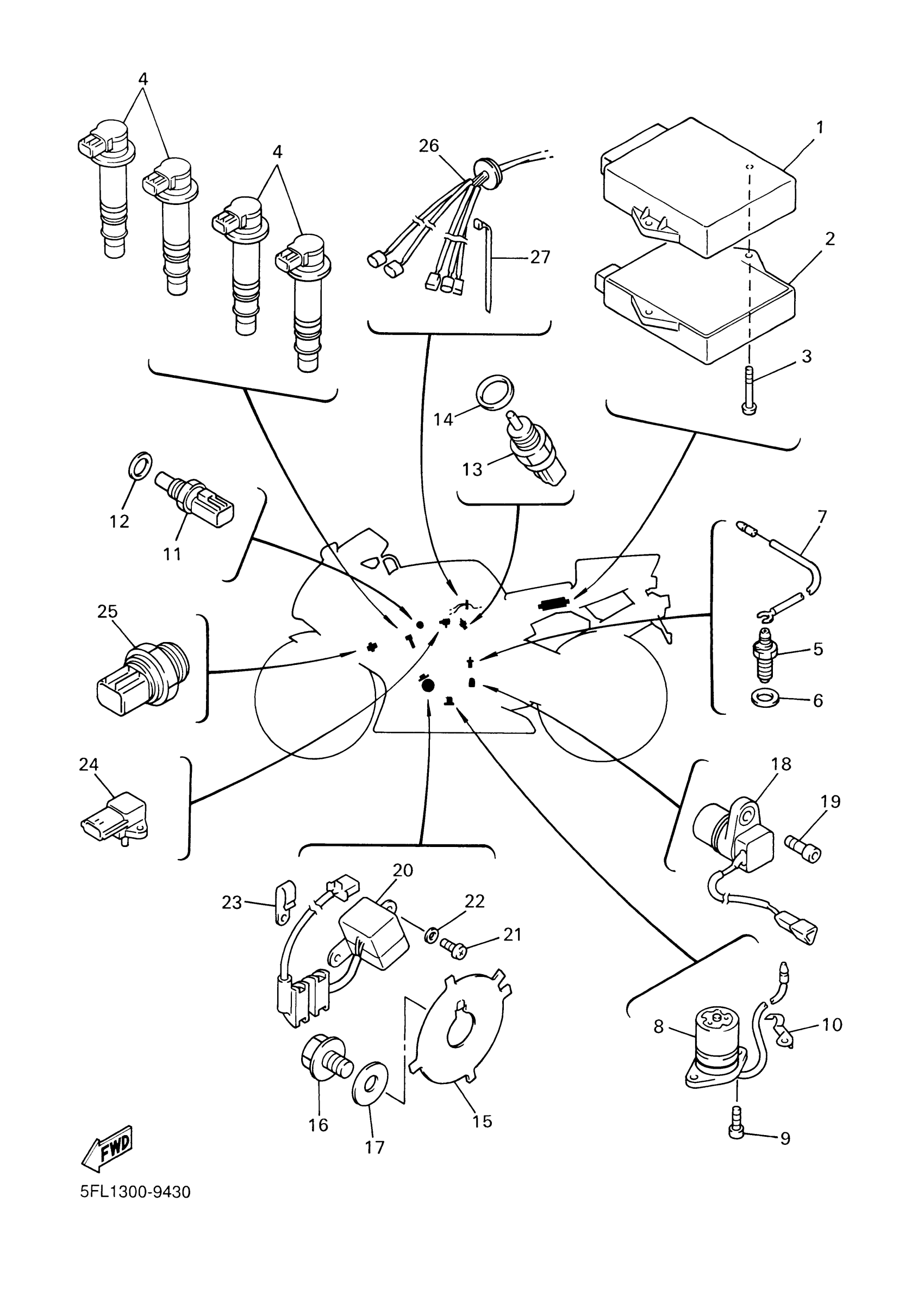

Yamaha YZFR7L (YZFR7) 5FL1 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSEMBLY

5FL-8591A-00-00

Unavailable

2

C.D.I. UNIT ASSEMBLY

5FL-85540-00-00

Unavailable

3

BOLT, BUTTON HEAD

92017-06050-00

$1.64

4

IGNITION COIL ASSEMBLY

5FL-82310-00-00

Unavailable

5

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

WIRE, LEAD

5FL-82541-00-00

Unavailable

8

OIL LEVEL GAUGE ASSEMBLY

5FL-85720-00-00

Unavailable

9

BOLT,SOCKET

91317-06014-00

$9.49

10

CLAMP

90465-08076-00

Unavailable

11

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

12

WASHER, PLATE

90201-12790-00

$9.49

13

THERMOSENSOR ASSY

5FL-85790-00-00

Unavailable

14

GASKET(2GH)

90430-12202-00

$9.49

15

ROTOR

5FL-81673-00-00

Unavailable

16

BOLT, FLANGE

90105-10153-00

Unavailable

17

WASHER, PLATE(1WG)

90201-107K6-00

Unavailable

18

SENSOR, SPEED

5FL-83755-03-00

Unavailable

19

BOLT,SOCKET

91317-06016-00

Unavailable

20

PICK-UP ASSEMBLY

5FL-81670-00-00

Unavailable

21

SCREW, PAN

98517-05012-00

Unavailable

22

WASHER(1RW)

92907-05600-00

Unavailable

23

CLAMP

90465-08054-00

Unavailable

24

SENSOR, PRESSURE

5FL-82380-00-00

Unavailable

25

THERMO SWITCH ASSY

5EB-82560-01-00

Unavailable

26

WIRE, SUB LEAD

5FL-82509-00-00

Unavailable

27

CLAMP(4FM)

90464-15195-00

Unavailable
