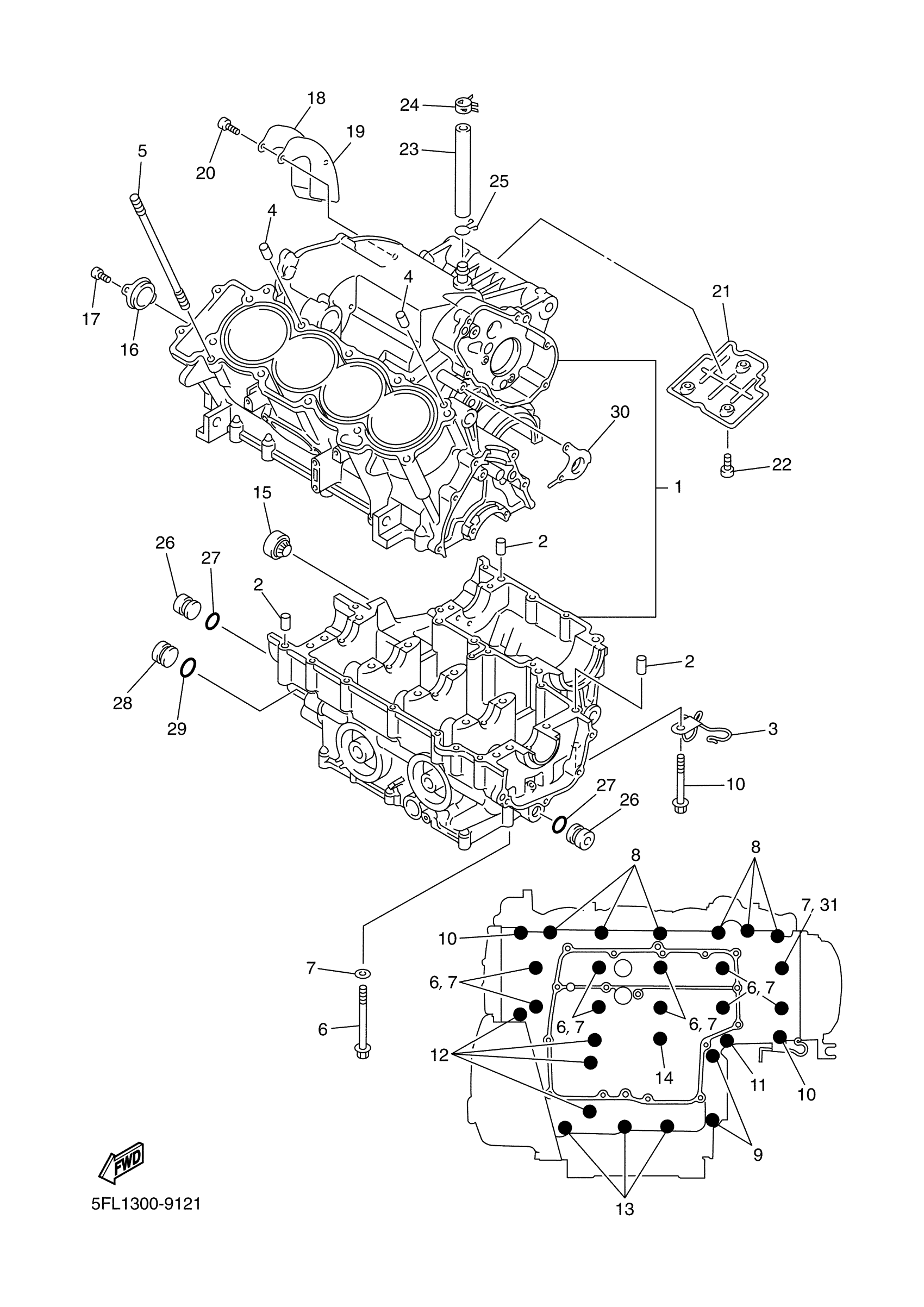

Yamaha YZFR7L (YZFR7) 5FL1 1999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

5FL-15100-00-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

CLAMP

90465-10025-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT, STUD

90116-10619-00

$11.49

6

BOLT, WASHER BASED

90105-093A5-00

$11.49

7

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

8

BOLT, FLANGE

95817-06055-00

$7.49

9

BOLT, FLANGE

95817-08060-00

$3.76

10

BOLT

90109-065G3-00

$9.49

11

BOLT, FLANGE

95817-06060-00

$4.14

12

BOLT, FLANGE

95817-06070-00

$4.72

13

BOLT, FLANGE

95817-06045-00

$8.49

14

BOLT, FLANGE

95814-06050-00

Unavailable

15

GAUGE, LEVEL

2H7-15361-00-00

$97.99

16

PLUG

5FL-15189-00-00

Unavailable

17

BOLT, SOCKET

91317-05010-00

Unavailable

18

PLATE, BREATHER

5FL-11165-00-00

Unavailable

19

GASKET, BREATHER COVER

5FL-11169-00-00

Unavailable

20

BOLT,SOCKET

91317-06012-00

Unavailable

21

PLATE, BREATHER 2

5FL-11145-00-00

Unavailable

22

BOLT,SOCKET

91317-06012-00

Unavailable

23

HOSE

90445-167K1-00

Unavailable

24

CLIP

90468-08104-00

Unavailable

25

CLIP (371)

90467-14015-00

Unavailable

26

PLUG

90338-16262-00

Unavailable

27

O-RING(3LD)

93210-12790-00

Unavailable

28

PLUG

90338-20263-00

Unavailable

29

O-RING (1J7)

93210-16314-00

Unavailable

30

PROTECTER, OIL SEAL

5FL-15185-00-00

Unavailable

31

BOLT

5FL-15187-00-00

Unavailable
