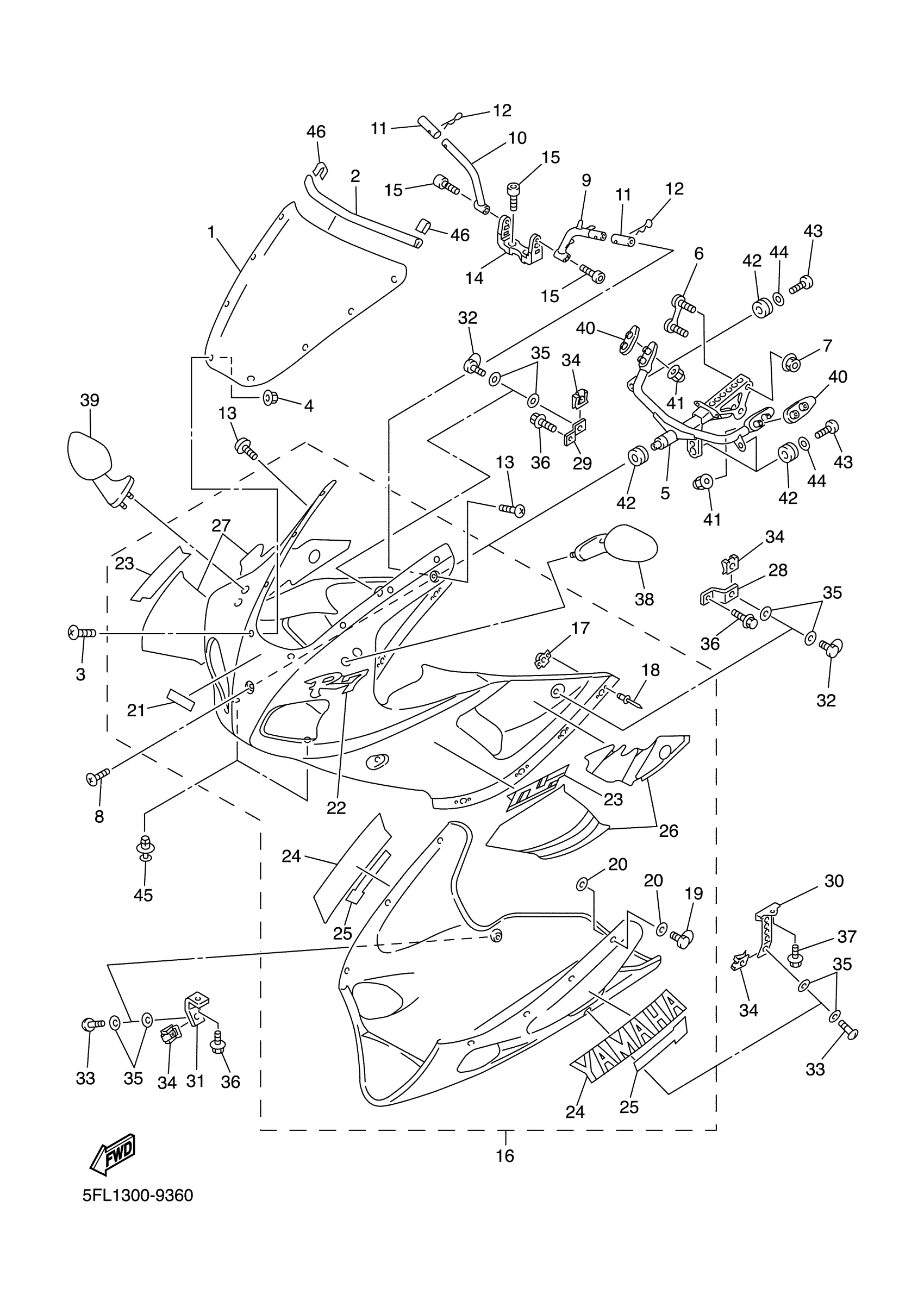

Yamaha YZFR7L (YZFR7) 5FL1 1999 COWLING 1 Diagram
#
1
WINDSHIELD
5FL-28381-00-00
Unavailable
2
MOLE 1
5FL-28345-00-00
Unavailable
5
STAY 1
5FL-28356-00-00
Unavailable
9
STAY, MIRROR 2
5FL-2832W-00-00
Unavailable
10
STAY, MIRROR 1
5FL-2831W-00-00
Unavailable
14
BRACKET 5
5FL-2836H-00-00
Unavailable
16
COWLING ASSEMBLY (VIVID RED COCKTAIL 1) (MAT BLACK 2) (BLUISH WHITE COCKTAIL 1)
5FL-W2838-00-0X
Unavailable
17
PLATE, SPRING
2TK-2177L-00-00
Unavailable
18
RIVET, BLIND (15A)
90267-32071-00
Unavailable
19
HEAD
3FV-28386-00-00
Unavailable
20
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
21
EMBLEM, YAMAHA
99241-00080-00
Unavailable
22
. EMBLEM
5FL-28315-00-00
Unavailable
23
. EMBLEM 1
5EB-2839H-00-00
Unavailable
24
. EMBLEM, YAMAHA
4XV-2153E-00-00
Unavailable
25
. EMBLEM
4XV-28328-40-00
Unavailable
26
. GRAPHIC SET, LOWER COVER 1
5FL-28301-01-00
Unavailable
27
. GRAPHIC SET, LOWER COVER 2
5FL-28303-01-00
Unavailable
28
BRACKET 1
5FL-2836A-00-00
Unavailable
29
BRACKET 2
5FL-2836E-00-00
Unavailable
30
BRACKET 3
5FL-2836F-00-00
Unavailable
31
BRACKET 4
5FL-2836G-00-00
Unavailable
32
HEAD
3FV-28386-00-00
Unavailable
33
HEAD
3XV-28386-00-00
Unavailable
34
PLATE, SPRING
4XV-2177L-01-00
Unavailable
35
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
36
BOLT, FLANGE
95817-06012-00
Unavailable
37
BOLT, FLANGE
95817-06010-00
Unavailable
38
REAR VIEW MIRROR ASSY(LEFT)
4YR-26280-01-00
Unavailable
39
REAR VIEW MIRROR ASSY(RIGHT)
4YR-26290-01-00
Unavailable
40
PLATE, MIRROR FITTING 1
4SV-26298-00-00
Unavailable
41
NUT, CROWN(1FN)
90176-06055-00
Unavailable
42
DAMPER
4XV-83513-00-00
Unavailable
43
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
44
WASHER PLATE 803835240000
90201-05032-00
Unavailable
45
RIVET(4PH)
90269-07077-00
Unavailable
46
TAPE
4FN-28344-00-00
Unavailable
