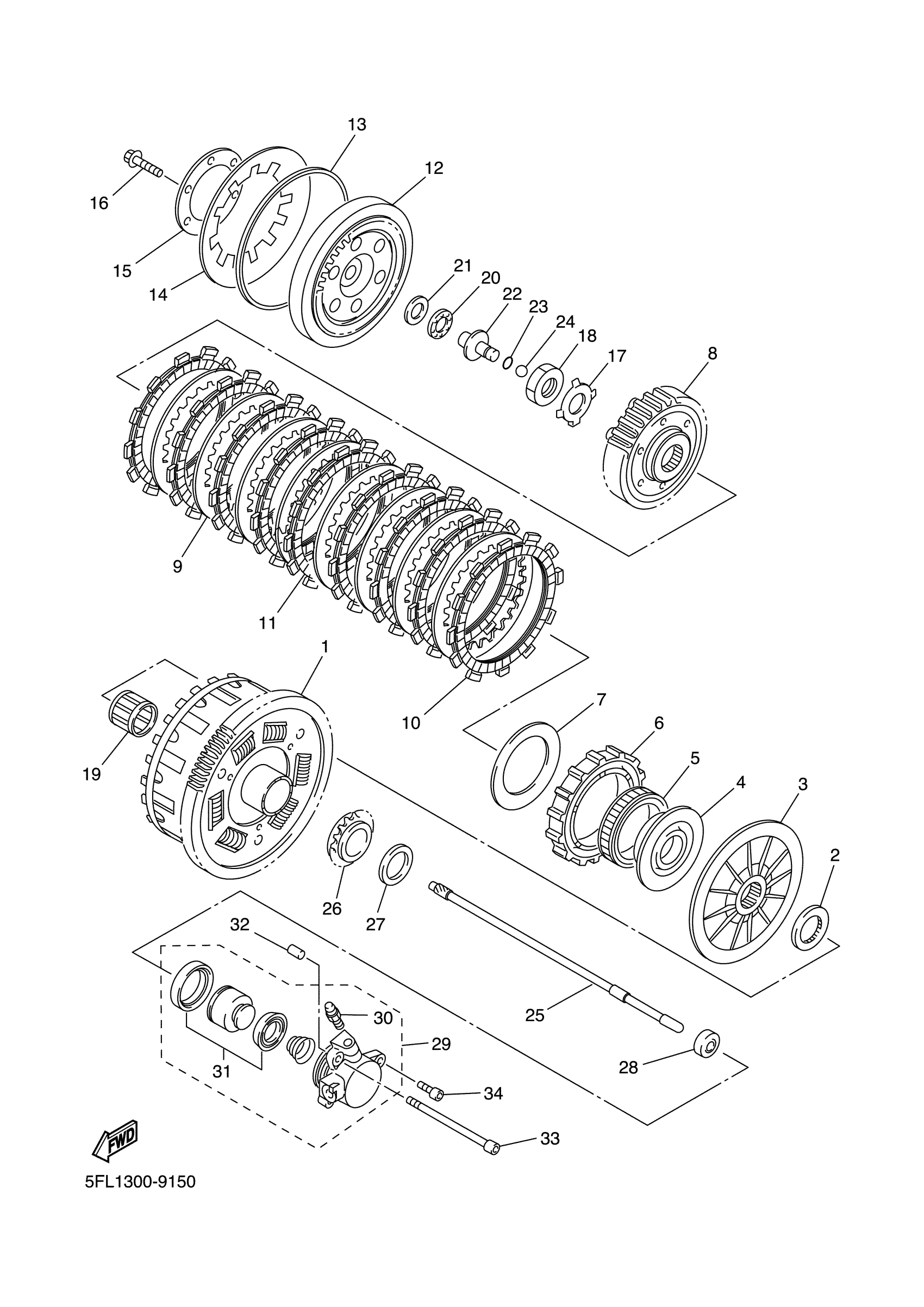

Yamaha YZFR7L (YZFR7) 5FL1 1999 CLUTCH Diagram
#
1
PRIMARY DRIVEN GEAR COMP.
5FL-16150-00-00
Unavailable
2
PLATE, THRUST 1
26H-16154-00-00
Unavailable
3
PLATE, THRUST 1
5FL-16154-00-00
Unavailable
4
BOSS, ONE-WAY INNER
5FL-16171-00-00
Unavailable
5
BEARING, ONE WAY
5FL-16664-00-00
Unavailable
6
BOSS, ONE-WAY OUTER
5FL-16177-00-00
Unavailable
7
WASHER, THRUST 1
5FL-16113-00-00
Unavailable
8
BOSS, CLUTCH
5FL-16371-00-00
Unavailable
11
PLATE, FRICTION
5FL-16321-00-00
Unavailable
12
PLATE, PRESSURE 1
5FL-16351-00-00
Unavailable
14
SPRING, CLUTCH 2
5FL-16334-00-00
Unavailable
15
PLATE, PRESSURE 2
5FL-16352-00-00
Unavailable
16
BOLT, FLANGE
95817-06025-00
Unavailable
17
WASHER, LOCK (26H)
90215-25218-00
Unavailable
18
NUT (26H)
90170-20323-00
Unavailable
19
BEARING
93310-228S5-00
Unavailable
20
BEARING, THRUST (713)
93340-21505-00
Unavailable
21
WASHER, PLATE (5G3)
90201-154E9-00
Unavailable
22
ROD, PUSH 1
3GM-16356-00-00
Unavailable
23
O-RING (26H)
93210-06632-00
Unavailable
24
BALL (498)
93511-32027-00
Unavailable
25
ROD, PUSH 2
5FL-16357-00-00
Unavailable
26
SPROCKET, DRIVE
5FL-13354-00-00
Unavailable
27
PLATE, THRUST 1
4XV-16154-00-00
Unavailable
28
OIL SEAL(12E)
93109-08061-00
Unavailable
29
PUSH LEVER COMP.
5FL-16381-00-00
Unavailable
30
BLEED SCREW KIT
36Y-W0048-00-00
Unavailable
31
PUSH LEVER SEAL KIT
26H-W0098-00-00
Unavailable
32
PIN, DOWEL
99530-08012-00
Unavailable
33
BOLT, SOCKET
91314-06090-00
Unavailable
34
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
