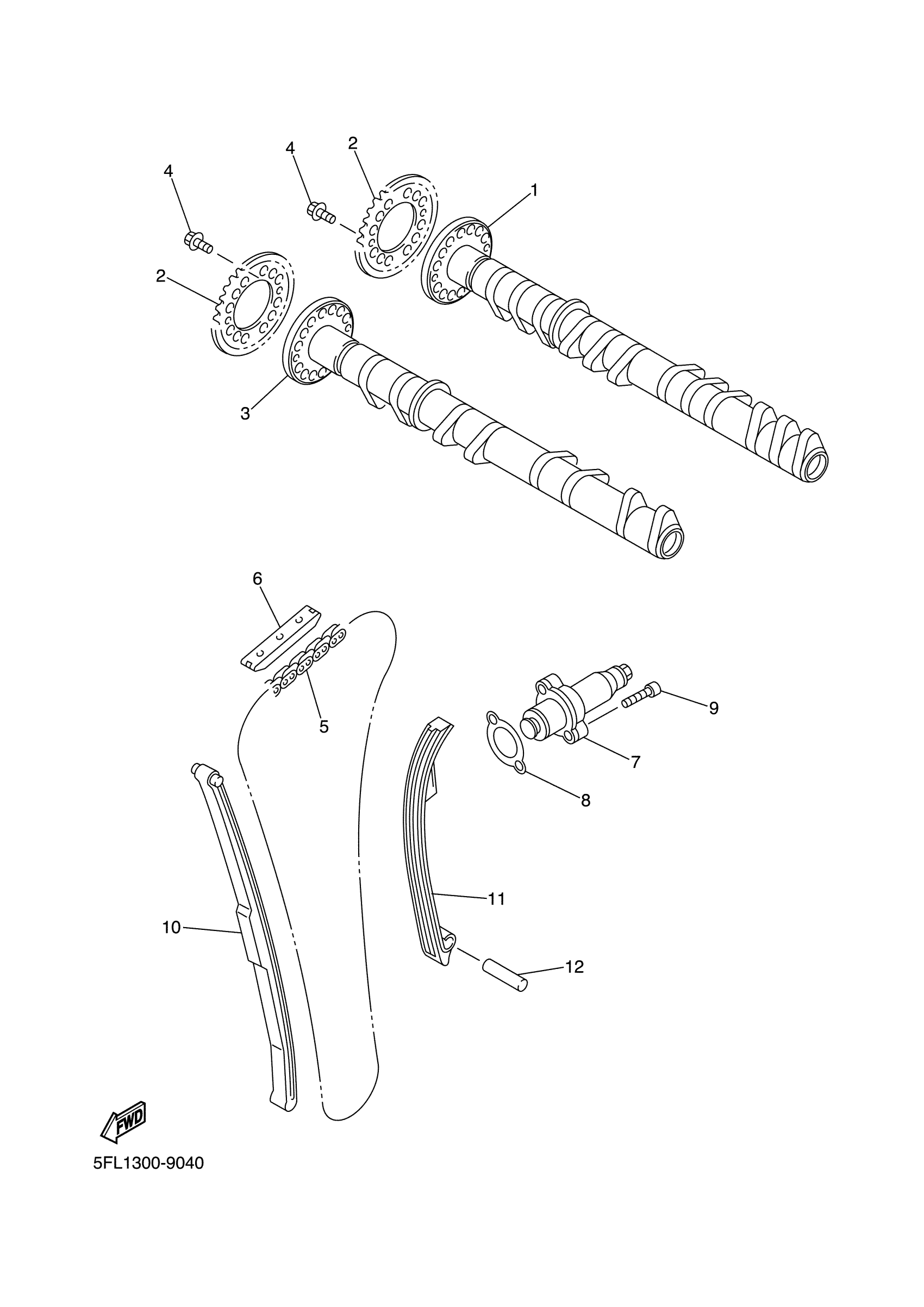

Yamaha YZFR7L (YZFR7) 5FL1 1999 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5FL-12171-00-00

Unavailable

2

SPROCKET, CAM CHAIN

5FL-12176-00-00

Unavailable

3

CAMSHAFT 2

5FL-12181-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN

94581-86100-00

Unavailable

6

GUIDE, STOPPER 2

5FL-12241-00-00

Unavailable

7

TENSIONER ASSY, CAM CHAIN

4XV-12210-00-00

$207.99

8

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

9

BOLT,SOCKET HEAD

91314-06025-00

$8.49

10

DAMPER, CHAIN 1

5FL-12251-00-00

Unavailable

11

DAMPER, CHAIN 2

5FL-12252-00-00

Unavailable

12

PIN, DOWEL (8V8)

93607-44190-00

$16.99
