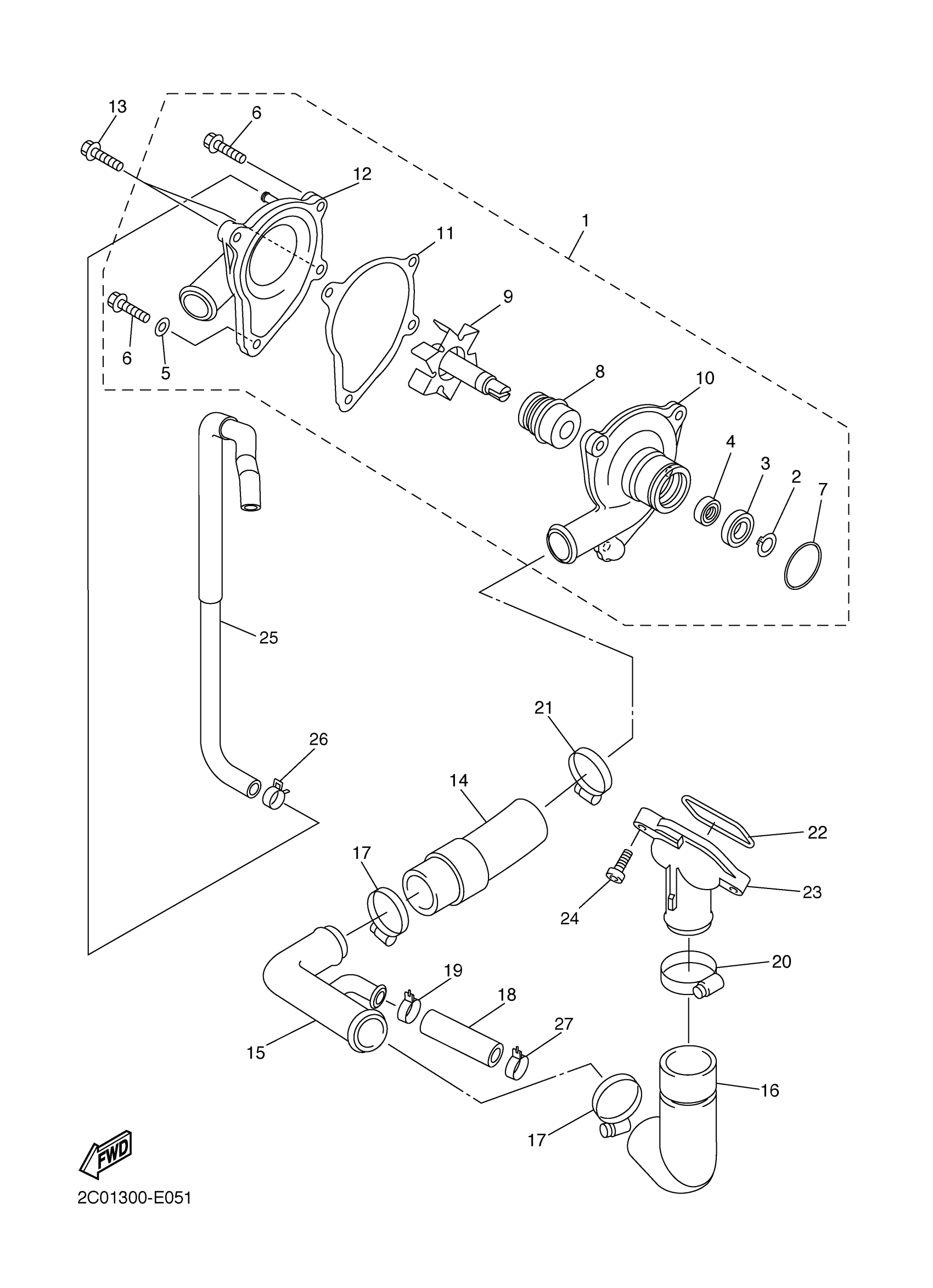

Yamaha YZFR6ZW (YZFR6) 13SR1 2010 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

2C0-12420-00-00

$285.99

2

CIRCLIP(10W)

99009-10400-00

$4.73

3

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

4

OIL SEAL (J10)

93101-10090-00

$8.49

5

GASKET 256113960000

90430-06014-00

Unavailable

6

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

7

O-RING (626)

93210-33133-00

$2.92

8

SEAL, MECHANICAL

2C0-12438-00-00

Unavailable

9

IMPELLER SHAFT ASSY

2C0-12450-00-00

$58.99

10

HOUSING, WATER PUMP

2C0-12421-00-00

$84.99

11

GASKET, HOUSING COVER 2

2C0-12428-01-00

$12.99

12

COVER, HOUSING

2C0-W1242-00-00

$74.99

13

BOLT, SOCKET

91314-06035-00

$8.49

14

HOSE 1

2C0-12576-00-00

$22.99

15

JOINT, HOSE 1

2C0-12581-00-00

$74.99

16

HOSE 2

2C0-12577-00-00

Unavailable

17

HOSE CLAMP ASSY

90450-35001-00

Unavailable

18

HOSE 5

2C0-12588-00-00

Unavailable

19

CLIP

90467-200A0-00

Unavailable

20

HOSE CLAMP ASSY

90450-38003-00

Unavailable

21

HOSE CLAMP ASSY

90450-32003-00

Unavailable

22

O-RING

93210-46001-00

Unavailable

23

JOINT 1

5EB-12469-00-00

Unavailable

24

BOLT, FLANGE

95022-06020-00

Unavailable

25

HOSE 1

2C0-1243A-00-00

Unavailable

26

CLIP(3BM)

90467-10135-00

Unavailable

27

CLIP

90467-200A0-00

Unavailable
