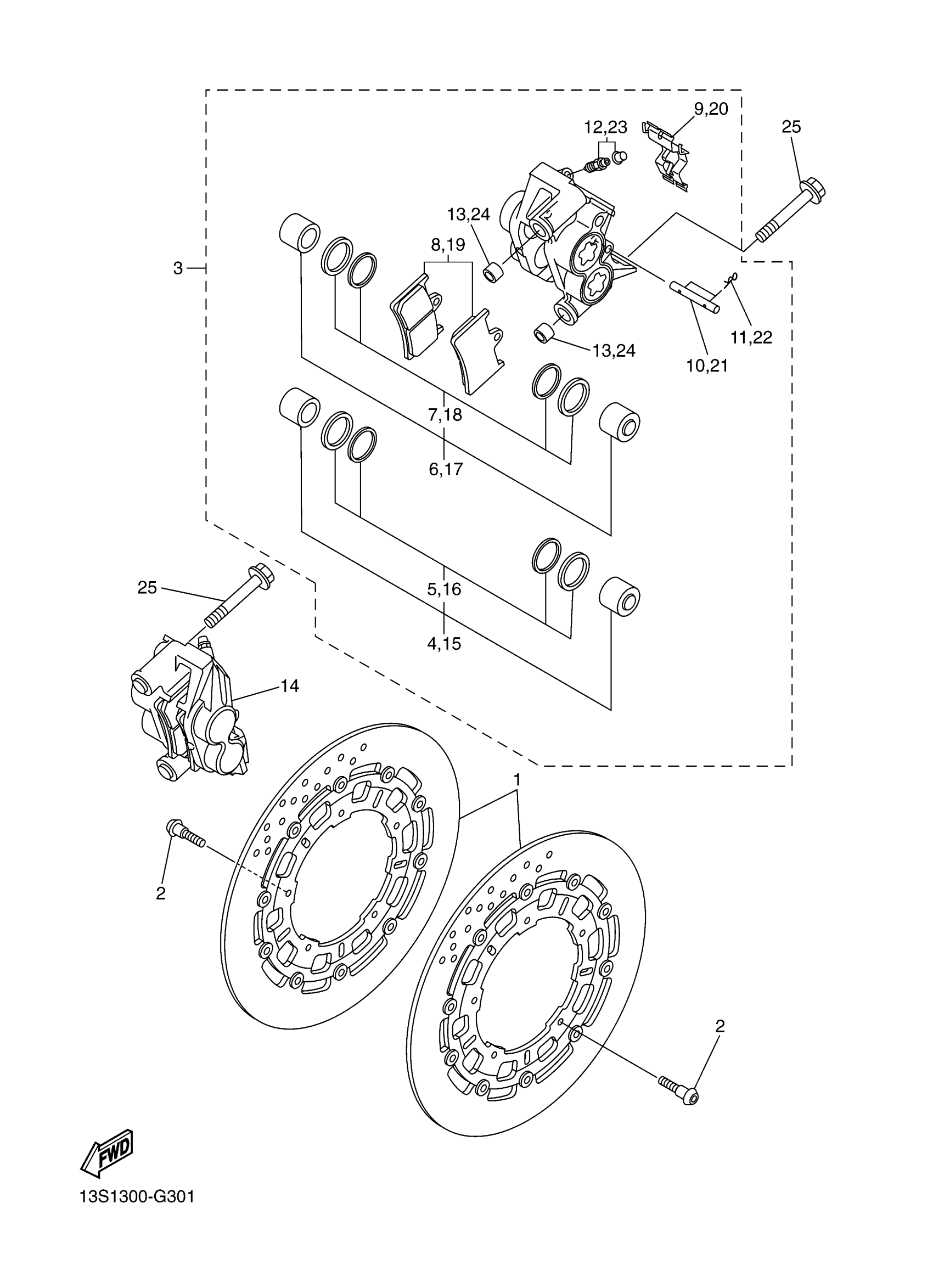

Yamaha YZFR6ZW (YZFR6) 13SR1 2010 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

13S-2581T-00-00

$259.34

2

SCREW

90149-06045-00

$6.18

3

CALIPER ASSY (LEFT)

13S-2580T-10-00

Unavailable

4

PISTON ASSY, CALIP

5PW-25802-10-00

$90.70

5

CALIPER SEAL KIT

5PW-25803-10-00

$14.23

6

PISTON ASSY, CALIP

5PW-25802-00-00

$80.55

7

CALIPER SEAL KIT

5PW-25803-00-00

$13.97

8

BRAKE PAD KIT

2C0-25805-00-00

$50.78

9

SUPPORT, PAD

13S-25919-00-00

$20.44

10

PIN, PAD

4SV-25924-00-00

$34.81

11

CLIP, PAD PIN

3GM-25925-00-00

$9.15

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

PIN, KNOCK

5VY-2583B-00-00

Unavailable

14

CALIPER ASSY (RIGHT)

13S-2580U-10-00

Unavailable

15

PISTON ASSY, CALIP

5PW-25802-10-00

$90.70

16

CALIPER SEAL KIT

5PW-25803-10-00

$14.23

17

PISTON ASSY, CALIP

5PW-25802-00-00

$80.55

18

CALIPER SEAL KIT

5PW-25803-00-00

$13.97

19

BRAKE PAD KIT

2C0-25805-00-00

$50.78

20

SUPPORT, PAD

13S-25919-00-00

$20.44

21

PIN, PAD

4SV-25924-00-00

$34.81

22

CLIP, PAD PIN

3GM-25925-00-00

$9.15

23

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

24

PIN, KNOCK

5VY-2583B-00-00

Unavailable

25

BOLT, UNION

90401-10012-00

Unavailable
