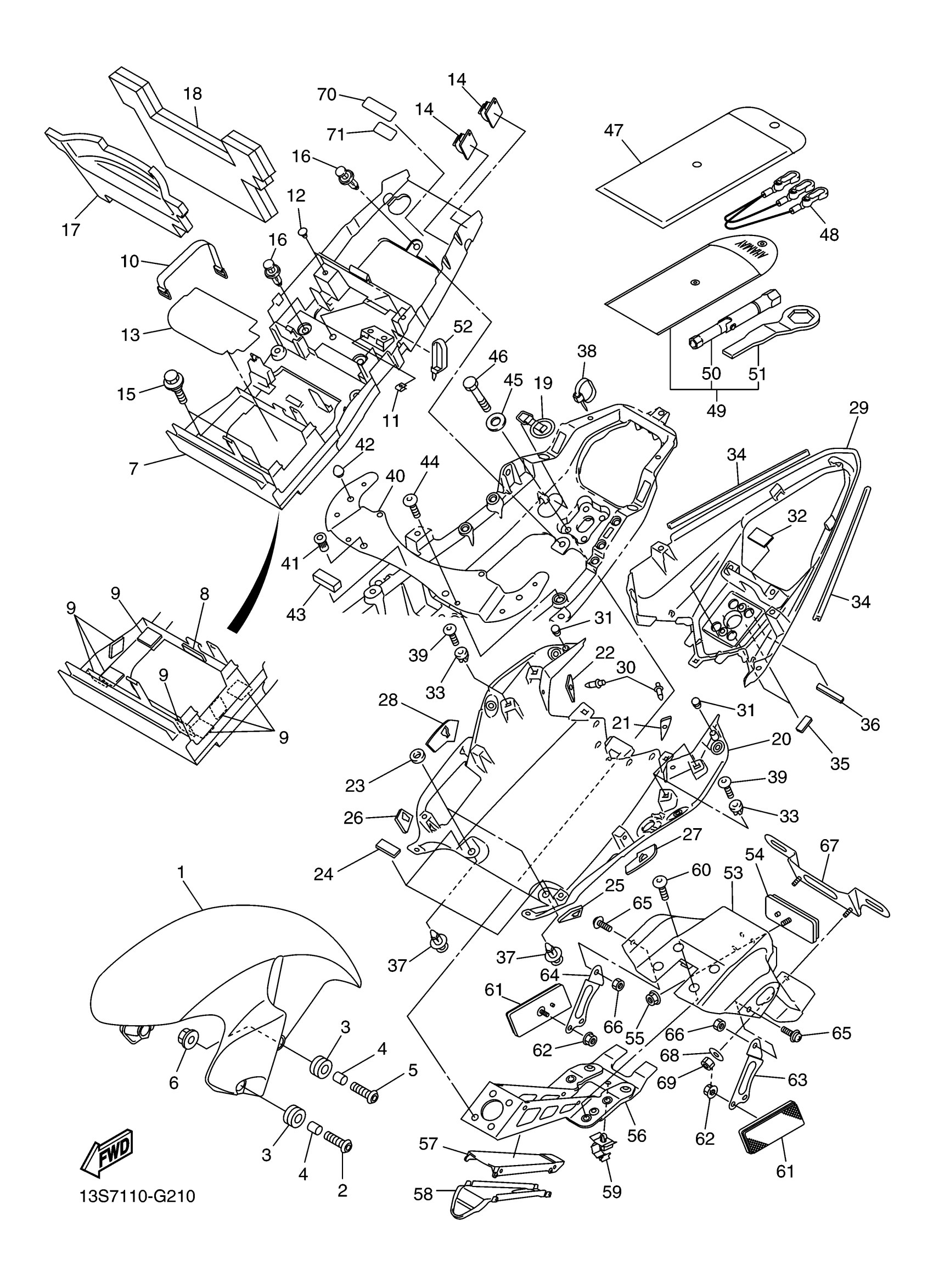

Yamaha YZFR6ZW (YZFR6) 13SR1 2010 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2C0-21511-01-P2

$192.99

2

BOLT

90111-06043-00

$4.46

3

GROMMET

90480-14003-00

$8.49

4

COLLAR

90387-06057-00

$8.49

5

BOLT

90111-06030-00

$4.41

6

NUT, FLANGE

95702-06500-00

$2.39

7

BOX, BATTERY 1

13S-8212B-00-00

Unavailable

8

DAMPER 2

51Y-21639-00-00

$6.99

9

DAMPER

13S-21649-00-00

Unavailable

10

BAND, BATTERY

133-82131-00-00

$27.99

11

NUT, SPRING(47R)

90183-04039-00

$7.49

12

PLUG(1NL)

90338-07180-00

$7.49

13

SEAT BTRY. ASSY 1

13S-821A1-00-00

Unavailable

14

CLAMP

90464-13004-00

Unavailable

15

BOLT

90109-06171-00

Unavailable

16

RIVET

90269-07010-00

Unavailable

17

PROTECTOR

13S-21652-00-00

Unavailable

18

DAMPER PLATE ASSY

13S-24140-00-00

Unavailable

19

BAND, TOOL

13S-21376-00-00

Unavailable

20

FENDER, REAR

13S-21611-00-P3

Unavailable

21

SEAT

13S-2172P-00-00

Unavailable

22

SEAT

13S-2173P-00-00

Unavailable

23

SEAL 2

13S-21735-00-00

Unavailable

24

DAMPER, PLATE

90520-02014-00

Unavailable

25

SEAL

13S-21669-00-00

Unavailable

26

SEAL, 2

13S-216A2-00-00

Unavailable

27

SEAL, 3

13S-216A3-00-00

Unavailable

28

SEAL, 4

13S-216A4-00-00

Unavailable

29

FENDER 2

13S-2162R-00-P3

Unavailable

30

RIVET

90269-06001-00

Unavailable

31

PLUG(1NL)

90338-07180-00

$7.49

32

PLATE 1

5GM-27445-00-00

Unavailable

33

GROMMET

90480-08005-00

Unavailable

34

SEAL 1

13S-21732-00-00

Unavailable

35

SEAL 1

13S-21575-00-00

Unavailable

36

SEAL 4

13S-2173N-00-00

Unavailable

37

RIVET

90269-07010-00

Unavailable

38

CLAMP(4FM)

90464-15195-00

Unavailable

39

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

40

BRACKET

13S-21131-00-00

Unavailable

41

NUT

90179-06010-00

Unavailable

42

PLUG

90338-07018-00

Unavailable

43

DAMPER

5YT-24665-00-00

Unavailable

44

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

45

WASHER, SPECIAL 1

13S-21615-00-00

Unavailable

46

BOLT, HEXAGON

97017-06025-00

Unavailable

47

TOOL KIT

2C0-28100-00-00

Unavailable

48

HELMET HANGER ASSY

2C0-21370-00-00

Unavailable

49

TOOL KIT 2

2C0-28110-01-00

Unavailable

50

BOX, SPARK PLUG

4XV-2814F-00-00

Unavailable

51

SPANNER, SPECIAL

4FM-28135-00-00

Unavailable

52

CLAMP (6E5)

90465-13M11-00

Unavailable

53

GUARD, MUD

2C0-21629-11-00

Unavailable

54

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

55

NUT, S/L FLANGE

95607-05200-00

Unavailable

56

REAR STAY COMP.

13S-21640-00-00

Unavailable

57

COVER, REAR FENDER 1

2C0-2163A-00-00

Unavailable

58

COVER, REAR FENDER 2

2C0-2163E-00-00

Unavailable

59

CLAMP(4NX)

90464-14228-00

Unavailable

60

BOLT

90109-06182-00

Unavailable

61

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

62

NUT, FLANGE

95702-05500-00

Unavailable

63

BRACKET, REAR STAY

2C0-21688-00-00

Unavailable

64

BRACKET, REAR STAY 2

2C0-21689-00-00

Unavailable

65

SCREW, WITH WASHER

90159-06011-00

Unavailable

66

NUT, SELF-LOCKING

95617-06100-00

Unavailable

67

BRACKET, LICENSE

5MT-84751-00-00

Unavailable

68

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

69

NUT, SELF-LOCKING

95617-06100-00

Unavailable

70

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

71

LABEL, CAUTION

3TB-24877-A1-00

Unavailable
