Description

Price

1

COVER 7

13S-2117V-00-P3

Unavailable

2

GROMMET

90480-12613-00

$24.99

3

COLLAR(36Y)

90387-067K8-00

$7.49

4

GROMMET

90480-14003-00

$8.49

5

COLLAR

90387-06057-00

$8.49

6

NUT, SPRING

90183-050A6-00

$8.49

7

PLUG (13K)

90338-06134-00

$8.49

8

BOLT

90111-05003-00

$8.49

9

WASHER, PLATE(1KT)

90202-05180-00

$10.49

10

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

11

BOLT

90111-06040-00

$4.29

12

COVER 8

13S-2117W-00-P3

$229.99

13

GROMMET

90480-12613-00

$24.99

14

COLLAR(36Y)

90387-067K8-00

$7.49

15

GROMMET

90480-14003-00

$8.49

16

COLLAR

90387-06057-00

$8.49

17

NUT, SPRING

90183-050A6-00

$8.49

18

PLUG (13K)

90338-06134-00

$8.49

19

CLAMP

90464-20014-00

Unavailable

20

BOLT

90111-05003-00

$8.49

21

WASHER, PLATE(1KT)

90202-05180-00

$10.49

22

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

23

BOLT

90111-06040-00

$4.29

24

COVER, LOWER

13S-28385-00-P1

Unavailable

25

NUT, SPRING

90183-050A6-00

$8.49

26

GROMMET

90480-14003-00

$8.49

27

COLLAR

90387-06057-00

$8.49

28

SEAT 1

13S-2838G-00-00

Unavailable

29

DAMPER, LOCATING 2

13S-2836U-00-00

Unavailable

30

BOLT

90111-06040-00

$4.29

31

BOLT

90111-05003-00

$8.49

32

WASHER, PLATE(1KT)

90202-05180-00

$10.49

33

PANEL ASSY 1

13S-W283U-00-P9

Unavailable

34

GRAPHIC, 1

13S-28391-D0-00

Unavailable

35

COVER 1

13S-28219-00-00

Unavailable

36

GROMMET

90480-14003-00

$8.49

37

COLLAR

90387-06057-00

$8.49

38

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

39

NUT, SPRING

90183-050A6-00

$8.49

40

DAMPER 1

13S-28415-00-00

Unavailable

41

DAMPER, LOCATING 3

13S-24183-00-00

Unavailable

42

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

43

RIVET

90269-07007-00

Unavailable

44

BOLT

90111-05003-00

$8.49

45

WASHER, PLATE(1KT)

90202-05180-00

$10.49

46

BOLT

90111-06040-00

$4.29

47

GUIDE, AIR 1

13S-2137U-00-00

Unavailable

48

GUIDE, AIR 3

13S-2137K-01-00

Unavailable

49

SCREW, TAPPING

97702-50016-00

Unavailable

50

GROMMET(4DN)

90480-01558-00

Unavailable

51

DAMPER 1

13S-28217-00-00

Unavailable

52

RIVET

90269-06008-00

Unavailable

53

RIVET

90269-06081-00

Unavailable

54

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

55

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

56

COVER, UNDER

13S-28395-00-P1

Unavailable

57

NUT, SPRING

90183-050A6-00

$8.49

58

GROMMET

90480-14003-00

$8.49

59

COLLAR

90387-06057-00

$8.49

60

SEAT 2

13S-2848K-00-00

Unavailable

61

DAMPER 10

13S-2847R-00-00

Unavailable

62

BOLT

90111-06040-00

$4.29

63

BOLT

90111-05003-00

$8.49

64

PANEL ASSY 2

13S-W283V-00-P9

Unavailable

65

. GRAPHIC, 2 (BLACK METALLIC X)

13S-28392-D0-00

Unavailable

66

COVER 2

13S-28229-00-00

Unavailable

67

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

68

NUT, SPRING

90183-050A6-00

$8.49

69

RIVET

90269-07007-00

Unavailable

70

BOLT

90111-05003-00

$8.49

71

WASHER, PLATE(1KT)

90202-05180-00

$10.49

72

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

73

BOLT

90109-06207-00

Unavailable

74

WASHER, PLATE

90202-10024-00

Unavailable

75

BRACKET 4

13S-2836G-00-00

Unavailable

76

NUT

90179-06059-00

Unavailable

77

BOLT, FLANGE

95817-06014-00

Unavailable

78

GUIDE, AIR 2

13S-2137V-00-00

Unavailable

79

GUIDE, AIR 4

13S-2137L-01-00

Unavailable

80

SCREW, TAPPING

97702-50016-00

Unavailable

81

GROMMET(4DN)

90480-01558-00

Unavailable

82

DAMPER 1

13S-28217-00-00

Unavailable

83

RIVET

90269-06008-00

Unavailable

84

RIVET

90269-06081-00

Unavailable

85

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

86

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

87

PANEL, INNER 2

13S-2836L-00-00

Unavailable

88

RIVET

90269-06008-00

Unavailable

89

RIVET

90269-06002-00

Unavailable

90

PANEL, INNER 3

13S-2836M-00-00

Unavailable

91

RIVET

90269-06008-00

Unavailable

92

RIVET

90269-06002-00

Unavailable

93

RIVET

90269-06008-00

Unavailable

94

EMBLEM 3D

13S-2839B-00-00

Unavailable

95

EMBLEM 3D

13S-2839B-00-00

Unavailable

96

EMBLEM, YAMAHA

4C8-2153E-10-00

Unavailable

97

EMBLEM, YAMAHA

4C8-2153E-10-00

Unavailable

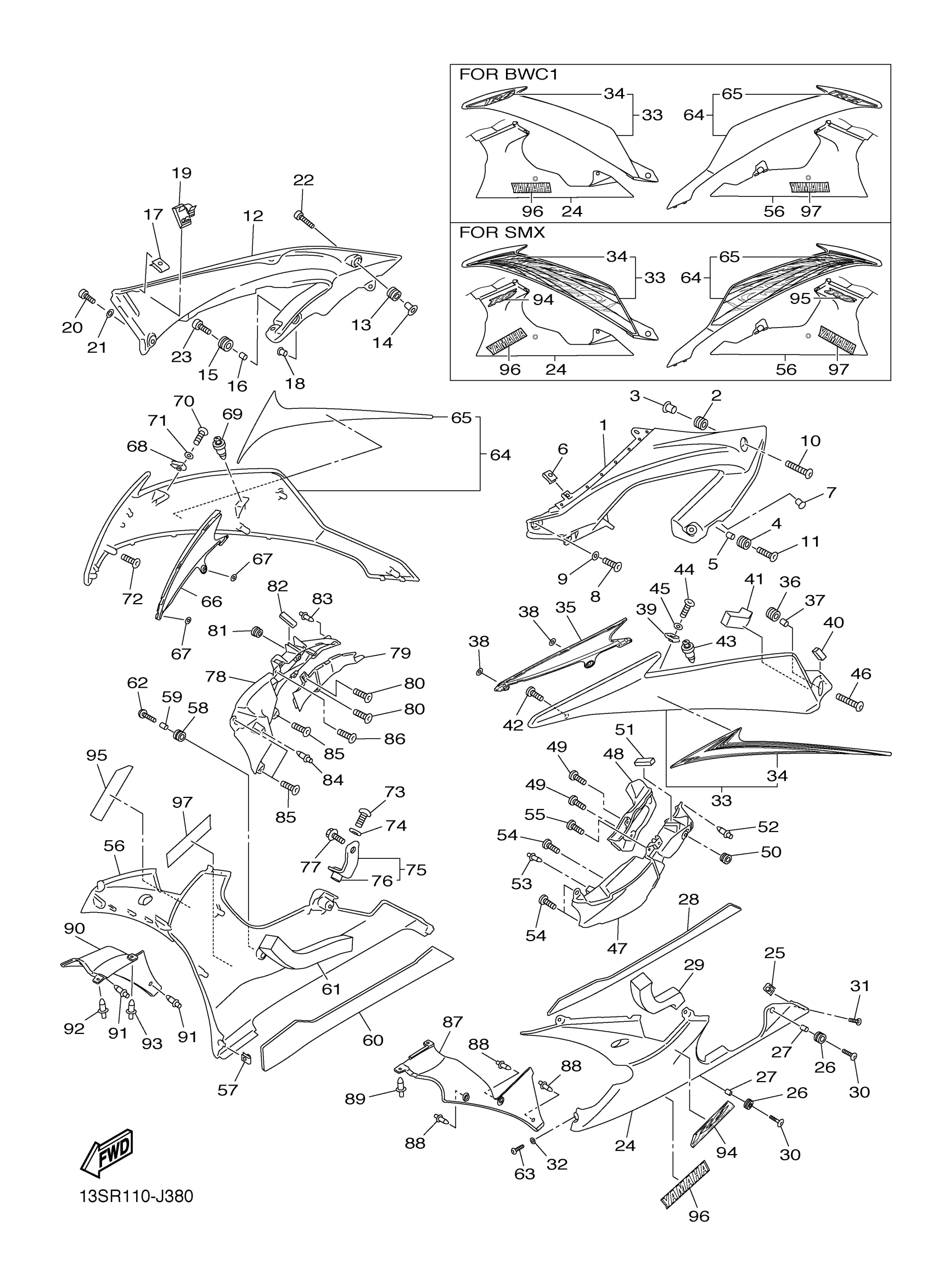

Yamaha YZFR6ZW (YZFR6) 13SR1 2010 COWLING 2 Diagram
