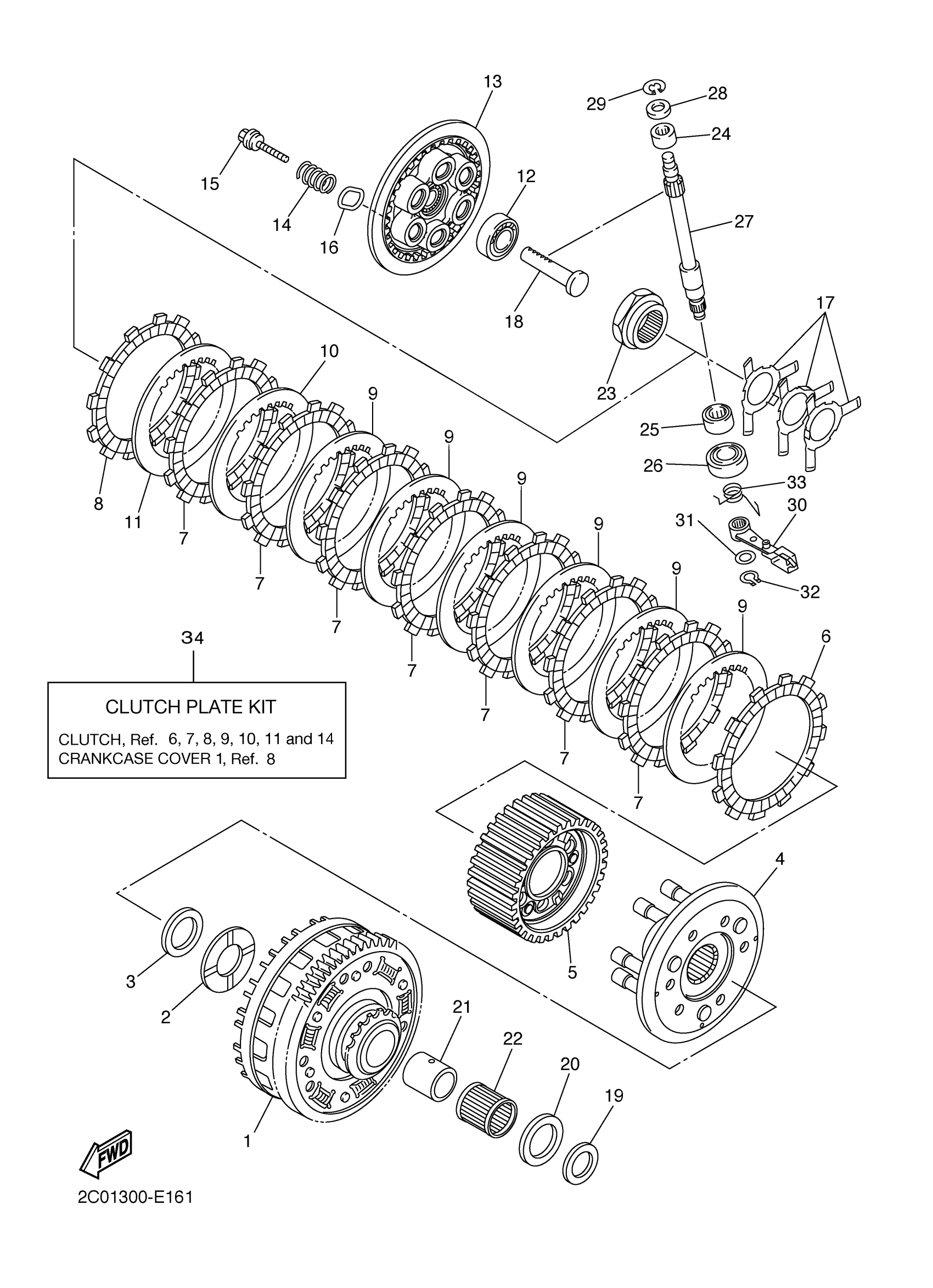

Yamaha YZFR6ZW (YZFR6) 13SR1 2010 CLUTCH Diagram
#
3
WASHER, CONICAL SPRING
90208-25002-00
Unavailable
4
PRESSURE PLATE ASSY 2
2C0-16360-00-00
Unavailable
5
CLUTCH BOSS ASSY
2C0-16370-00-00
Unavailable
8
PLATE, FRICTION
4FN-16321-00-00
Unavailable
10
PLATE, CLUTCH 1
168-16324-10-00
Unavailable
11
PLATE, CLUTCH 1
168-16324-10-00
Unavailable
13
PLATE, PRESSURE 1
2C0-16351-00-00
Unavailable
14
SPRING, COMPRESSION
90501-220A2-00
Unavailable
15
SCREW, WITH WASHER
90159-06024-00
Unavailable
16
PLATE, SEAT
2C0-16384-00-00
Unavailable
17
SPRING
13S-16539-00-00
Unavailable
18
ROD, PUSH 1
2C0-16356-00-00
Unavailable
19
PLATE, THRUST 2
2C0-16164-00-00
Unavailable
20
PLATE, THRUST 2
1AE-16164-00-00
Unavailable
21
COLLAR
90387-25024-00
Unavailable
22
BEARING, CYLINDRICAL(1FN)
93310-340N8-00
Unavailable
23
NUT, LOCK
2C0-16377-00-00
Unavailable
24
BEARING
93317-11096-00
Unavailable
25
BEARING
93315-21570-00
Unavailable
26
OIL SEAL (3X3)
93102-15212-00
Unavailable
27
AXLE, PUSH LEVER
2C0-16382-00-00
Unavailable
28
WASHER(6TA)
92907-08600-00
Unavailable
29
CIRCLIP
99080-07600-00
Unavailable
30
PUSH LEVER ASSY
2C0-16340-00-00
Unavailable
31
WASHER, PLATE
90201-10029-00
Unavailable
32
CIRCLIP(10W)
99009-10400-00
Unavailable
33
SPRING, TORSION
90508-16052-00
Unavailable
34
CLUTCH PLATE KIT
2C0-W001G-00-00
Unavailable
