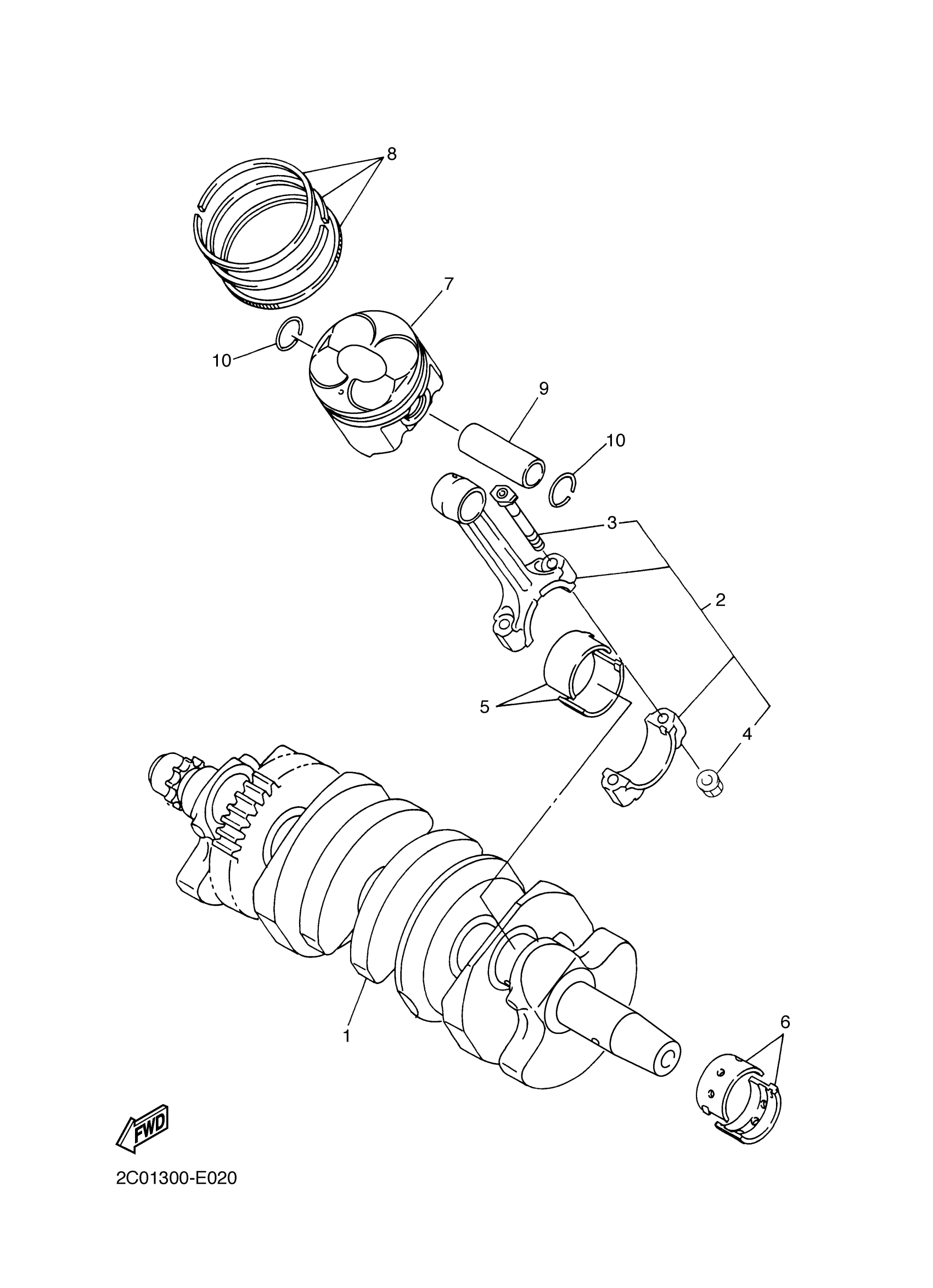

Yamaha YZFR6YW (YZFR6) 13SE1 2009 CRANKSHAFT PISTON Diagram

CRANKSHAFT

2C0-11411-00-00

$813.99

CONNECTING ROD ASSY

13S-11650-01-00

$220.99

BOLT, CONNECTING ROD

2C0-11654-00-00

$8.99

NUT

90179-07001-00

$5.60

PLANE BEARING, CONNECTING ROD

13S-11656-00-00

$17.49

PLANE BEARING, CONNECTING ROD

13S-11656-10-00

$17.49

PLANE BEARING, CONNECTING ROD

13S-11656-20-00

$17.49

PLANE BEARING, CONNECTING ROD

13S-11656-30-00

$16.49

PLANE BEARING, CRANKSHAFT 1

13S-11416-00-00

$17.49

PLANE BEARING, CRANKSHAFT 1

13S-11416-10-00

$17.49

PLANE BEARING, CRANKSHAFT 1

13S-11416-20-00

$17.49

PLANE BEARING, CRANKSHAFT 1

13S-11416-30-00

$17.49

PLANE BEARING, CRANKSHAFT 1

13S-11416-A0-00

$16.49

PISTON (STD)

13S-11631-00-00

$127.99

PISTON RING SET (STD)

2C0-11603-00-00

$66.99

PIN, PISTON

2C0-11633-00-00

Unavailable

CIRCLIP

93450-16159-00

Unavailable
