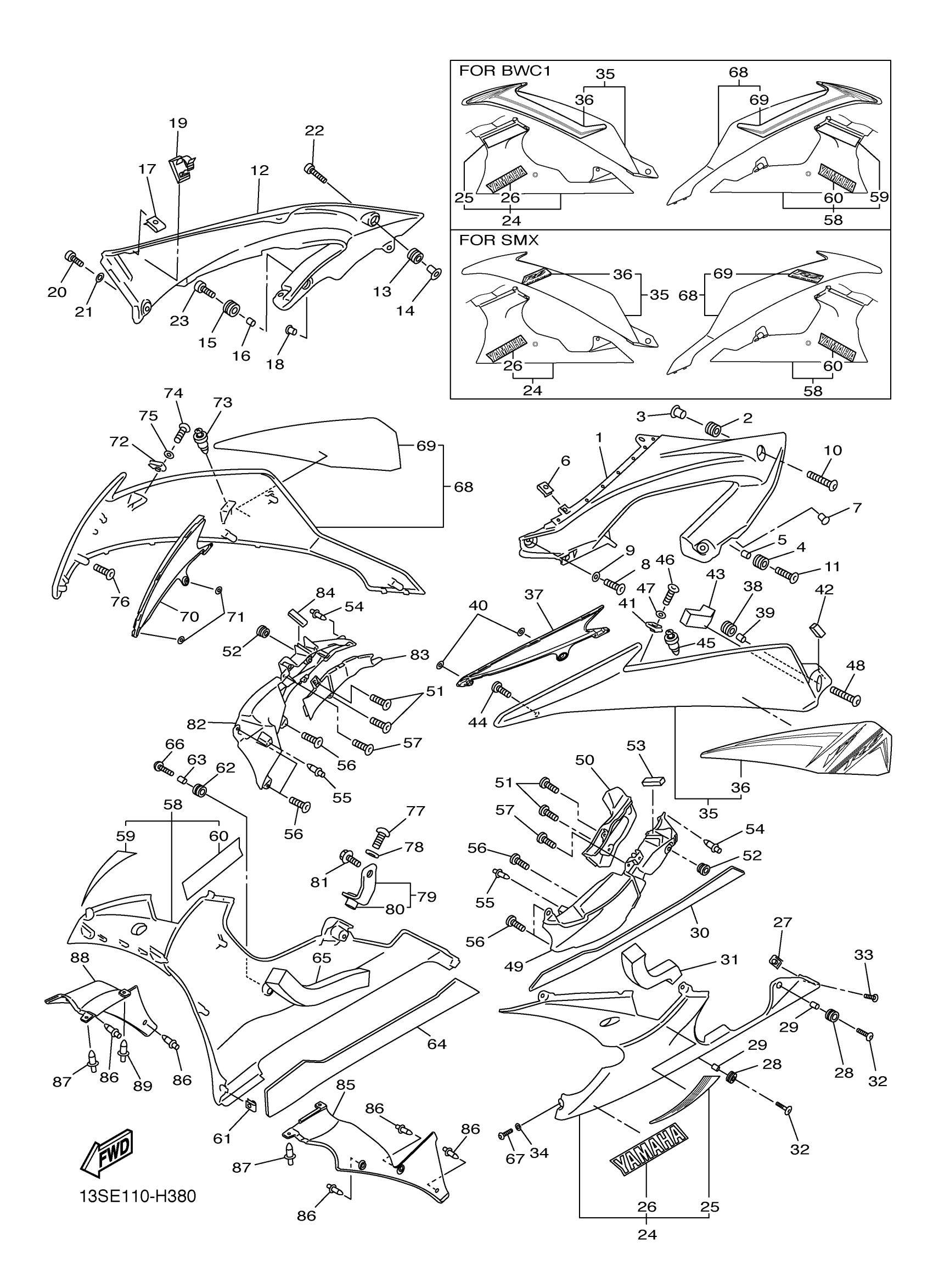

Yamaha YZFR6YW (YZFR6) 13SE1 2009 COWLING 2 Diagram

#

Description
Price

1

COVER 7

13S-2117V-00-P3

Unavailable

2

GROMMET

90480-12613-00

$24.99

3

COLLAR(36Y)

90387-067K8-00

$7.49

4

GROMMET

90480-14003-00

$8.49

5

COLLAR

90387-06057-00

$8.49

6

NUT, SPRING

90183-050A6-00

$8.49

7

PLUG (13K)

90338-06134-00

$8.49

8

BOLT

90111-05003-00

$8.49

9

WASHER, PLATE(1KT)

90202-05180-00

$10.49

10

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

11

BOLT

90111-06040-00

$4.29

12

COVER 8

13S-2117W-00-P3

$229.99

13

GROMMET

90480-12613-00

$24.99

14

COLLAR(36Y)

90387-067K8-00

$7.49

15

GROMMET

90480-14003-00

$8.49

16

COLLAR

90387-06057-00

$8.49

17

NUT, SPRING

90183-050A6-00

$8.49

18

PLUG (13K)

90338-06134-00

$8.49

19

CLAMP

90464-20014-00

Unavailable

20

BOLT

90111-05003-00

$8.49

21

WASHER, PLATE(1KT)

90202-05180-00

$10.49

22

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

23

BOLT

90111-06040-00

$4.29

24

UNDER COVER COMP1

13S-W2838-40-P1

Unavailable

26

EMBLEM, YAMAHA

4C8-2153E-70-00

Unavailable

27

NUT, SPRING

90183-050A6-00

$8.49

28

GROMMET

90480-14003-00

$8.49

29

COLLAR

90387-06057-00

$8.49

30

SEAT 1

13S-2838G-00-00

Unavailable

31

DAMPER, LOCATING 2

13S-2836U-00-00

Unavailable

32

BOLT

90111-06040-00

$4.29

33

BOLT

90111-05003-00

$8.49

34

WASHER, PLATE(1KT)

90202-05180-00

$10.49

35

PANEL ASSY 1

13S-W283U-50-P3

Unavailable

36

EMBLEM

13S-28328-60-00

Unavailable

37

COVER 1

13S-28219-00-00

Unavailable

38

GROMMET

90480-14003-00

$8.49

39

COLLAR

90387-06057-00

$8.49

40

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

41

NUT, SPRING

90183-050A6-00

$8.49

42

DAMPER 1

13S-28415-00-00

Unavailable

43

DAMPER, LOCATING 3

13S-24183-00-00

Unavailable

44

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

45

RIVET

90269-07007-00

Unavailable

46

BOLT

90111-05003-00

$8.49

47

WASHER, PLATE(1KT)

90202-05180-00

$10.49

48

BOLT

90111-06040-00

$4.29

49

GUIDE, AIR 1

13S-2137U-00-00

Unavailable

50

GUIDE, AIR 3

13S-2137K-01-00

Unavailable

51

SCREW, TAPPING

97702-50016-00

Unavailable

52

GROMMET(4DN)

90480-01558-00

Unavailable

53

DAMPER 1

13S-28217-00-00

Unavailable

54

RIVET

90269-06008-00

Unavailable

55

RIVET

90269-06081-00

Unavailable

56

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

57

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

58

UNDER COVER COMP 2 (BLACK METALLIC X)

13S-W2839-40-P1

Unavailable

60

EMBLEM, YAMAHA

4C8-2153E-70-00

Unavailable

61

NUT, SPRING

90183-050A6-00

$8.49

62

GROMMET

90480-14003-00

$8.49

63

COLLAR

90387-06057-00

$8.49

64

SEAT 2

13S-2848K-00-00

Unavailable

65

DAMPER 10

13S-2847R-00-00

Unavailable

66

BOLT

90111-06040-00

$4.29

67

BOLT

90111-05003-00

$8.49

68

PANEL 2 (MAT BLACK 2) (BLACK METALLIC X)

13S-W283V-50-P3

Unavailable

69

EMBLEM

13S-28338-60-00

Unavailable

70

COVER 2

13S-28229-00-00

Unavailable

71

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

72

NUT, SPRING

90183-050A6-00

$8.49

73

RIVET

90269-07007-00

Unavailable

74

BOLT

90111-05003-00

$8.49

75

WASHER, PLATE(1KT)

90202-05180-00

$10.49

76

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

77

BOLT

90109-06207-00

Unavailable

78

WASHER, PLATE

90202-10024-00

Unavailable

79

BRACKET 4

13S-2836G-00-00

Unavailable

80

NUT

90179-06059-00

Unavailable

81

BOLT, FLANGE

95817-06014-00

Unavailable

82

GUIDE, AIR 2

13S-2137V-00-00

Unavailable

83

GUIDE, AIR 4

13S-2137L-01-00

Unavailable

84

DAMPER 1

13S-28217-00-00

Unavailable

85

PANEL, INNER 2

13S-2836L-00-00

Unavailable

86

RIVET

90269-06008-00

Unavailable

87

RIVET

90269-06002-00

Unavailable

88

PANEL, INNER 3

13S-2836M-00-00

Unavailable

89

RIVET

90269-06008-00

Unavailable
