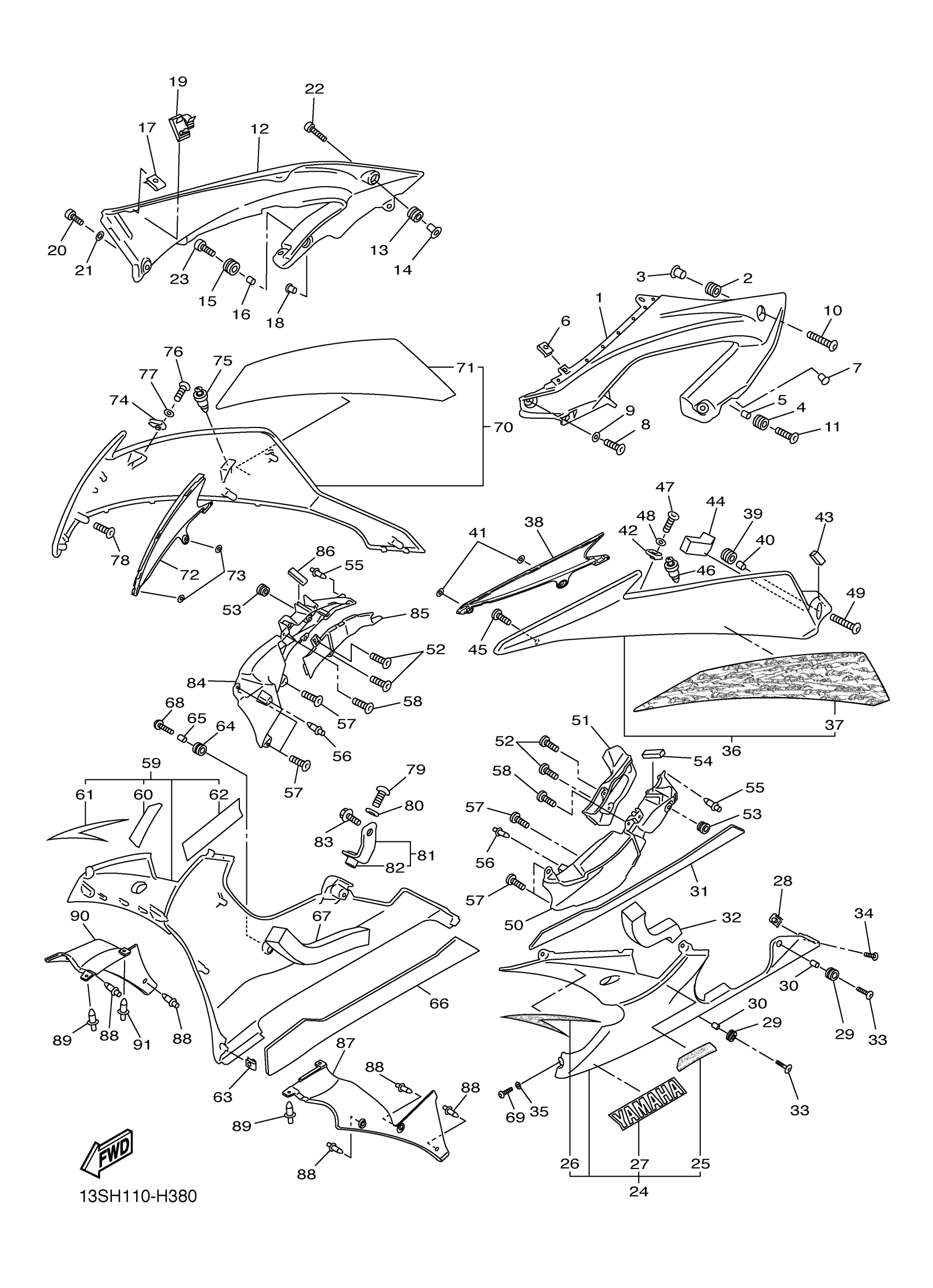

Yamaha YZFR6YO (YZFR6) 13SH 2009 COWLING 2 Diagram

#

Description
Price

1

COVER 7 (VIVID ORANGE METALLIC 2)

13S-2117V-00-P7

Unavailable

2

GROMMET

90480-12613-00

$24.99

3

COLLAR(36Y)

90387-067K8-00

$7.49

4

GROMMET

90480-14003-00

$8.49

5

COLLAR

90387-06057-00

$8.49

6

NUT, SPRING

90183-050A6-00

$8.49

7

PLUG (13K)

90338-06134-00

$8.49

8

BOLT

90111-05003-00

$8.49

9

WASHER, PLATE(1KT)

90202-05180-00

$10.49

10

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

11

BOLT

90111-06040-00

$4.29

12

COVER 8 (VIVID ORANGE METALLIC 2)

13S-2117W-00-P7

Unavailable

13

GROMMET

90480-12613-00

$24.99

14

COLLAR(36Y)

90387-067K8-00

$7.49

15

GROMMET

90480-14003-00

$8.49

16

COLLAR

90387-06057-00

$8.49

17

NUT, SPRING

90183-050A6-00

$8.49

18

PLUG (13K)

90338-06134-00

$8.49

19

CLAMP

90464-20014-00

Unavailable

20

BOLT

90111-05003-00

$8.49

21

WASHER, PLATE(1KT)

90202-05180-00

$10.49

22

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

23

BOLT

90111-06040-00

$4.29

24

UNDER COVER COMP1

13S-W2838-20-P1

Unavailable

25

EMBLEM

13S-28328-80-00

Unavailable

26

. GRAPHIC, UNDER COVER 1

13S-283A1-20-00

Unavailable

27

EMBLEM, YAMAHA

4C8-2153E-10-00

Unavailable

28

NUT, SPRING

90183-050A6-00

$8.49

29

GROMMET

90480-14003-00

$8.49

30

COLLAR

90387-06057-00

$8.49

31

SEAT 1

13S-2838G-00-00

Unavailable

32

DAMPER, LOCATING 2

13S-2836U-00-00

Unavailable

33

BOLT

90111-06040-00

$4.29

34

BOLT

90111-05003-00

$8.49

35

WASHER, PLATE(1KT)

90202-05180-00

$10.49

36

PANEL ASSY 1

13S-W283U-30-P8

Unavailable

37

GRAPHIC 1

13S-28391-80-00

Unavailable

38

COVER 1

13S-28219-00-00

Unavailable

39

GROMMET

90480-14003-00

$8.49

40

COLLAR

90387-06057-00

$8.49

41

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

42

NUT, SPRING

90183-050A6-00

$8.49

43

DAMPER 1

13S-28415-00-00

Unavailable

44

DAMPER, LOCATING 3

13S-24183-00-00

Unavailable

45

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

46

RIVET

90269-07007-00

Unavailable

47

BOLT

90111-05003-00

$8.49

48

WASHER, PLATE(1KT)

90202-05180-00

$10.49

49

BOLT

90111-06040-00

$4.29

50

GUIDE, AIR 1

13S-2137U-00-00

Unavailable

51

GUIDE, AIR 3

13S-2137K-01-00

Unavailable

52

SCREW, TAPPING

97702-50016-00

Unavailable

53

GROMMET(4DN)

90480-01558-00

Unavailable

54

DAMPER 1

13S-28217-00-00

Unavailable

55

RIVET

90269-06008-00

Unavailable

56

RIVET

90269-06081-00

Unavailable

57

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

58

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

59

UNDER COVER COMP.2

13S-W2839-20-P1

Unavailable

60

. EMBLEM

13S-28338-80-00

Unavailable

61

GRAPHIC, UNDER COVER 2

13S-283A2-20-00

Unavailable

62

EMBLEM, YAMAHA

4C8-2153E-10-00

Unavailable

63

NUT, SPRING

90183-050A6-00

$8.49

64

GROMMET

90480-14003-00

$8.49

65

COLLAR

90387-06057-00

$8.49

66

SEAT 2

13S-2848K-00-00

Unavailable

67

DAMPER 10

13S-2847R-00-00

Unavailable

68

BOLT

90111-06040-00

$4.29

69

BOLT

90111-05003-00

$8.49

70

PANEL 2 (VIVID ORANGE METALLIC 2)

13S-W283V-30-P8

Unavailable

71

GRAPHIC 2

13S-28392-80-00

Unavailable

72

COVER 2

13S-28229-00-00

Unavailable

73

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

74

NUT, SPRING

90183-050A6-00

$8.49

75

RIVET

90269-07007-00

Unavailable

76

BOLT

90111-05003-00

$8.49

77

WASHER, PLATE(1KT)

90202-05180-00

$10.49

78

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

79

BOLT

90109-06207-00

Unavailable

80

WASHER, PLATE

90202-10024-00

Unavailable

81

BRACKET 4

13S-2836G-00-00

Unavailable

82

NUT

90179-06059-00

Unavailable

83

BOLT, FLANGE

95817-06014-00

Unavailable

84

GUIDE, AIR 2

13S-2137V-00-00

Unavailable

85

GUIDE, AIR 4

13S-2137L-01-00

Unavailable

86

DAMPER 1

13S-28217-00-00

Unavailable

87

PANEL, INNER 2

13S-2836L-00-00

Unavailable

88

RIVET

90269-06008-00

Unavailable

89

RIVET

90269-06002-00

Unavailable

90

PANEL, INNER 3

13S-2836M-00-00

Unavailable

91

RIVET

90269-06008-00

Unavailable
