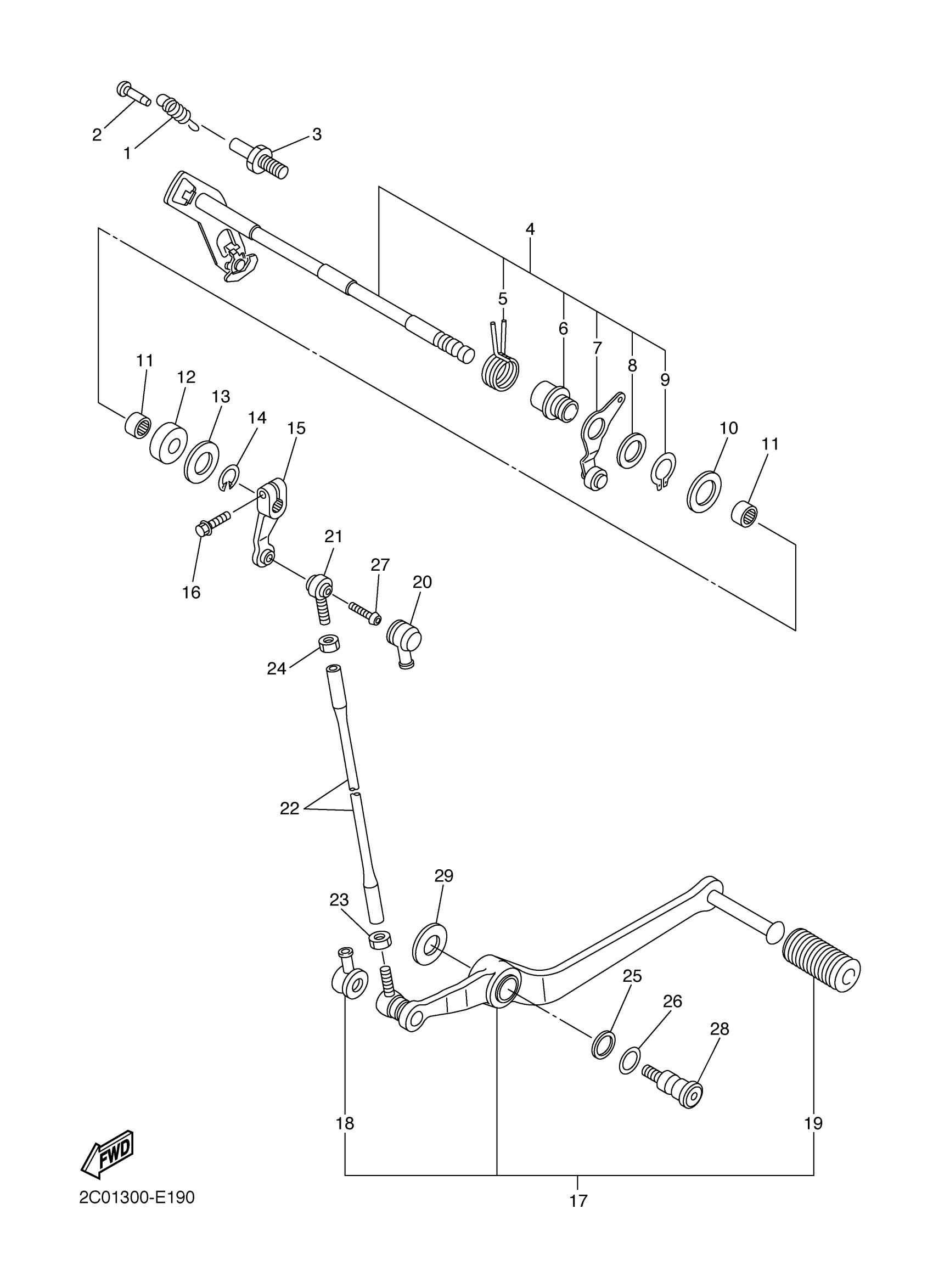

Yamaha YZFR6XY (YZFR6 WITH FLAMES) 13S7 2008 SHIFT SHAFT Diagram

#

Description
Price

1

HANGER, SPRING

2C0-18144-00-00

$6.99

2

HOOK, SPRING

132-16346-00-00

$9.99

3

STOPPER, SCREW

5VK-18127-00-00

Unavailable

4

SHIFT SHAFT ASSY

2C0-18101-02-00

$218.99

5

SPRING, TORSION

90508-32141-00

Unavailable

6

. SPACER

2C0-18175-00-00

Unavailable

7

STOPPER LEVER ASSY

2C0-18140-00-00

$50.99

8

WASHER, PLATE (30X)

90201-177G4-00

$9.49

9

CIRCLIP(1EY)

99009-17400-00

$4.73

10

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

11

BEARING

93317-11295-00

$46.99

12

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

13

WASHER, PLATE (353)

90201-12575-00

$8.49

14

CIRCLIP

99006-10600-00

$9.49

15

ARM, SHIFT

5PW-18112-10-00

$116.99

16

BOLT, FLANGE

95817-06020-00

Unavailable

17

SHIFT PEDAL ASSY

2C0-18110-01-00

Unavailable

18

COVER, DUST

2H9-18154-00-00

Unavailable

19

COVER, SHIFT PEDAL

5EB-18113-00-00

Unavailable

20

COVER, DUST

4XV-18154-00-00

Unavailable

21

JOINT, ROD 1

5LV-18116-00-00

Unavailable

22

ROD, SHIFT

2C0-18115-00-00

Unavailable

23

NUT(1KT)

90170-08358-00

Unavailable

24

NUT(650)

95380-06700-00

Unavailable

25

WASHER, PLATE

90201-12013-00

Unavailable

26

WASHER, WAVE (17W)

90206-12074-00

Unavailable

27

BOLT, BUTTON

92017-06020-00

Unavailable

28

BOLT

4BP-27434-11-00

Unavailable

29

WASHER, PLATE (3L7)

90201-08784-00

Unavailable
