Description

Price

1

SINGLE SEAT ASSY

13S-24710-01-00

$129.99

2

COVER, SINGLE SEAT

13S-24711-01-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$9.49

4

TANDEM SEAT ASSY

13S-24750-01-00

$199.99

5

DAMPER, SEAT

5SL-24723-00-00

$6.99

6

SEAT LOCK ASSY

2C0-24780-10-00

$83.99

7

PLATE

2C0-24792-00-00

$40.99

8

BOLT

90111-06051-00

$5.60

9

SPACER, CARRIER

2C0-24825-00-00

$6.99

10

SPACER 1

13S-24725-00-00

$6.99

11

HOLDER 1

13S-24847-00-00

$7.99

12

CLIP

90468-16001-00

$5.60

13

CABLE, SEAT LOCK

13S-2478E-00-00

$17.49

14

ROTOR SET

5VY-W2470-00-00

Unavailable

15

STAY, LOCK

5VY-2117K-01-00

$7.99

16

SPRING, LOCK 2

5VY-2176V-00-00

Unavailable

17

COLLAR

90387-06066-00

Unavailable

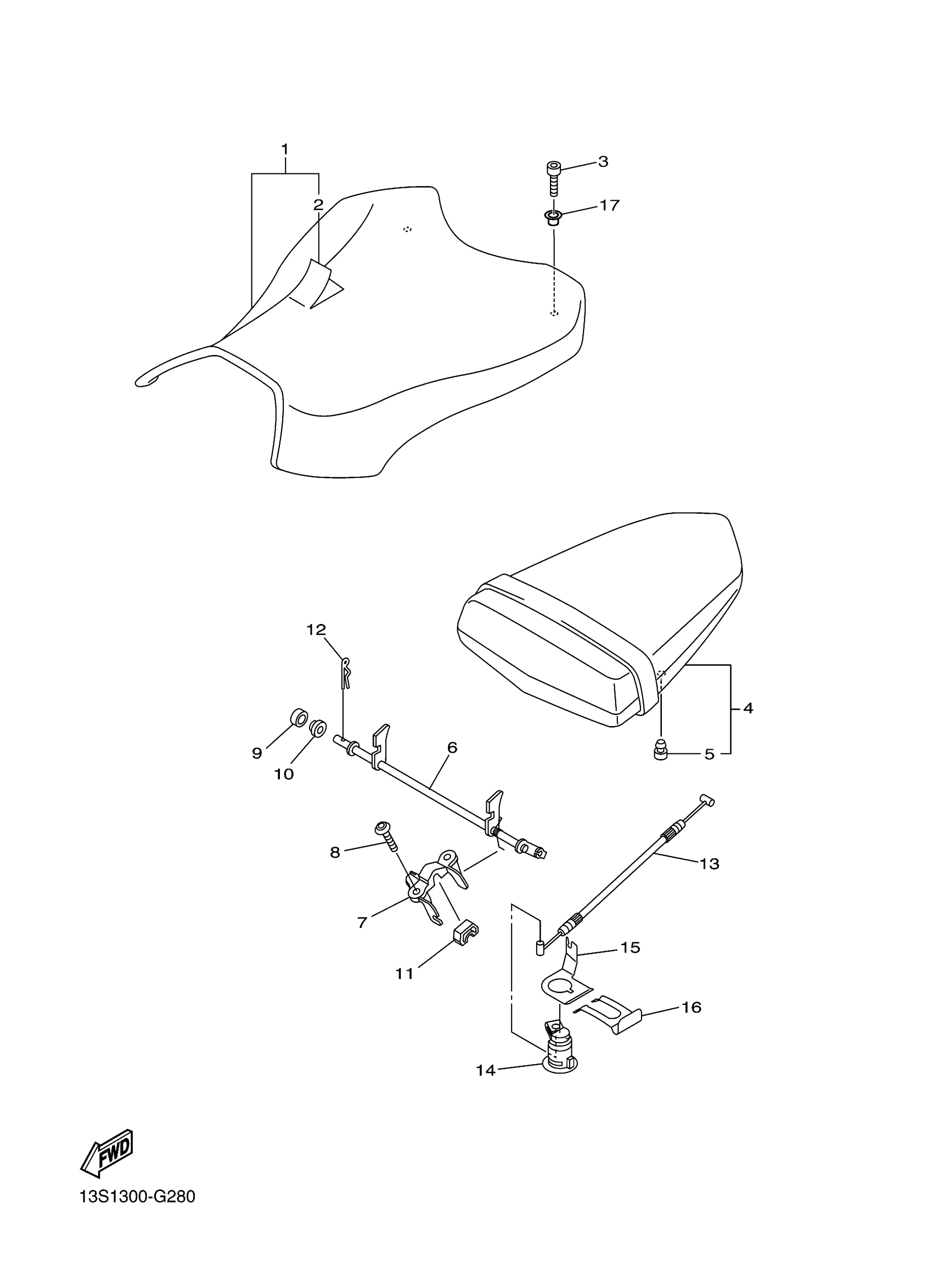

Yamaha YZFR6XY (YZFR6 WITH FLAMES) 13S7 2008 SEAT Diagram

SINGLE SEAT ASSY

COVER, SINGLE SEAT

BOLT, HEXAGON SOCKET HEAD

TANDEM SEAT ASSY

DAMPER, SEAT

SEAT LOCK ASSY

PLATE

BOLT

SPACER, CARRIER

SPACER 1

HOLDER 1

CLIP

CABLE, SEAT LOCK

ROTOR SET

STAY, LOCK

SPRING, LOCK 2

COLLAR
