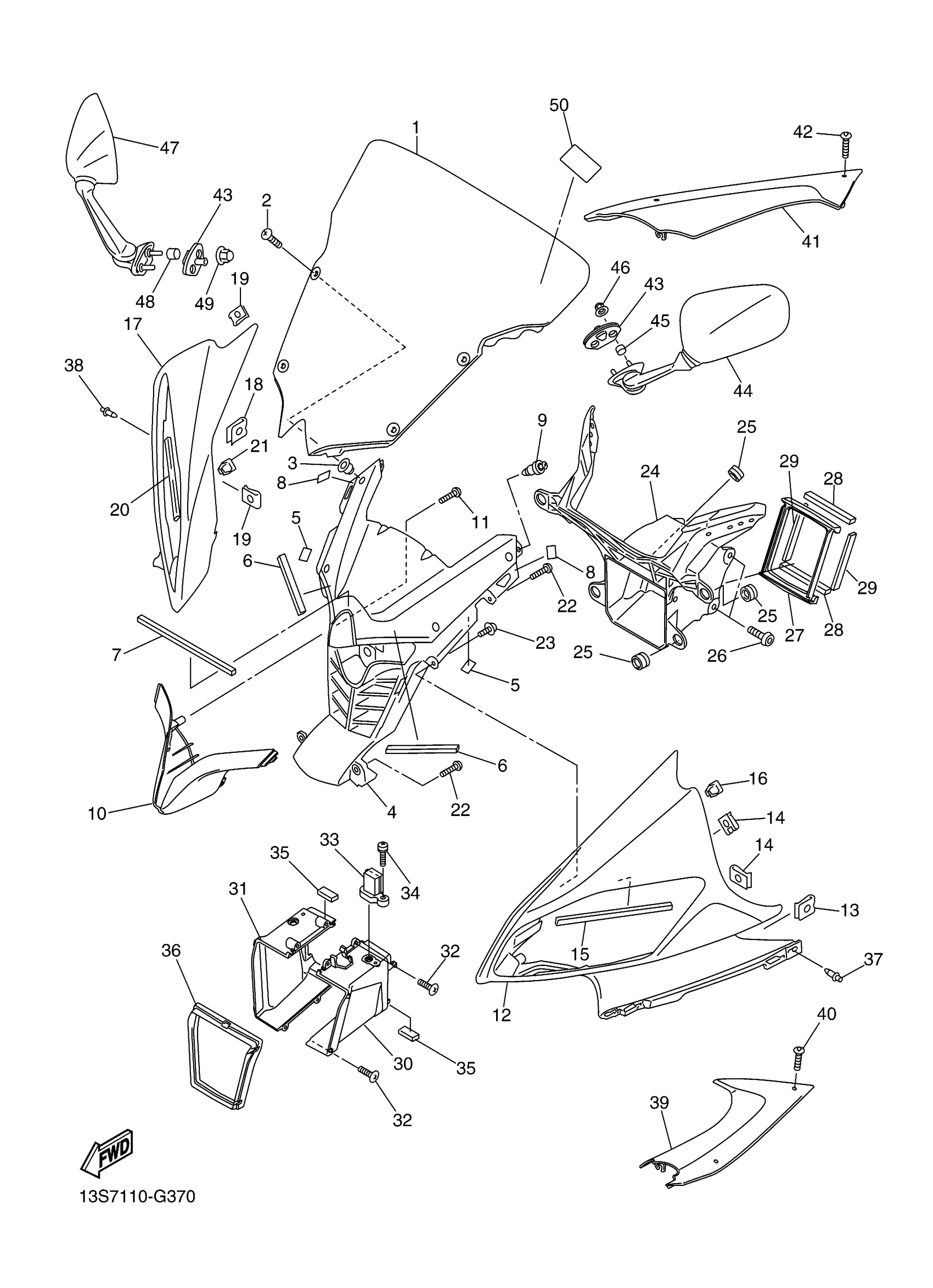

Yamaha YZFR6XY (YZFR6 WITH FLAMES) 13S7 2008 COWLING 1 Diagram
#
4
PANEL, INNER 1
13S-2836K-00-00
Unavailable
10
COVER
13S-28365-00-P0
Unavailable
12
BODY, FRONT UPPER 1
13S-2835G-00-P5
Unavailable
16
GROMMET(4TV)
90480-01605-00
Unavailable
17
BODY, FRONT UPPER 2
13S-2835H-00-P5
Unavailable
21
GROMMET(4TV)
90480-01605-00
Unavailable
22
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
23
SCREW, TRUSS TAP.
97707-40012-00
Unavailable
24
STAY 1
13S-28356-00-00
Unavailable
25
DAMPER
4XV-83513-00-00
Unavailable
26
BOLT
90111-06038-00
Unavailable
27
JOINT
2C0-28342-02-00
Unavailable
28
DAMPER 1
2C0-28217-00-00
Unavailable
29
DAMPER 2
2C0-28227-00-00
Unavailable
30
DUCT 2
13S-2838R-01-00
Unavailable
31
DUCT 3
13S-2838T-01-00
Unavailable
33
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
Unavailable
34
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
35
DAMPER 2
51Y-21639-00-00
Unavailable
36
DAMPER
2C0-28371-00-00
Unavailable
37
RIVET
90269-06008-00
Unavailable
38
RIVET
90269-06008-00
Unavailable
39
PANEL, CONSOLE 1
13S-2837L-00-00
Unavailable
40
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
41
PANEL, CONSOLE 2
13S-2837M-00-00
Unavailable
42
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
43
PLATE, MIRROR FITTING 1
13S-26298-00-00
Unavailable
44
REAR VIEW MIRROR ASSY (LEFT)
13S-26280-00-00
Unavailable
45
COLLAR(J45)
90387-064T3-00
Unavailable
46
NUT, CROWN
90176-06008-00
Unavailable
47
REAR VIEW MIRROR ASSY (RIGHT)
13S-26290-00-00
Unavailable
48
COLLAR(J45)
90387-064T3-00
Unavailable
49
NUT, CROWN
90176-06008-00
Unavailable
50
LABEL, CAUTION
5JW-2835Y-00-00
Unavailable
