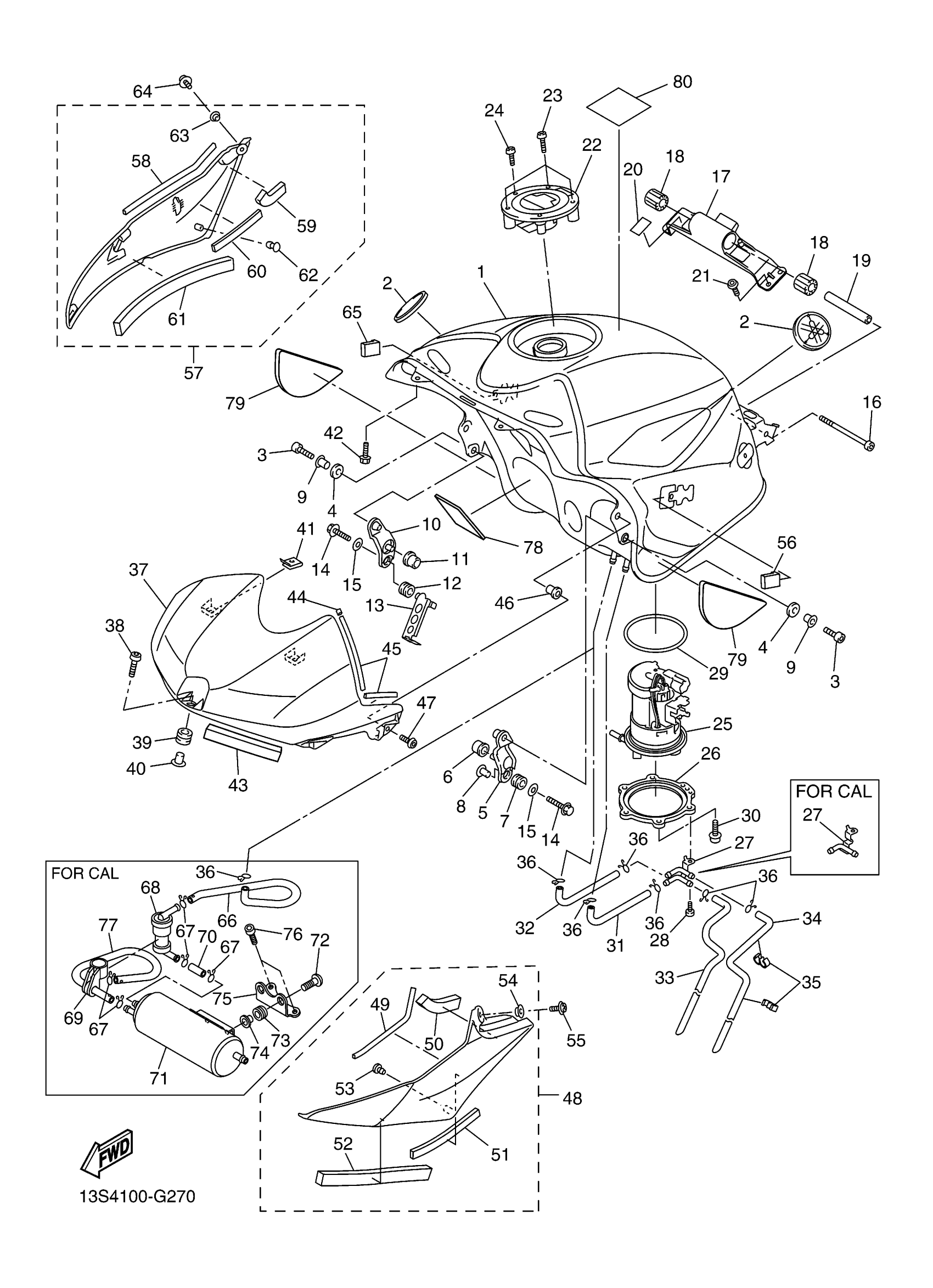

Yamaha YZFR6XS (YZFR6) 13S41 2008 FUEL TANK Diagram
#
1
FUEL TANK COMP.
13S-WK241-01-P3
Unavailable
1
FUEL TANK COMP. (SILVER 3)
13S-YK241-00-P4
Unavailable
7
GROMMET(3XV)
90480-10542-00
Unavailable
10
BRACKET, FUEL TANK 2
5VY-24192-10-00
Unavailable
12
GROMMET(3XV)
90480-10542-00
Unavailable
13
GUIDE, WIRE
2C0-21339-00-00
Unavailable
14
BOLT, FLANGE
95022-06030-00
Unavailable
15
WASHER, PLATE
90201-06095-00
Unavailable
16
BOLT, SOCKET
91314-06090-00
Unavailable
17
BRACKET, TANK FITTING
2C0-2413Y-00-00
Unavailable
18
DAMPER, LOCATING 3
5SL-24183-00-00
Unavailable
19
COLLAR
90387-06055-00
Unavailable
20
TAPE, 1
2C0-21566-00-00
Unavailable
21
BOLT
90111-06038-00
Unavailable
22
CAP ASSY
39P-24602-00-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
24
BOLT
91312-05010-00
Unavailable
25
FUEL PUMP COMP.
4C8-13907-04-00
Unavailable
26
BRACKET, FUEL PUMP
13S-24491-00-00
Unavailable
27
CLAMP 1
13S-24135-00-00
Unavailable
27
CLAMP 1
13S-24135-10-00
Unavailable
28
SCREW, BINDING
98907-05008-00
Unavailable
29
O-RING
19B-24486-01-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
31
PIPE 5
13S-24315-00-00
Unavailable
32
PIPE 6
13S-24316-00-00
Unavailable
33
PIPE 7
13S-24317-00-00
Unavailable
33
PIPE 7
13S-24317-10-00
Unavailable
34
PIPE 3
13S-24313-00-00
Unavailable
35
CLAMP(6M7)
90464-09M31-00
Unavailable
36
CLIP
90467-090A2-00
Unavailable
36
CLIP
90467-090A2-00
Unavailable
37
COVER, TOP
13S-2171A-00-P0
Unavailable
37
COVER, TOP
13S-2171A-00-P2
Unavailable
37
COVER, TOP
13S-2171A-00-P3
Unavailable
38
BOLT, HEXAGON SOCKET HEAD
90110-06233-00
Unavailable
39
GROMMET
90480-12023-00
Unavailable
40
COLLAR
90387-06203-00
Unavailable
41
NUT, SPRING(3YX)
90183-05074-00
Unavailable
42
BOLT, FLANGE
90105-05014-00
Unavailable
43
DAMPER, PLATE 2
2C0-2414J-00-00
Unavailable
44
DAMPER, LOCATING 1
13S-24181-00-00
Unavailable
45
DAMPER, PLATE
90520-03016-00
Unavailable
46
NUT(1KT)
90179-05523-00
Unavailable
47
SCREW, BIND
98902-05014-00
Unavailable
48
TANK SIDE COVER ASSY 1
13S-24106-00-00
Unavailable
49
DAMPER, PLATE
90520-04013-00
Unavailable
50
DAMPER, PLATE 5
2C0-2414P-00-00
Unavailable
51
DAMPER, PLATE
90520-04012-00
Unavailable
52
DAMPER, LOCATING 4
2C0-24184-00-00
Unavailable
53
PLUG(1NL)
90338-07180-00
Unavailable
54
COLLAR
90387-05035-00
Unavailable
55
SCREW, BIND
98902-05008-00
Unavailable
56
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
57
TANK SIDE COVER ASSY 2
13S-24108-00-00
Unavailable
58
DAMPER, PLATE
90520-04013-00
Unavailable
59
DAMPER, PLATE 5
2C0-2414P-00-00
Unavailable
60
DAMPER, PLATE
90520-04012-00
Unavailable
61
DAMPER, LOCATING 4
2C0-24184-00-00
Unavailable
62
PLUG(1NL)
90338-07180-00
Unavailable
63
COLLAR
90387-05035-00
Unavailable
64
SCREW, BIND
98902-05008-00
Unavailable
65
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
66
PIPE 4
13S-24314-00-00
Unavailable
67
CLIP
90467-090A2-00
Unavailable
68
ROLL OVER VALVE ASSY
2C0-24180-00-00
Unavailable
69
BAND 1
2C0-24398-00-00
Unavailable
70
HOSE
90445-11065-00
Unavailable
71
CANISTER ASSY
5EL-24170-00-00
Unavailable
72
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
73
GROMMET (462)
90480-13018-00
Unavailable
74
COLLAR(42G)
90387-062L2-00
Unavailable
75
BRACKET, CANISTOR
2C0-2419F-00-00
Unavailable
76
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
77
PIPE
2C0-1443J-01-00
Unavailable
78
DAMPER, SIDE COVER
13S-24145-00-00
Unavailable
79
DAMPER, SIDE COVER
2C0-24145-00-00
Unavailable
80
LABEL, CAUTION
4C8-2118K-00-00
Unavailable
