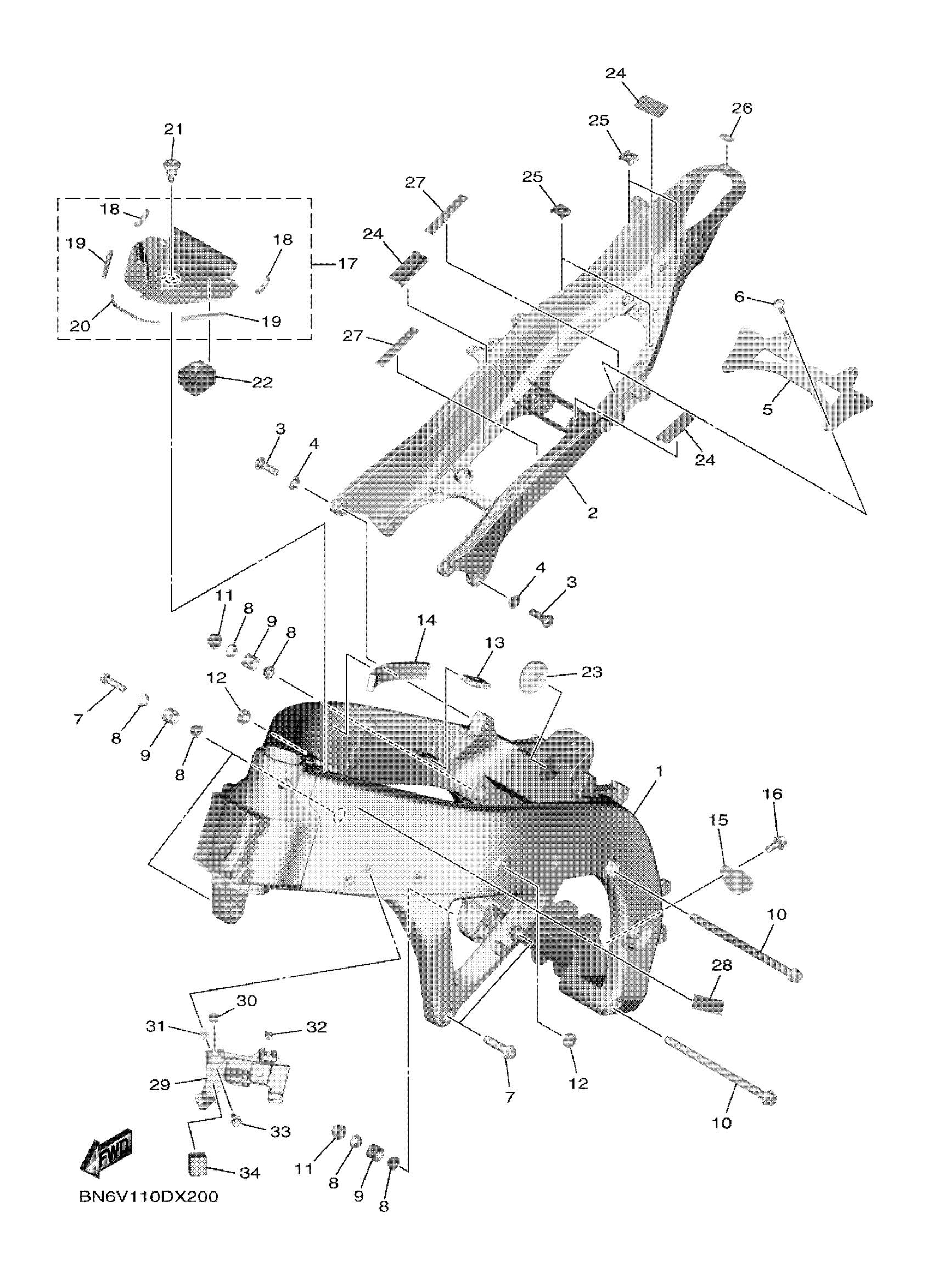

Yamaha YZFR6WSB (YZFR6 RACE) D512 2025 FRAME Diagram
#
Description
Price
1
FRAME COMP.
BN6-21110-00-00
Unavailable
2
REAR FRAME COMP.
BN6-21190-00-00
Unavailable
5
REINF. COMP.
BN6-21670-00-00
Unavailable
15
BRACKET, MUFFLER 1
13S-21435-00-00
Unavailable
16
BOLT, FLANGE
95812-08020-00
Unavailable
17
COVER ASSY 1
13S-2110M-00-00
Unavailable
18
DAMPER
13S-2174X-00-00
Unavailable
19
. DAMPER
2C0-2174Y-00-00
Unavailable
20
DAMPER
2C0-21746-00-00
Unavailable
21
RIVET
90269-07010-00
Unavailable
22
HOUSING, CONNECTEUR 1
2C0-8258J-00-00
Unavailable
23
PLUG, BLIND
2C0-21279-00-00
Unavailable
24
SEAL 4
4B5-28268-00-00
Unavailable
25
SEAL 3
2CR-22875-01-00
Unavailable
26
SEAL
5SL-21268-00-00
Unavailable
27
SEAL 3
4B5-28238-00-00
Unavailable
28
PLATE, COMPETITION USA
17D-2812P-00-00
Unavailable
29
BRACKET 7
13S-2833A-01-00
Unavailable
30
GROMMET
90480-10003-00
Unavailable
31
COLLAR
90387-06048-00
Unavailable
32
NUT, SPRING
90183-050A6-00
Unavailable
33
BOLT, FLANGE DEEP RECESS
95D02-06020-00
Unavailable
34
DAMPER, SHROUD 6
13S-12679-00-00
Unavailable
