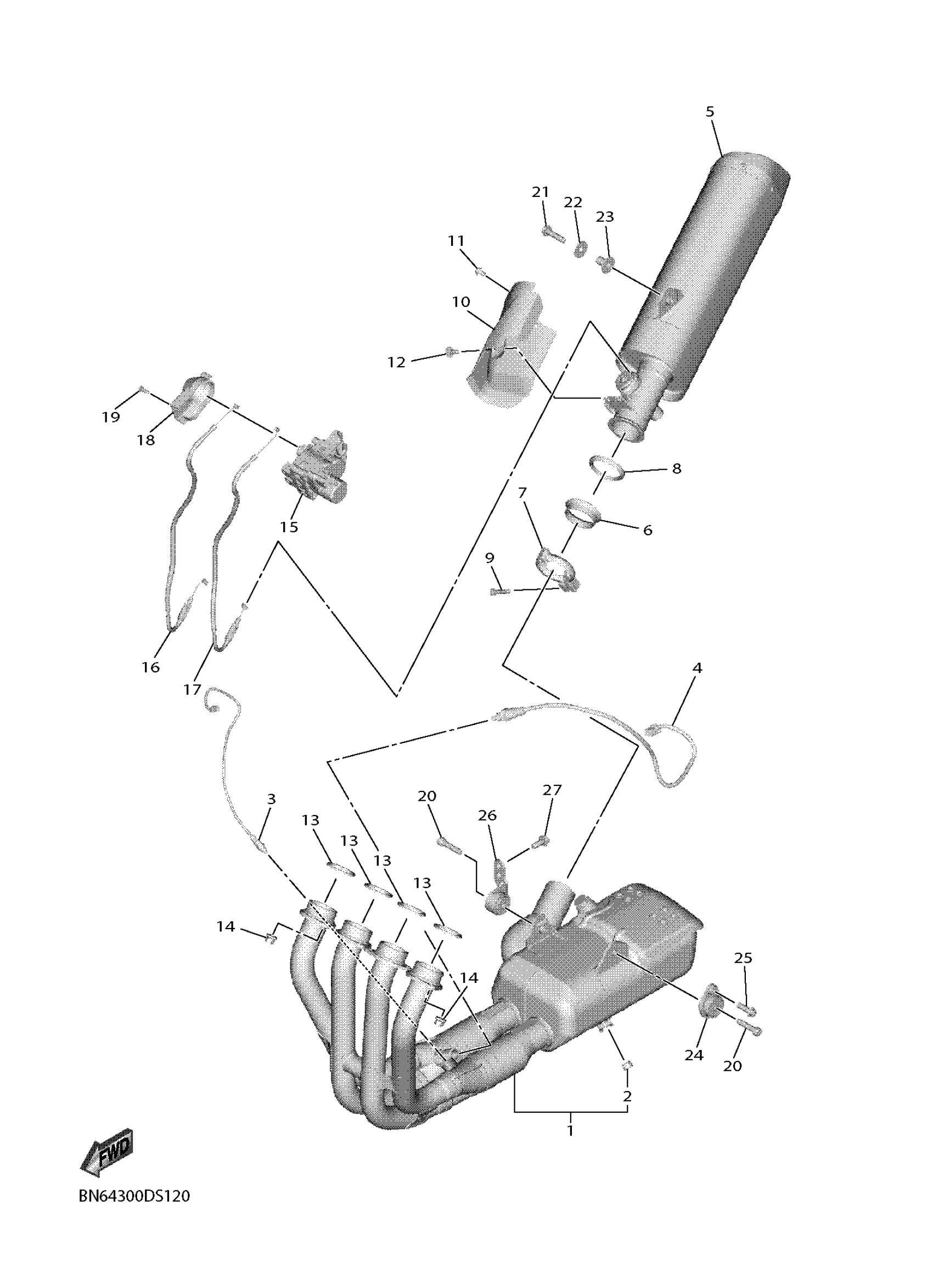

Yamaha YZFR6WSB (YZFR6 RACE) D512 2025 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY

BN6-14610-00-00

Unavailable

2

DAMPER, LOCATING 1

4FM-24181-00-00

Unavailable

3

SENSOR, OXYGEN

2CR-8592A-20-00

$227.99

4

SENSOR, OXYGEN

BN6-8592A-10-00

$305.99

5

SILENCER, EXHAUST

BN6-14753-00-00

Unavailable

6

RING, STOPPER

2C0-14618-00-00

$40.99

7

BAND, MUFFLER

2C0-14725-00-00

$80.99

8

GASKET, EXHAUST PIPE

2C0-14623-00-00

$19.99

9

BOLT, SOCKET

91314-06030-00

$8.49

10

PROTECTOR, MUFFLER 1

13S-14718-00-00

$100.99

11

BOLT,HEX. SOCKET BUTTON

90111-06100-00

$7.49

12

BOLT

90111-06038-00

$4.29

13

GASKET, EXHAUST PIPE

4FM-14613-00-00

$12.99

14

NUT (22U)

90179-08410-00

$9.49

15

SERVO MOTOR ASSY

2CR-85820-03-00

$228.99

16

CABLE, PULLEY 1

BN6-1133E-01-00

Unavailable

17

CABLE, PULLEY 2

BN6-1133F-00-00

Unavailable

18

COVER, SERVO MOTOR

5VY-85829-01-00

Unavailable

19

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable

20

BOLT, SOCKET

91314-08035-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-08099-00

Unavailable

22

WASHER, PLATE(3DM)

90201-087G2-00

Unavailable

23

COLLAR

90387-08021-00

Unavailable

24

STAY, MUFFLER 2

13S-21446-00-00

Unavailable

25

BOLT, FLANGE

90105-08054-00

Unavailable

26

STAY, MUFFLER 1

13S-21445-00-00

Unavailable

27

BOLT, FLANGE

95812-08020-00

Unavailable
