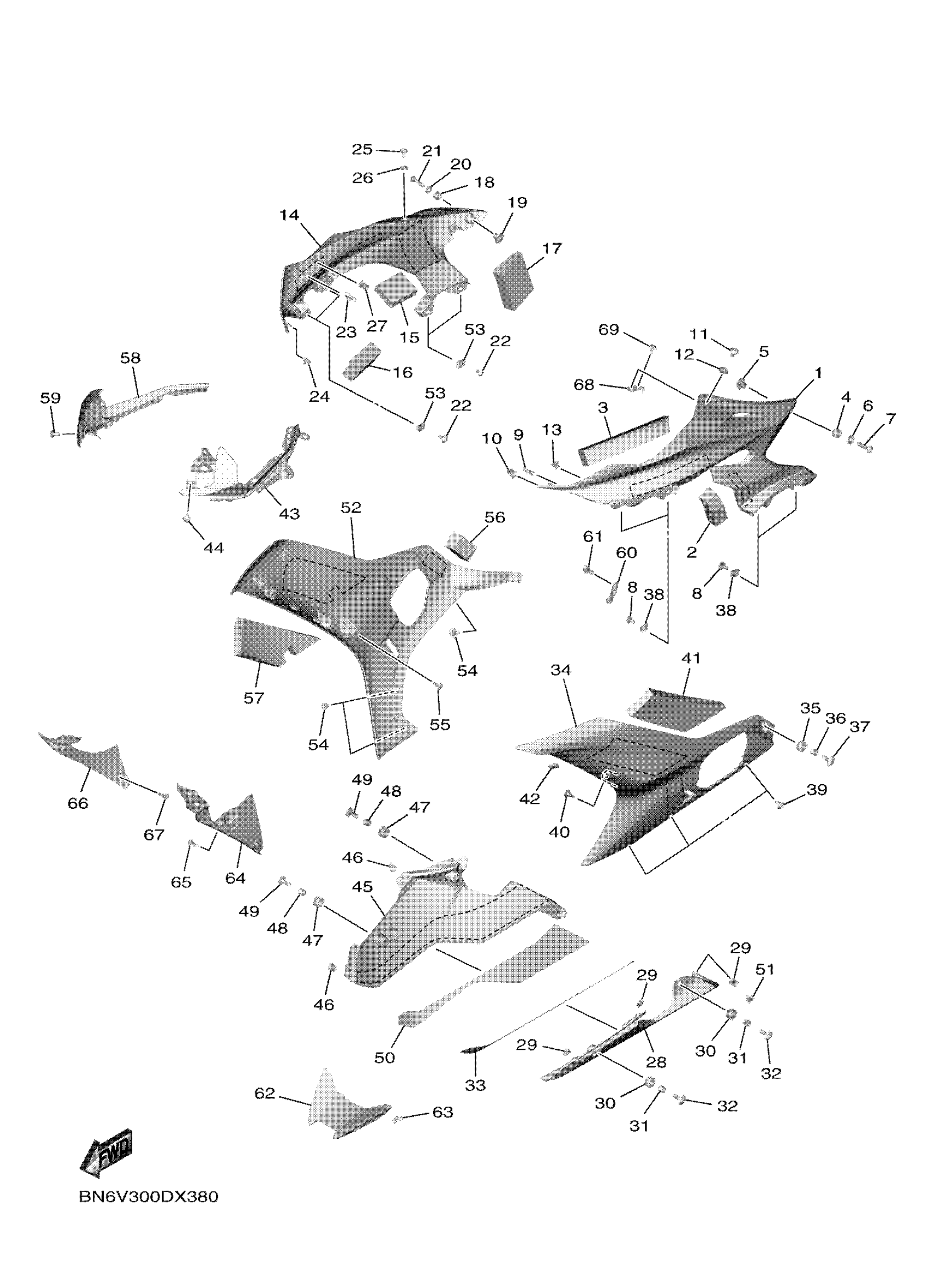

Yamaha YZFR6WSB (YZFR6 RACE) D512 2025 COWLING 2 Diagram

#

Description
Price

1

COVER 7

BN6-2117V-00-P1

$338.17

2

DAMPER, PLATE

90520-30002-00

$1.51

3

SEAL 12

7CH-22889-00-00

$1.63

4

GROMMET

90480-12613-00

$18.77

5

COLLAR(36Y)

90387-067K8-00

$4.85

6

WASHER, PLATE 8087752500

90201-07081-00

$6.62

7

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$5.86

8

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$5.86

9

NUT, SPRING

90183-060A6-00

$3.90

10

CLAMP

90464-07018-00

$0.58

11

SCREW(3XV)

90149-06298-00

$3.98

12

WASHER, PLATE (35R)

90201-060H9-00

$3.17

13

CLIP

90468-04001-00

$0.67

14

COVER 8

BN6-2117W-00-P1

Unavailable

15

DAMPER, PLATE

90520-60001-00

$1.51

16

DAMPER, PLATE

90520-30008-00

Unavailable

17

SEAL 26

7CH-2289T-00-00

Unavailable

18

GROMMET

90480-12613-00

$18.77

19

COLLAR(36Y)

90387-067K8-00

$4.85

20

WASHER, PLATE 8087752500

90201-07081-00

$6.62

21

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$5.86

22

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$5.86

23

NUT, SPRING

90183-060A6-00

$3.90

24

CLAMP

90464-07018-00

$0.58

25

SCREW(3XV)

90149-06298-00

$3.98

26

WASHER, PLATE (35R)

90201-060H9-00

$3.17

27

CLIP

90468-04001-00

$0.67

28

COVER, UNDER

BN6-28385-00-P1

Unavailable

29

NUT, SPRING

90183-050A6-00

Unavailable

30

GROMMET

90480-14003-00

Unavailable

31

COLLAR

90387-06260-00

Unavailable

32

BOLT

90111-06040-00

Unavailable

33

SEAT 1

BN6-2838G-00-00

Unavailable

34

PANEL 1

BN6-2835U-00-P1

Unavailable

35

GROMMET

90480-14003-00

Unavailable

36

COLLAR

90387-06260-00

Unavailable

37

BOLT

90111-06040-00

Unavailable

38

NUT, SPRING

90183-050A6-00

Unavailable

39

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$5.86

40

RIVET

90269-06001-00

Unavailable

41

DAMPER 2

BN6-28416-00-00

Unavailable

42

DAMPER

5YT-24665-00-00

Unavailable

43

COVER 1

BN6-28219-00-00

Unavailable

44

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$5.86

45

COVER, UNDER 2

BN6-28395-00-P1

Unavailable

46

NUT, SPRING

90183-050A6-00

Unavailable

47

GROMMET

90480-14003-00

Unavailable

48

COLLAR

90387-06260-00

Unavailable

49

BOLT

90111-06040-00

Unavailable

50

SEAT 2

BN6-2848K-00-00

Unavailable

51

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$5.86

52

PANEL 2

BN6-2835V-00-P1

Unavailable

53

NUT, SPRING

90183-050A6-00

Unavailable

54

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$5.86

55

RIVET

90269-06001-00

Unavailable

56

DAMPER, PLATE

90520-30007-00

Unavailable

57

DAMPER 4

BN6-28435-00-00

Unavailable

58

COVER 2

BN6-28229-00-00

Unavailable

59

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$5.86

60

BRACKET 4

BN6-2836G-00-00

Unavailable

61

BOLT, FLANGE

95817-06014-00

Unavailable

62

PANEL, INNER 1

BN6-2836K-00-00

Unavailable

63

NUT, SPRING

90183-050A6-00

Unavailable

64

PANEL, INNER 2

BN6-2836L-00-00

Unavailable

65

RIVET

90269-06008-00

Unavailable

66

PANEL, INNER 3

BN6-2836M-00-00

Unavailable

67

RIVET

90269-06008-00

Unavailable

68

STAY 2

BN6-28357-00-00

Unavailable

69

BOLT

90111-05003-00

Unavailable
