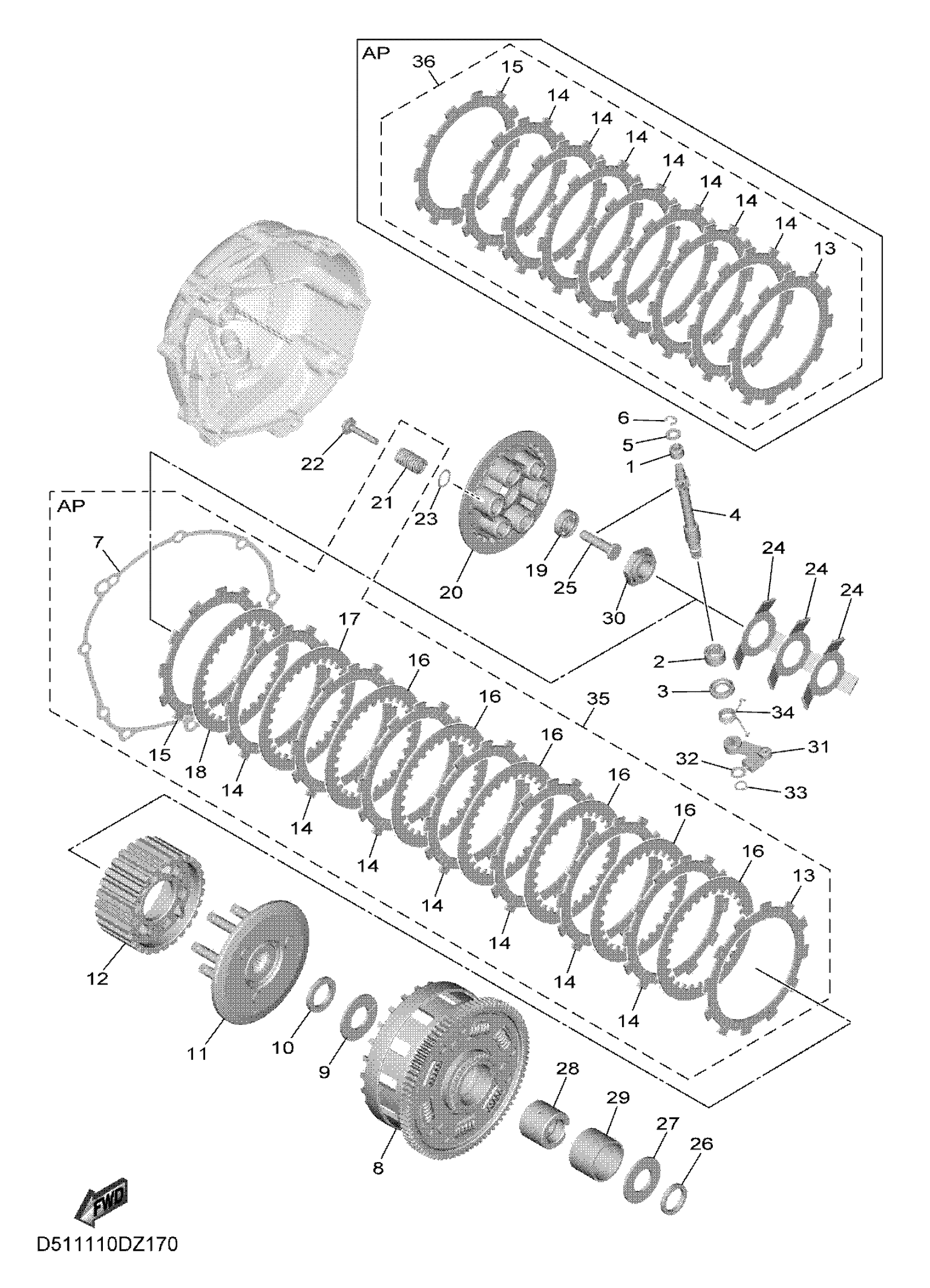

Yamaha YZFR6WSB (YZFR6 RACE) D512 2025 CLUTCH Diagram

#

Description
Price

1

BEARING

93317-11096-00

$23.99

2

BEARING

93315-21570-00

$16.99

3

OIL SEAL (3X3)

93102-15212-00

$9.49

4

AXLE, PUSH LEVER

2C0-16382-00-00

Unavailable

5

WASHER(6TA)

92907-08600-00

$3.03

6

CIRCLIP

99080-07600-00

Unavailable

7

GASKET, CRANKCASE COVER 2

2C0-15461-01-00

$28.99

8

PRIMARY DRIVEN GEAR COMP.

2C0-16150-10-00

$787.99

9

PLATE, THRUST 1

2C0-16154-00-00

$77.99

10

WASHER, CONICAL SPRING

90208-25002-00

Unavailable

11

PRESSURE PLATE ASSY 2

13S-16360-00-00

Unavailable

12

CLUTCH BOSS ASSY

13S-16370-00-00

Unavailable

13

PLATE, FRICTION

5SL-16321-00-00

$25.99

14

PLATE, FRICTION

5LV-16321-20-00

$29.99

15

PLATE, FRICTION

4FN-16321-00-00

Unavailable

16

PLATE, CLUTCH 1

3J2-16324-10-00

Unavailable

17

PLATE, CLUTCH 1

168-16324-10-00

Unavailable

17

PLATE, CLUTCH 1

3J2-16324-10-00

Unavailable

18

PLATE, CLUTCH 1

168-16324-10-00

Unavailable

18

PLATE, CLUTCH 2

168-16325-10-00

Unavailable

18

PLATE, CLUTCH 1

3J2-16324-10-00

Unavailable

19

BRG,R-B 6001 28MM 28G KY

93306-00105-00

Unavailable

20

PLATE, PRESSURE 1

2C0-16351-00-00

Unavailable

21

SPRING, COMPRESSION

90501-220A2-00

Unavailable

22

SCREW, WITH WASHER

90159-06024-00

Unavailable

23

PLATE, SEAT

2C0-16384-00-00

Unavailable

24

SPRING

2S3-16539-01-00

Unavailable

25

ROD, PUSH 1

2C0-16356-00-00

Unavailable

26

PLATE, THRUST 2

2C0-16164-00-00

Unavailable

27

PLATE, THRUST 2

1AE-16164-00-00

Unavailable

28

COLLAR

90387-25024-00

Unavailable

29

BEARING, CYLINDRICAL(1FN)

93310-340N8-00

Unavailable

30

NUT, LOCK

2C0-16377-00-00

Unavailable

31

PUSH LEVER ASSY

2C0-16340-01-00

Unavailable

32

WASHER, PLATE

90201-10029-00

Unavailable

33

CIRCLIP(10W)

99009-10400-00

Unavailable

34

SPRING, TORSION

90508-16052-00

Unavailable

35

CLUTCH PLATE KIT

BN6-W001G-01-00

Unavailable

36

FRICTION PLATE KIT

BN6-W001M-00-00

Unavailable
