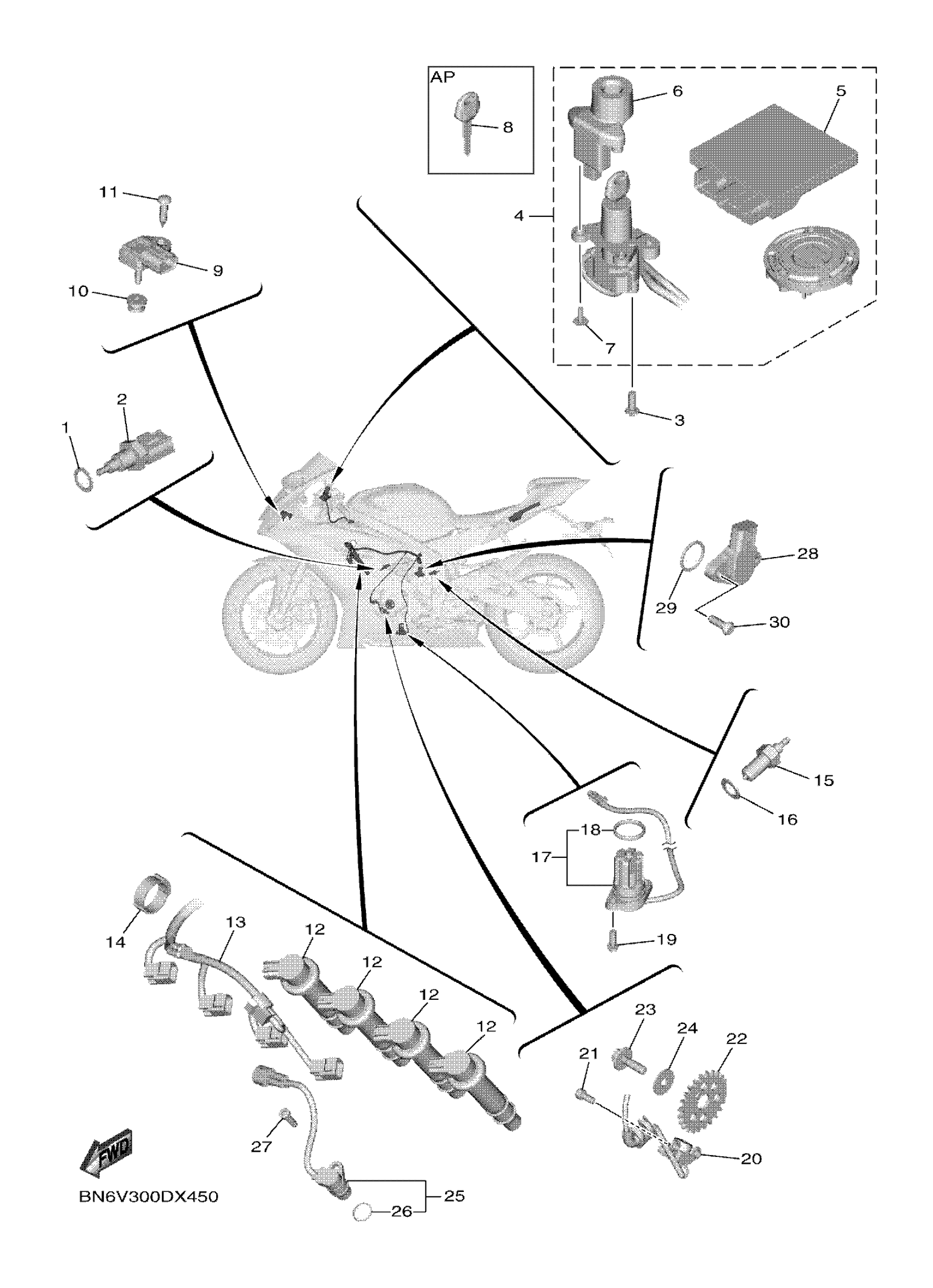

Yamaha YZFR6WRB (YZFR6 RACE) D511 2024 ELECTRICAL 1 Diagram

#

Description
Price

1

WASHER, PLATE

90201-12790-00

$9.49

2

THERMOSENSOR ASSY

5YP-85790-00-00

$64.99

3

BOLT

90109-08196-00

$8.49

4

MAIN SW. IMMOBILIZER KIT

BN6-W8250-50-00

Unavailable

5

ENGINE CONTROL UNI

BN6-8591A-01-00

Unavailable

6

IMMOBILIZER. UNIT COMP.

BN6-8255P-30-00

Unavailable

7

SCREW

5SL-82113-01-00

Unavailable

8

BLANK KEY

5SL-82511-08-00

Unavailable

9

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

10

GROMMET

90480-08006-00

$3.40

11

SCREW, TAPPING

97780-50620-00

Unavailable

12

IGNITION COIL ASSY

BN6-82310-00-00

$124.99

13

WIRE, SUB LEAD

BN6-82309-00-00

Unavailable

14

CLAMP

90464-28003-00

$4.46

15

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

16

GASKET (1KH,1.0T)

90430-10148-00

Unavailable

17

OIL LEVEL GAUGE ASSY

5VX-85720-01-00

Unavailable

18

O-RING

5VY-8A8E0-00-00

Unavailable

19

BOLT, FLANGE

95022-06016-00

Unavailable

20

PICK-UP ASSY

BN6-81670-03-00

Unavailable

21

BOLT (33M)

91312-06014-00

Unavailable

22

ROTOR

2C0-81673-01-00

Unavailable

23

BOLT, WASHER BASED

90105-08113-00

Unavailable

24

WASHER, PLATE

90201-08054-00

Unavailable

25

SENSOR, CAM POSITION

5VY-85896-02-00

Unavailable

26

O-RING

4D9-81168-00-00

Unavailable

27

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

28

SENSOR, GEAR POSITION

2CR-85899-10-00

Unavailable

29

O-RING

93210-17008-00

Unavailable

30

SCREW

90149-05038-00

Unavailable
