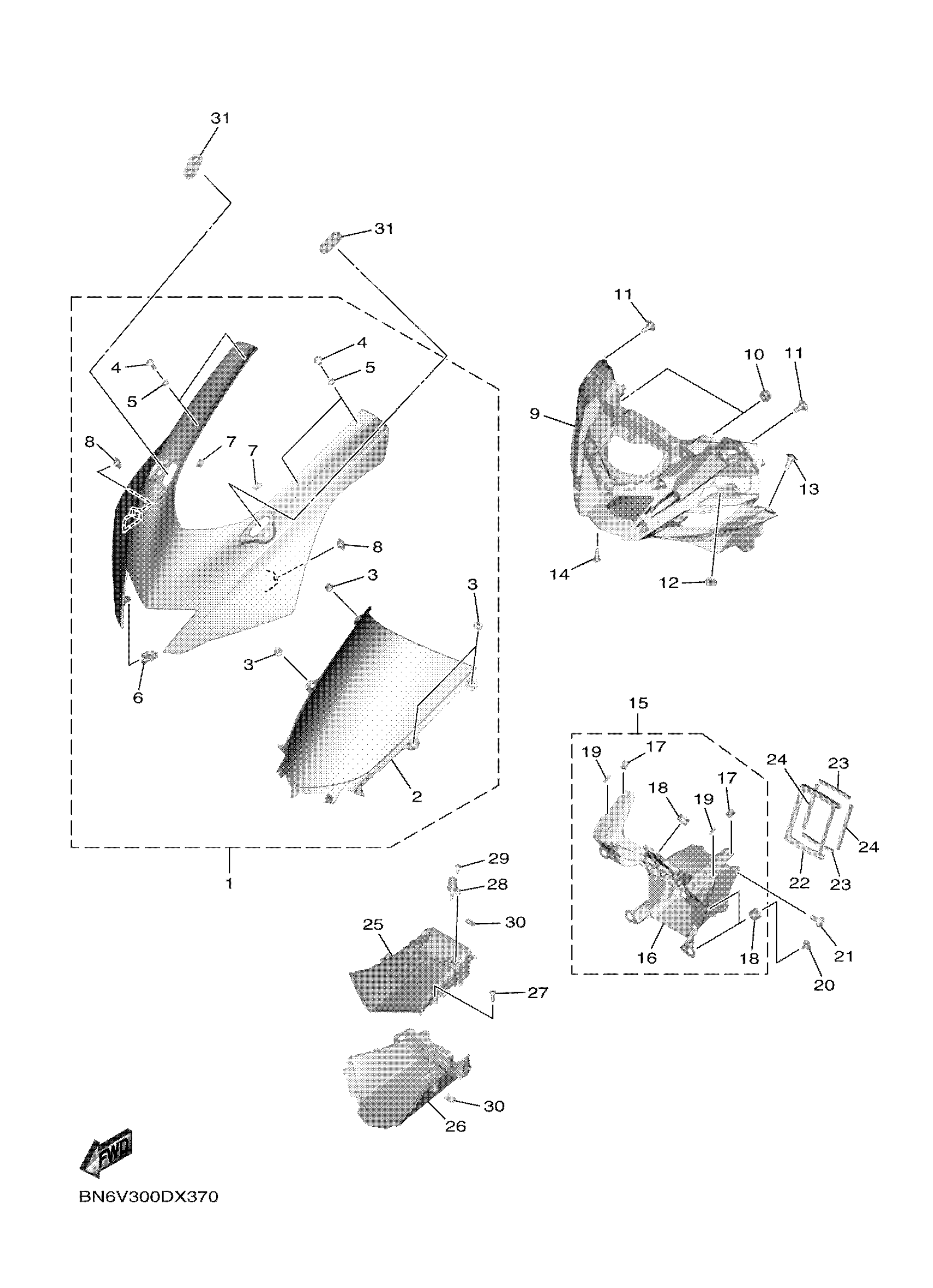

Yamaha YZFR6WRB (YZFR6 RACE) D511 2024 COWLING 1 Diagram

#

Description
Price

1

BODY, FRONT UPPER 1

BN6-Y283G-W0-P1

Unavailable

2

WINDSHIELD

BN6-28381-00-00

$111.99

3

NUT(1KT)

90179-05523-00

$8.49

4

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

5

. WASHER, PLATE

90202-05088-00

Unavailable

6

CLAMP

90464-07018-00

$0.65

7

HOOK 1

20S-2814H-11-00

$3.17

8

NUT, SPRING

90183-060A6-00

$5.49

9

BODY, COWLING

BN6-2830A-00-00

Unavailable

10

GROMMET

90480-10003-00

$8.49

11

BOLT

90109-06061-00

$11.49

12

NUT, SPRING

90183-050A6-00

$8.49

13

BOLT

90109-06061-00

$11.49

14

RIVET

90269-06008-00

$9.49

15

LEG SHIELD STAY SET

BN6-28320-00-00

$299.99

16

STAY 1

BN6-28356-00-00

Unavailable

17

HOOK 1

20S-2814H-11-00

$3.17

18

DAMPER

4XV-83513-00-00

Unavailable

19

PLATE, FOOTREST

1HX-27415-00-00

Unavailable

20

SCREW, ROUND TAPPING

90160-05006-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

22

JOINT

2C0-28342-02-00

Unavailable

23

DAMPER 1

2C0-28217-00-00

Unavailable

24

DAMPER 2

2C0-28227-00-00

Unavailable

25

DUCT 2

BN6-2838R-01-00

Unavailable

26

DUCT 3

BN6-2838T-01-00

Unavailable

27

SCREW, TRUSS TAP.

97707-40016-00

Unavailable

28

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

29

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

30

DAMPER 2

51Y-21639-00-00

Unavailable

31

PLATE, MIRROR FITTING 1

4C8-26298-00-00

Unavailable
