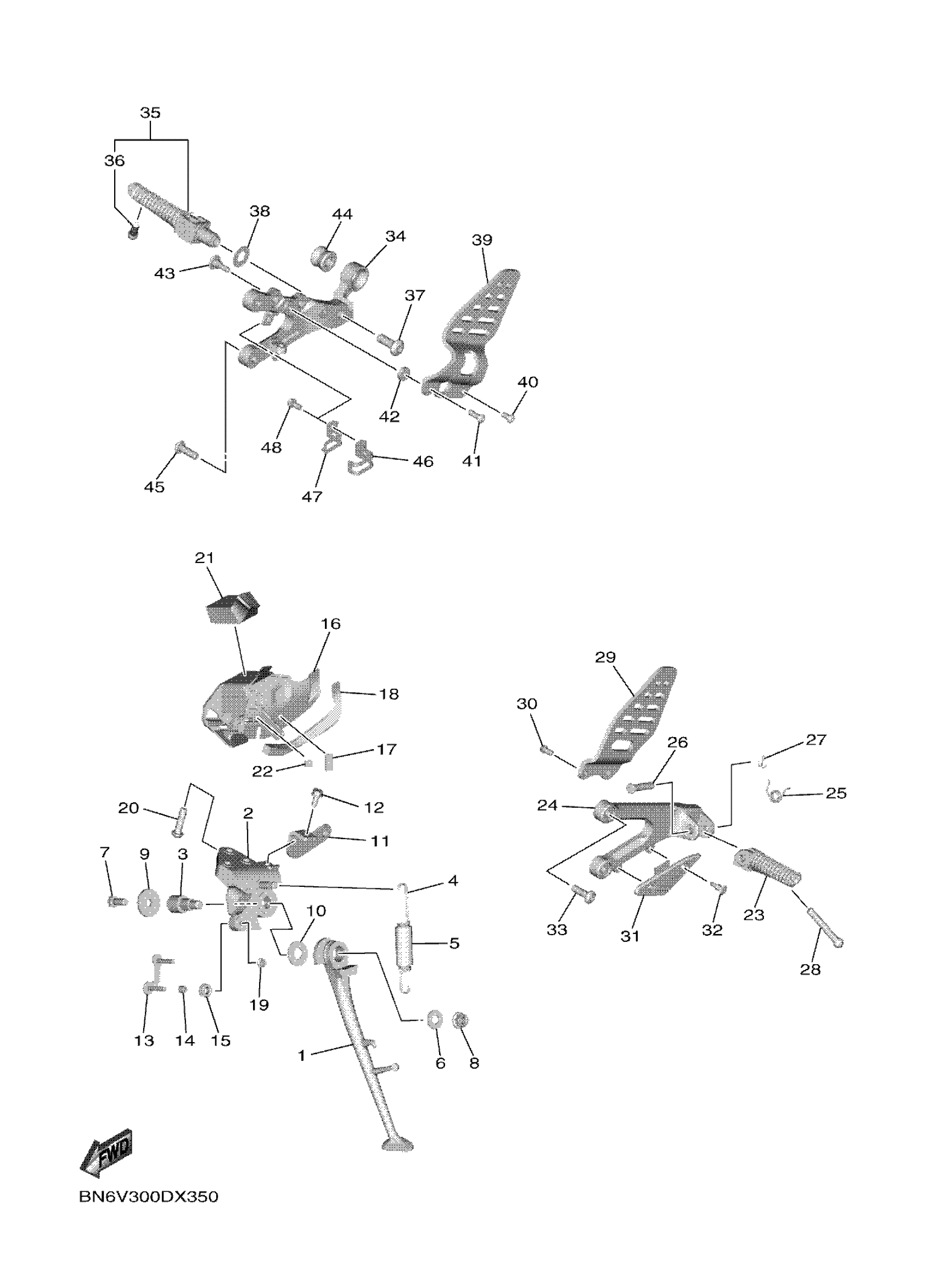

Yamaha YZFR6WPB (YZFR6 RACE) BN6W 2023 STAND & FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

2C0-27311-10-00

$294.99

2

BRACKET, SIDE STAND

2C0-27321-10-00

Unavailable

3

GUIDE, SIDE STAND

2C0-27351-00-00

$63.99

4

SPRING, TENSION

90506-18008-00

$15.99

5

HOSE (L60)

90445-19002-00

$7.49

6

WASHER, PLATE

90201-10035-00

$4.19

7

BOLT, HEXAGON

97017-08020-00

$9.49

8

NUT, S/L FLANGE

95602-10200-00

$4.82

9

WASHER, PLATE

90201-08050-00

$5.60

10

WASHER, PLATE (22F)

90201-146F9-00

$7.49

11

BRACKET 3

13S-2836F-00-00

Unavailable

12

BOLT, FLANGE

95817-06014-00

Unavailable

13

BRACKET 1

BN6-27263-00-00

Unavailable

14

COLLAR

90387-05025-00

$7.49

15

GROMMET

90480-11006-00

$4.41

16

COVER 1

BN6-27453-00-00

Unavailable

17

DAMPER, FOOTREST

2C0-27414-00-00

Unavailable

18

DAMPER, PLATE

90520-10031-00

Unavailable

19

NUT, S/L FLANGE

95607-05200-00

Unavailable

20

BOLT, BUTTON HEAD

92012-08030-00

Unavailable

21

DAMPER 3

2C0-28425-00-00

Unavailable

22

DAMPER, RUBBER 1

2C0-21485-00-00

Unavailable

23

FOOTREST

1KB-27451-00-00

Unavailable

24

BRACKET 2

2C0-27442-10-00

Unavailable

25

SPRING, TORSION

90508-18134-00

Unavailable

26

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable

28

BOLT

90109-08235-00

Unavailable

29

PLATE 1

2C0-27445-10-00

Unavailable

30

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

31

PROTECTOR

2C0-27491-01-00

Unavailable

32

RIVET

90269-06008-00

Unavailable

33

BOLT

90109-085G6-00

Unavailable

34

BRACKET 3

2C0-27443-10-00

Unavailable

35

FRONT FOOTREST ASSY (RIGHT)

BN6-27420-00-00

Unavailable

36

BOLT

90109-08225-00

Unavailable

37

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

38

WASHER, CLAW

90214-13002-00

Unavailable

39

PLATE 2

13S-27446-10-00

Unavailable

40

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

41

BOLT

90111-06046-00

Unavailable

42

COLLAR

90387-06215-00

Unavailable

43

BOLT(4BP)

90109-066F0-00

Unavailable

44

DAMPER, MUFFLER

2C0-14747-00-00

Unavailable

45

BOLT

90109-085G6-00

Unavailable

46

BRACKET 8

2C0-2116K-00-00

Unavailable

47

BRACKET 9

2C0-2116L-00-00

Unavailable

48

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable
