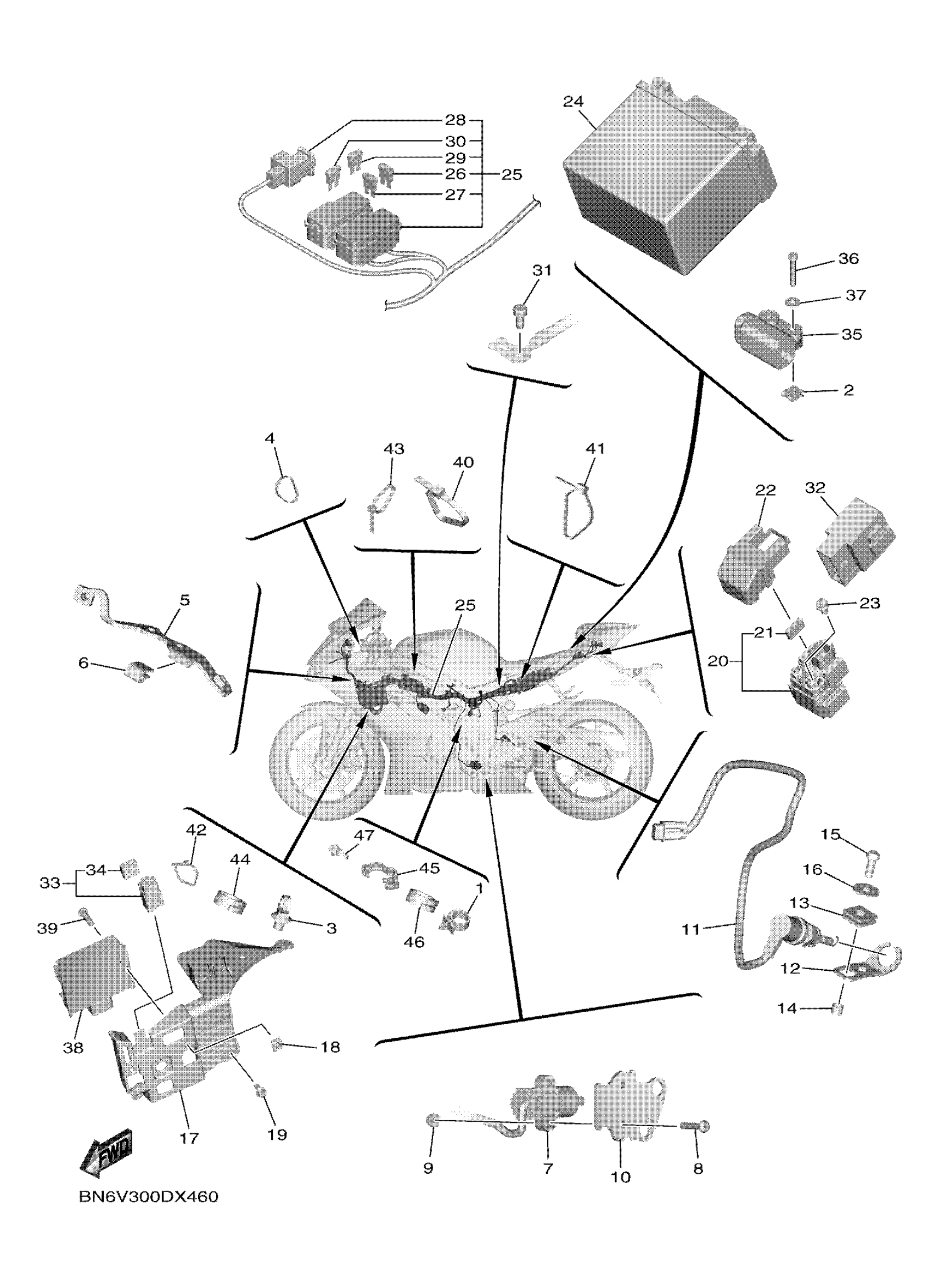

Yamaha YZFR6WPB (YZFR6 RACE) BN6W 2023 ELECTRICAL 2 Diagram

CLAMP

90464-17008-00

$2.28

NUT, SPRING(47R)

90183-04039-00

$7.49

CLAMP

90464-30010-00

$2.17

BAND

1UA-82591-00-00

$4.78

BRACKET, HORN

BN6-23377-00-00

Unavailable

DAMPER

5RU-2139X-00-00

$2.24

SWITCH, SIDE STAND

BN6-82566-01-00

Unavailable

BOLT, BUTTON HEAD

92012-05025-00

$7.49

NUT, S/L FLANGE

95607-05200-00

$9.49

BRACKET, SENSOR 1

2C0-27961-00-00

Unavailable

STOP SWITCH ASSY

BN6-82530-01-00

$36.99

STAY, STOP SWITCH

13S-2144G-00-00

Unavailable

GROMMET(4SV)

90480-12607-00

$9.49

COLLAR 8121444900

90387-06023-00

$9.49

BOLT, BUTTON HEAD

92017-06016-00

$8.49

WASHER, PLATE

90201-06380-00

Unavailable

BRACKET 5

BN6-2836H-00-00

Unavailable

NUT, SPRING(4ES)

90183-06069-00

Unavailable

BOLT, FLANGE DEEP RECESS

95D02-06014-00

Unavailable

STARTER RELAY ASSY

2CR-81940-00-00

Unavailable

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

BOLT, FLANGE

95022-06008-00

Unavailable

BATTERY ASSY (YTZ7S(F))

5TJ-82100-01-00

Unavailable

WIRE HARNESS ASSY

BN6-82590-01-00

Unavailable

FUSE (15A)

67F-82151-50-00

Unavailable

. FUSE (10A)

67F-82151-40-00

Unavailable

FUSE (50A)

5JW-82151-10-00

Unavailable

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

FUSE (2A-BL)

5JJ-82151-80-00

Unavailable

BOLT

91380-06012-00

Unavailable

RELAY ASSY

5VK-81950-43-00

Unavailable

RELAY ASSY

1TP-81950-00-00

Unavailable

HOLDER,RELAY

5EA-81952-00-00

Unavailable

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

BOLT,SOCKET

91317-04025-00

Unavailable

WASHER, PLATE

90201-042E0-00

Unavailable

RECTIFIER & REGULATOR ASSY

BN6-81960-00-00

Unavailable

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

BAND

1UA-82591-00-00

$4.78

BAND

1UA-82591-00-00

$4.78

BAND

1UA-82591-00-00

$4.78

CLAMP

90464-13077-00

Unavailable

CLAMP

90464-16001-00

Unavailable

CLAMP

90464-14010-00

Unavailable

CLAMP

90464-16003-00

Unavailable

CLAMP

90464-30011-00

Unavailable
