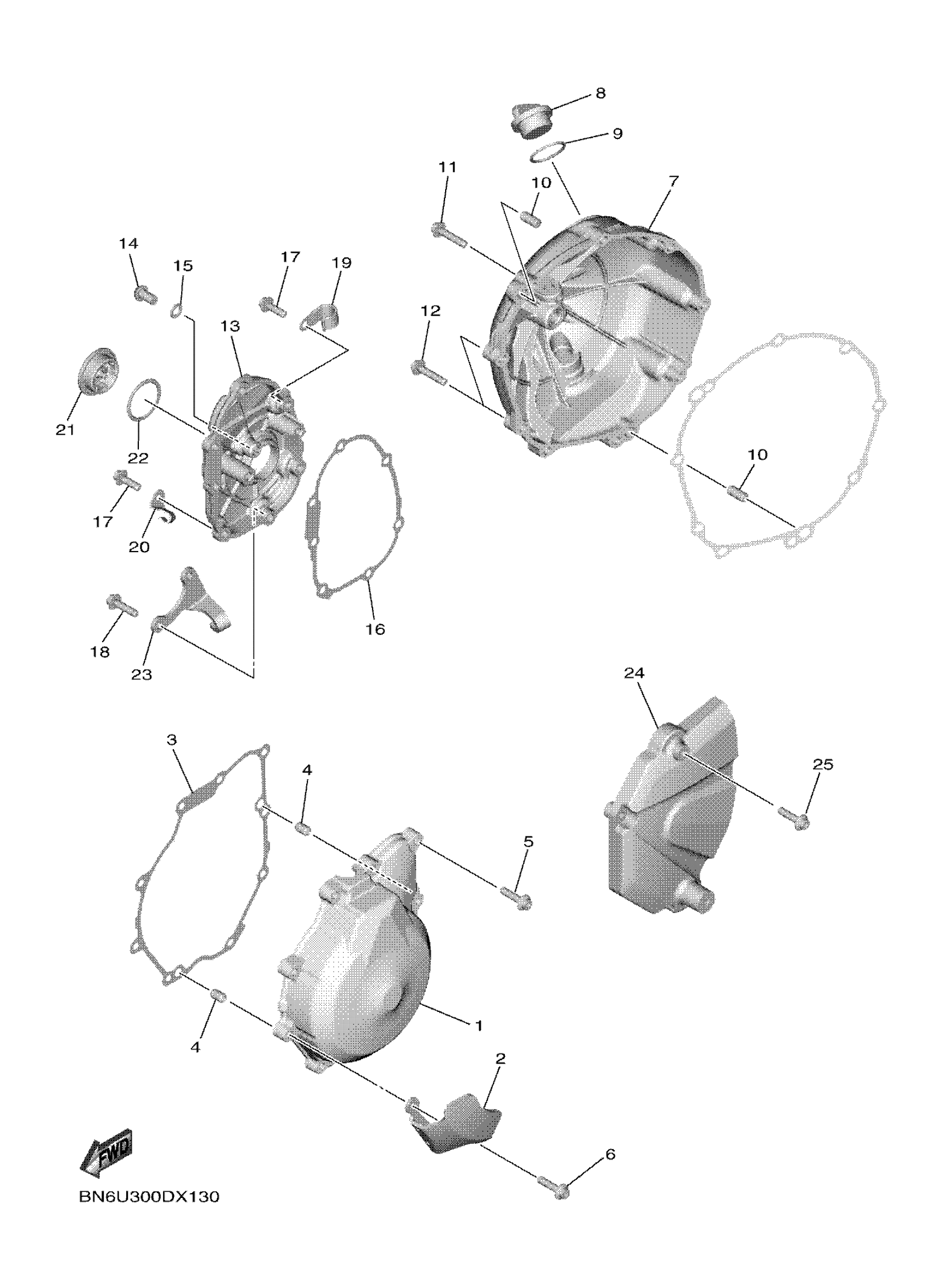

Yamaha YZFR6WPB (YZFR6 RACE) BN6W 2023 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

2C0-15411-01-00

$152.99

2

COVER ASSY

BN6-15490-00-00

$129.99

3

GASKET, CRANKCASE COVER 1

2C0-15451-01-00

$18.49

4

PIN, DOWEL

99530-08012-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

6

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

7

COVER, CRANKCASE 2

2C0-15421-00-00

Unavailable

8

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

9

O-RING(1KT)

93210-27778-00

$8.49

10

PIN, DOWEL

93608-17263-00

$2.92

11

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

12

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

13

COVER, OIL PUMP

2C0-15416-00-00

$164.99

14

BOLT, BUTTON HEAD

92014-08014-00

$8.49

15

. GASKET

90430-08143-00

Unavailable

16

GASKET, OIL PUMP COVER 1

2C0-15456-01-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

19

CLAMP

90465-08395-00

Unavailable

20

CLAMP, HOSE

2C0-21823-00-00

Unavailable

21

PLUG, STRAIGHT SCREW

90340-32004-00

Unavailable

22

O-RING (341)

93210-32172-00

Unavailable

23

HOLDER, CLUTCH CABLE

2C0-15441-00-00

Unavailable

24

COVER, CHAIN CASE

2C0-15418-00-00

Unavailable

25

BOLT

90109-06015-00

Unavailable
