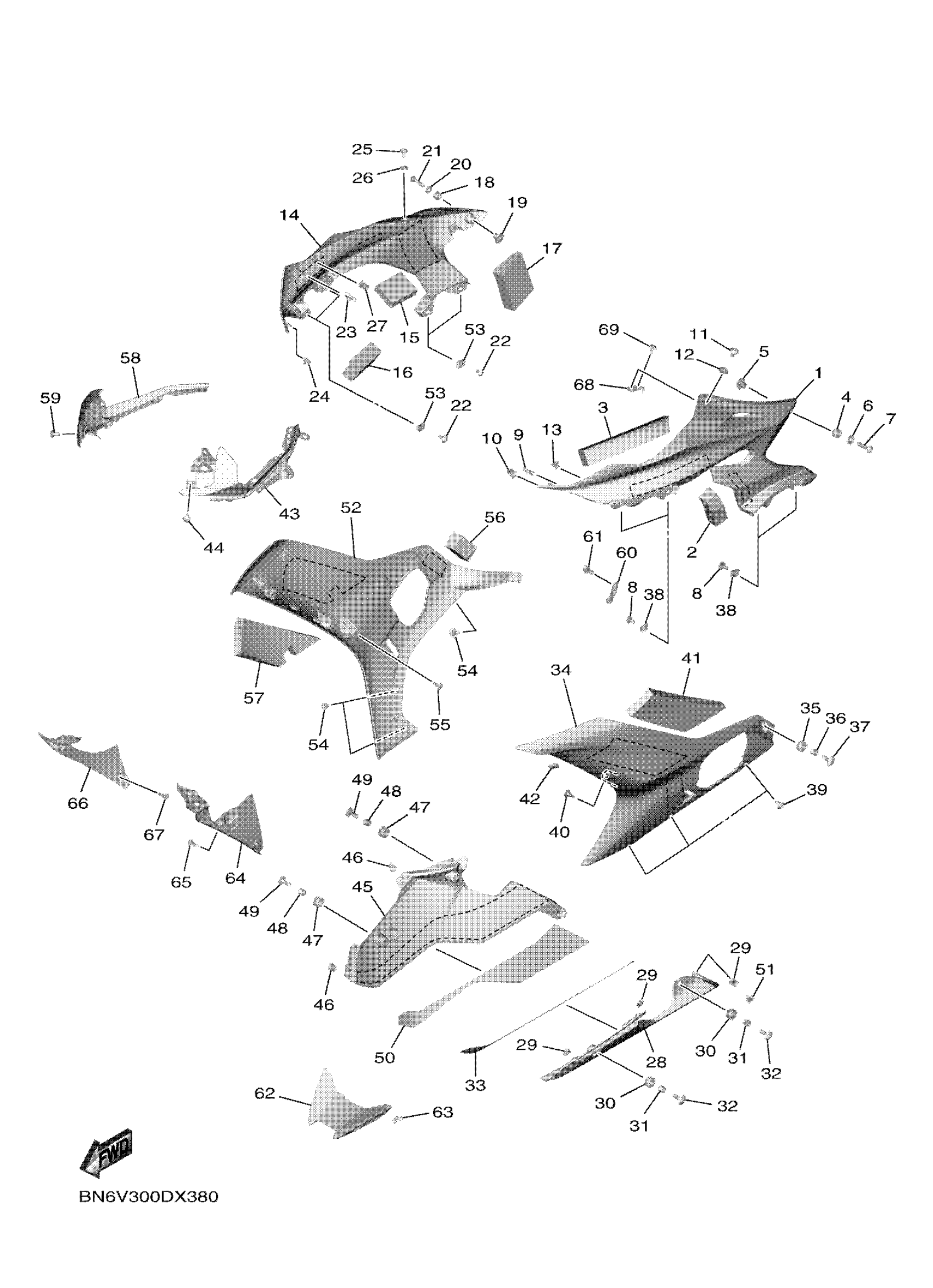

Yamaha YZFR6WPB (YZFR6 RACE) BN6W 2023 COWLING 2 Diagram

#

Description
Price

1

COVER 7

BN6-2117V-00-P1

$344.99

2

DAMPER, PLATE

90520-30002-00

$1.91

3

SEAL 12

7CH-22889-00-00

$1.87

4

GROMMET

90480-12613-00

$24.99

5

COLLAR(36Y)

90387-067K8-00

$7.49

6

WASHER, PLATE 8087752500

90201-07081-00

$10.49

7

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

8

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

9

NUT, SPRING

90183-060A6-00

$5.49

10

CLAMP

90464-07018-00

$0.65

11

SCREW(3XV)

90149-06298-00

$5.60

12

WASHER, PLATE (35R)

90201-060H9-00

$4.72

13

CLIP

90468-04001-00

$0.69

14

COVER 8

BN6-2117W-00-P1

Unavailable

15

DAMPER, PLATE

90520-60001-00

$1.91

16

DAMPER, PLATE

90520-30008-00

Unavailable

17

SEAL 26

7CH-2289T-00-00

Unavailable

18

GROMMET

90480-12613-00

$24.99

19

COLLAR(36Y)

90387-067K8-00

$7.49

20

WASHER, PLATE 8087752500

90201-07081-00

$10.49

21

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

22

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

23

NUT, SPRING

90183-060A6-00

$5.49

24

CLAMP

90464-07018-00

$0.65

25

SCREW(3XV)

90149-06298-00

$5.60

26

WASHER, PLATE (35R)

90201-060H9-00

$4.72

27

CLIP

90468-04001-00

$0.69

28

COVER, UNDER

BN6-28385-00-P1

Unavailable

29

NUT, SPRING

90183-050A6-00

Unavailable

30

GROMMET

90480-14003-00

Unavailable

31

COLLAR

90387-06260-00

Unavailable

32

BOLT

90111-06040-00

Unavailable

33

SEAT 1

BN6-2838G-00-00

Unavailable

34

PANEL 1

BN6-2835U-00-P1

Unavailable

35

GROMMET

90480-14003-00

Unavailable

36

COLLAR

90387-06260-00

Unavailable

37

BOLT

90111-06040-00

Unavailable

38

NUT, SPRING

90183-050A6-00

Unavailable

39

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

40

RIVET

90269-06001-00

Unavailable

41

DAMPER 2

BN6-28416-00-00

Unavailable

42

DAMPER

5YT-24665-00-00

Unavailable

43

COVER 1

BN6-28219-00-00

Unavailable

44

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

45

COVER, UNDER 2

BN6-28395-00-P1

Unavailable

46

NUT, SPRING

90183-050A6-00

Unavailable

47

GROMMET

90480-14003-00

Unavailable

48

COLLAR

90387-06260-00

Unavailable

49

BOLT

90111-06040-00

Unavailable

50

SEAT 2

BN6-2848K-00-00

Unavailable

51

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

52

PANEL 2

BN6-2835V-00-P1

Unavailable

53

NUT, SPRING

90183-050A6-00

Unavailable

54

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

55

RIVET

90269-06001-00

Unavailable

56

DAMPER, PLATE

90520-30007-00

Unavailable

57

DAMPER 4

BN6-28435-00-00

Unavailable

58

COVER 2

BN6-28229-00-00

Unavailable

59

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

60

BRACKET 4

BN6-2836G-00-00

Unavailable

61

BOLT, FLANGE

95817-06014-00

Unavailable

62

PANEL, INNER 1

BN6-2836K-00-00

Unavailable

63

NUT, SPRING

90183-050A6-00

Unavailable

64

PANEL, INNER 2

BN6-2836L-00-00

Unavailable

65

RIVET

90269-06008-00

Unavailable

66

PANEL, INNER 3

BN6-2836M-00-00

Unavailable

67

RIVET

90269-06008-00

Unavailable

68

STAY 2

BN6-28357-00-00

Unavailable

69

BOLT

90111-05003-00

Unavailable
