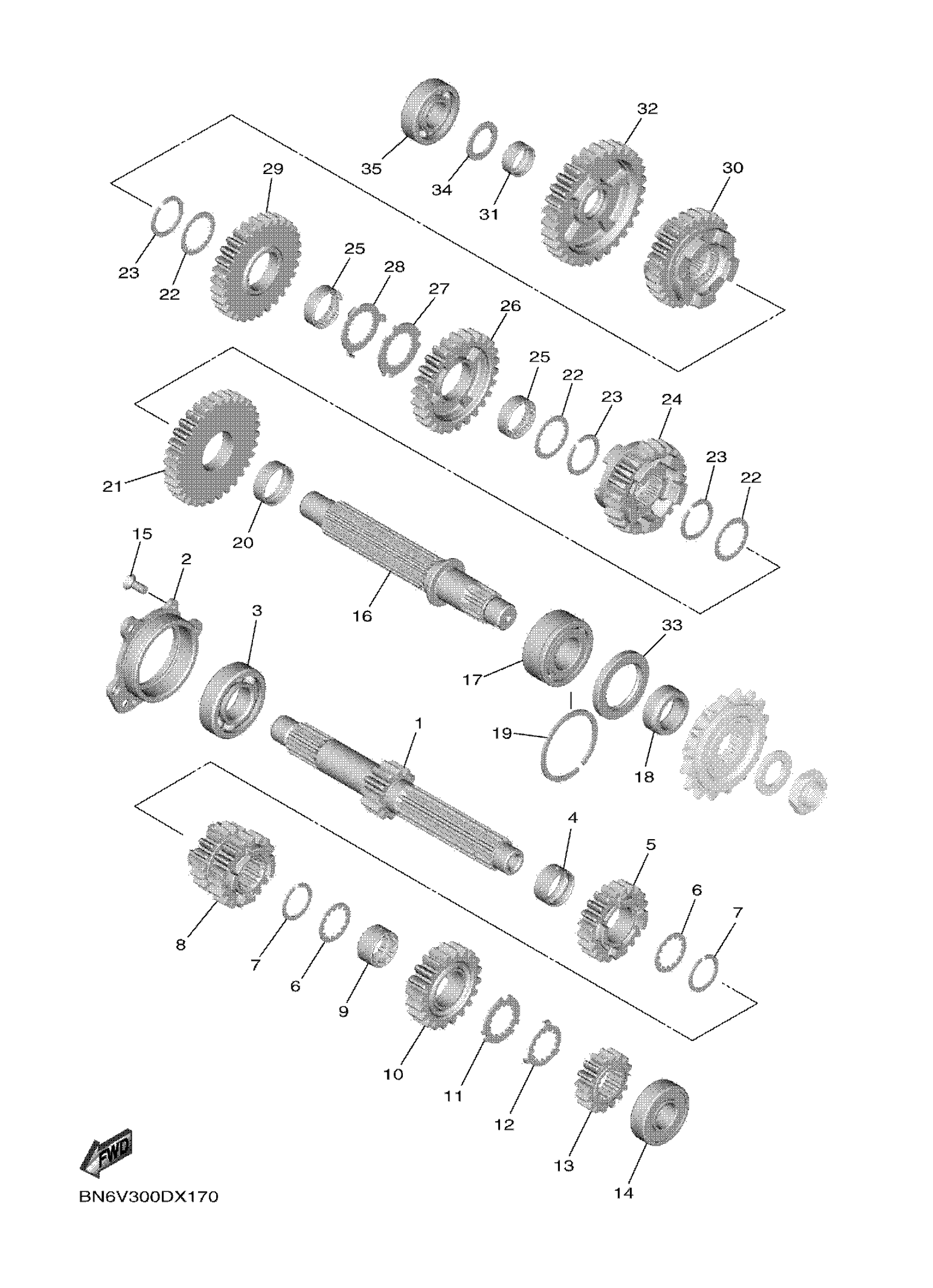

Yamaha YZFR6WNB (YZFR6 GYTR) BN6V 2022 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

2C0-17411-00-00

Unavailable

2

HOUSING, BEARING 1

2C0-15163-00-00

Unavailable

3

BEARING(43G)

93306-20562-00

$46.99

4

COLLAR(1UX)

90387-250R3-00

$30.99

5

GEAR, 5TH PINION

13S-17151-00-00

$116.99

6

WASHER(3VD)

90209-21332-00

$7.49

7

CIRCLIP

93440-25186-00

$7.49

8

GEAR, 3RD PINION

13S-17131-00-00

$215.99

9

COLLAR

90387-21003-00

Unavailable

10

GEAR, 6TH PINION

13S-17161-10-00

Unavailable

11

WASHER

90209-22352-00

$20.99

12

WASHER

90209-21351-00

$12.49

13

GEAR, 2ND PINION

13S-17121-10-00

Unavailable

14

BEARING(3LD)

93306-20464-00

Unavailable

15

SCREW, COUNTERSUNK

90151-06023-00

$8.49

16

AXLE, DRIVE

13S-17421-00-00

Unavailable

17

BEARING(89A)

93305-20509-00

Unavailable

18

COLLAR

90387-25016-00

Unavailable

19

CIRCLIP (256)

93440-52014-00

Unavailable

20

COLLAR

90387-28011-00

Unavailable

21

GEAR, 2ND WHEEL

13S-17221-00-00

Unavailable

22

WASHER

90209-25011-00

Unavailable

23

CIRCLIP

93440-28184-00

Unavailable

24

GEAR, 6TH WHEEL

2C0-17261-00-00

Unavailable

25

COLLAR

90387-25015-00

Unavailable

26

GEAR, 4TH WHEEL

2C0-17241-00-00

Unavailable

27

WASHER, CLAW

90214-25004-00

Unavailable

28

WASHER, CLAW

90214-25003-00

Unavailable

29

GEAR, 3RD WHEEL

2C0-17231-00-00

Unavailable

30

GEAR, 5TH WHEEL

13S-17251-00-00

Unavailable

31

COLLAR

90387-21004-00

Unavailable

32

GEAR, 1ST WHEEL

2C0-17211-00-00

Unavailable

33

OIL SEAL

93102-35017-00

Unavailable

34

WASHER PLATE 168171160000

90201-20278-00

Unavailable

35

BEARING(3LD)

93306-20464-00

Unavailable
