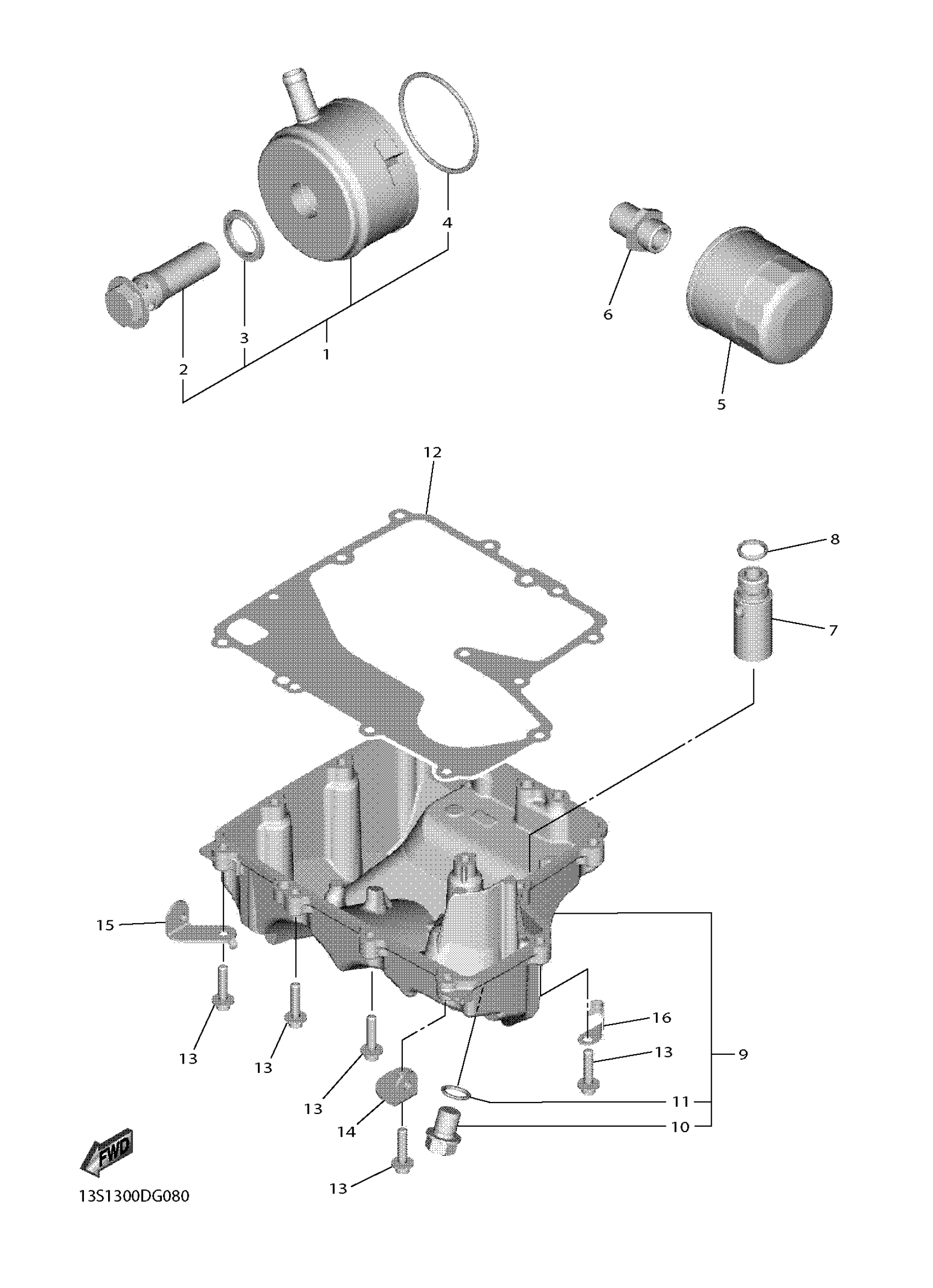

Yamaha YZFR6WNB (YZFR6 GYTR) BN6V 2022 OIL CLEANER Diagram

#

Description
Price

1

OIL COOLER ASSY

13S-13470-00-00

Unavailable

2

BOLT, UNION

5EB-12822-00-00

$74.99

3

GASKET

5EB-13475-00-00

$18.49

4

O-RING

5JW-13473-00-00

$42.99

5

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

6

BOLT, UNION

90401-20012-00

$17.99

7

RELIEF VALVE ASSY

2C0-13490-00-00

$102.99

8

O-RING (22U)

93210-15566-00

$7.49

9

STRAINER COVER ASSY

2C0-13400-00-00

Unavailable

10

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

11

GASKET

214-11198-01-00

$3.17

12

GASKET, STRAINER COVER

2C0-13414-01-00

$28.99

13

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

14

BRACKET 1

13S-2836A-00-00

$11.99

15

BRACKET 2

13S-2836E-00-00

$10.99

16

CLAMP

90465-10040-00

Unavailable
