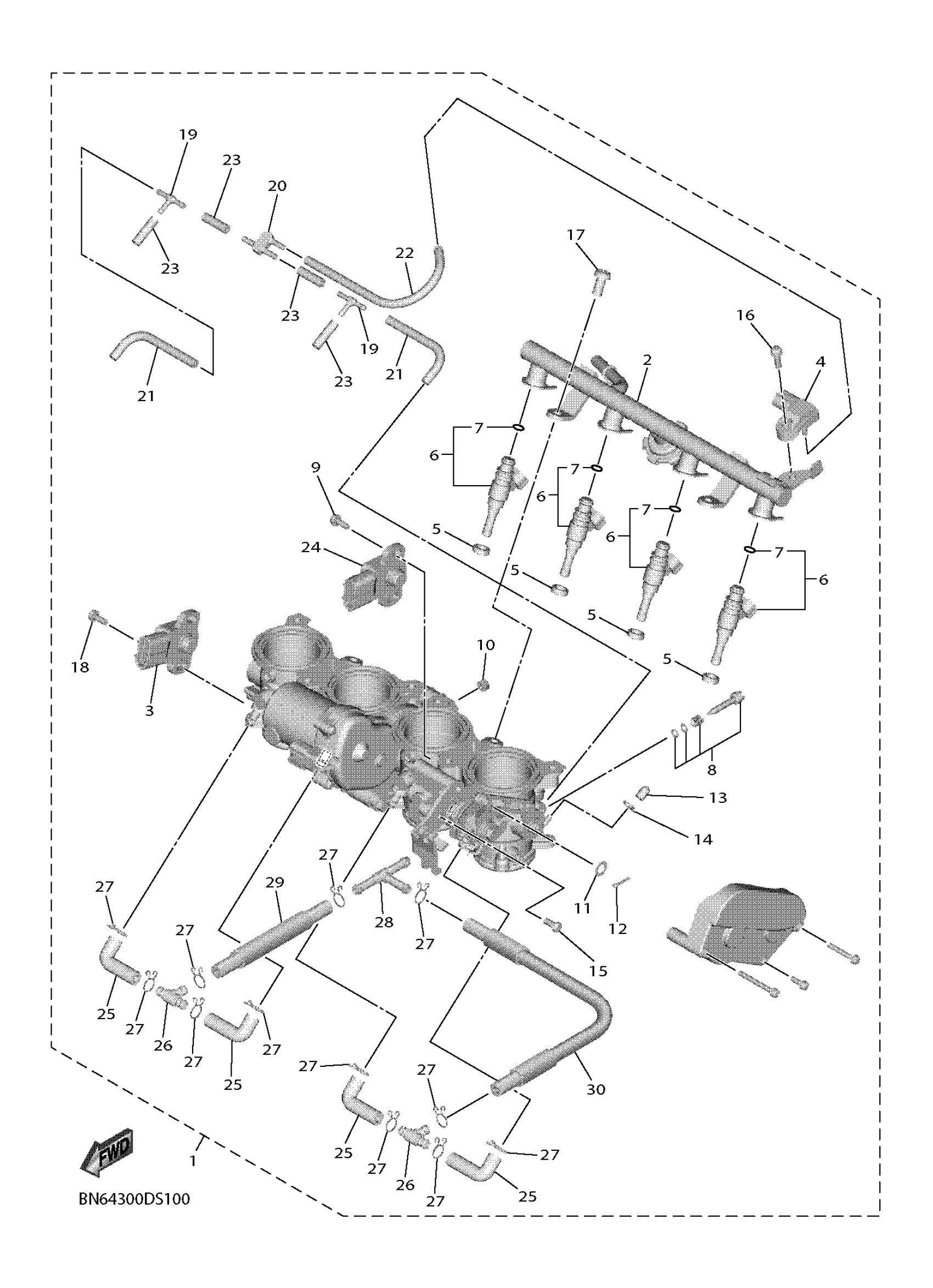

Yamaha YZFR6WNB (YZFR6 GYTR) BN6V 2022 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

BN6-13750-21-00

Unavailable

2

PIPE INLET ASSEMBLY

13S-13930-00-00

Unavailable

3

THROTTLE SENSOR AS

13S-85885-01-00

$114.75

4

SENSOR, PRESSURE

1WS-82380-00-00

$159.59

5

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

6

INJECTOR ASSY

2C0-13761-00-00

$312.73

7

O-RING

5PS-14147-00-00

$8.68

8

PILOT SCREW SET

2C0-14105-00-00

$30.09

9

SCREW

5FL-14216-00-00

$3.64

10

NUT(4CH)

95307-04700-00

Unavailable

11

WASHER

22U-14952-00-00

$2.98

12

PIN, COTTER

91492-12010-00

$1.98

13

CAP

895-14169-00-00

$3.73

14

CLIP, PIPE

8A7-14139-00-00

$6.34

15

SCREW, PAN

98517-05012-00

$3.65

16

SCREW

2C0-14216-00-00

Unavailable

17

SCREW, PAN

98517-06012-00

Unavailable

18

SCREW

8CC-14216-10-00

Unavailable

19

. PIPE, JOINT 1

68V-24376-00-00

$13.59

20

NIPPLE

3XV-14251-00-00

Unavailable

21

. HOSE, VACUUM SENSING 4

68V-13533-00-00

$10.70

22

HOSE, VACUUM SENSING 3

2C0-13532-00-00

Unavailable

23

PIPE 1

5FL-14348-10-00

Unavailable

24

ACCELERATOR SENSOR

1MC-85884-01-00

$109.25

25

PIPE 1

BN6-14348-00-00

Unavailable

26

WAY 3

90413-06031-00

Unavailable

27

CLIP

90467-100A1-00

Unavailable

28

WAY (70R)

90413-08012-00

Unavailable

29

HOSE

90445-10060-00

Unavailable

30

PIPE

BN6-14465-00-00

Unavailable
