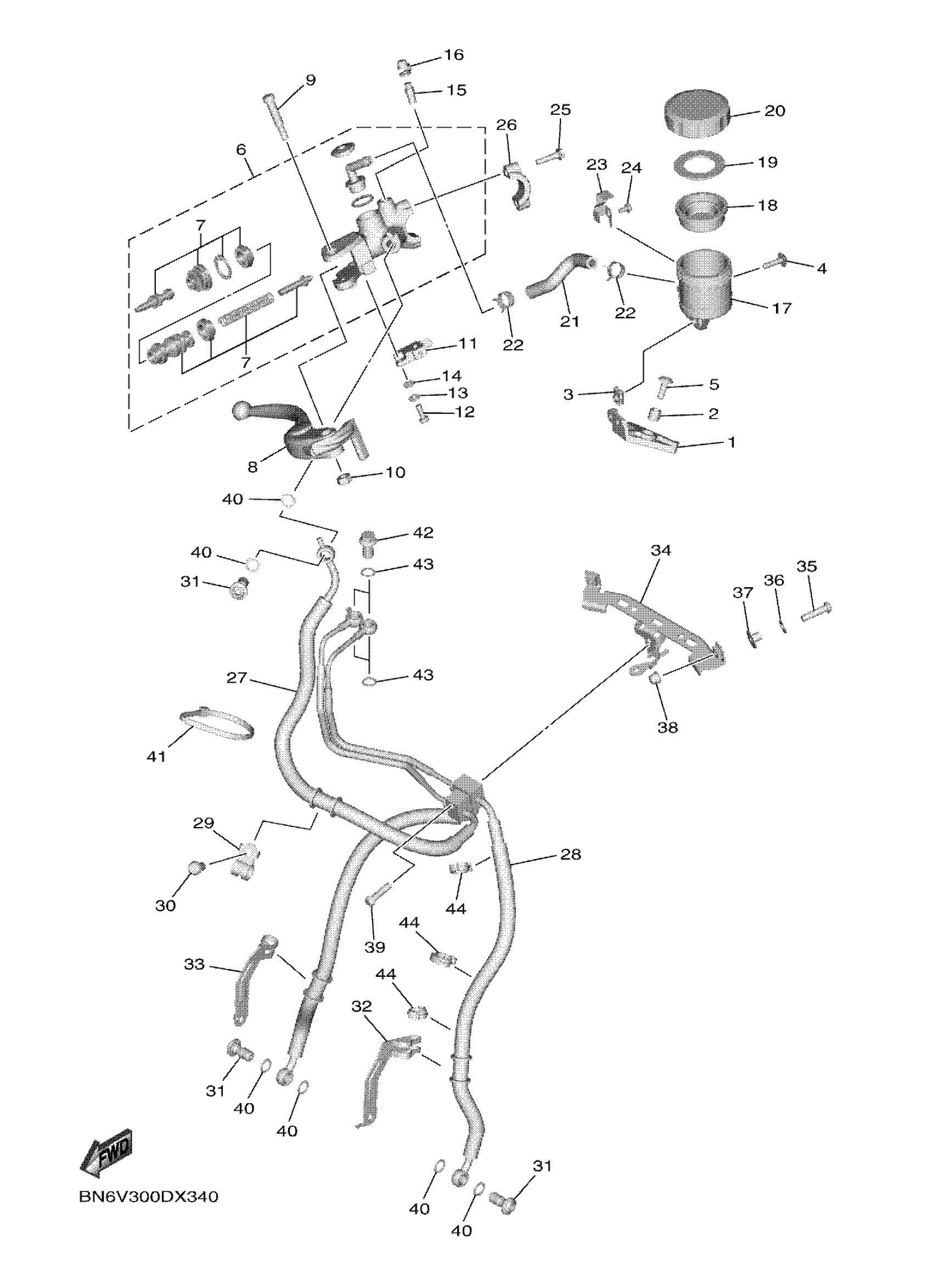

Yamaha YZFR6WNB (YZFR6 GYTR) BN6V 2022 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

STAY

13S-26292-01-00

$11.99

2

COLLAR

90387-06057-00

$8.49

3

NUT, SPRING

90183-050A0-00

$5.60

4

BOLT,HEX. SOCKET BUTTON

90111-05026-00

$8.49

5

BOLT

90111-06041-00

$8.49

6

MASTER CYLINDER SUB ASSY 2

2CR-2580A-00-00

$176.99

7

CYLINDER KIT, MASTER

2CR-25807-00-00

$56.99

8

LEVER 2

2CR-83922-00-00

$88.99

9

BOLT, LEVER

2CR-2589F-00-00

$6.99

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

FRONT STOP SWITCH ASSY

2CR-83980-02-00

$35.99

12

SCREW, PAN HEAD

98511-04012-00

Unavailable

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

WASHER, PLAIN (646)

92990-04600-00

$5.99

15

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

16

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

17

TANK, RESERVOIR

2CR-25894-00-00

Unavailable

18

DIAPHRAGM, RESERVOIR

3FV-25854-00-00

Unavailable

19

BUSH,DIAPHRAGM

2CR-25855-00-00

Unavailable

20

CAP, RESERVOIR

3GM-25852-50-00

Unavailable

21

HOSE, RESERVOIR

BN6-25895-00-00

Unavailable

22

CLIP(3FV)

90467-12085-00

Unavailable

23

HOLDER

2CR-2589G-00-00

Unavailable

24

SCREW, WITH WASHER

3GM-2589H-00-00

Unavailable

25

BOLT

5EB-26332-00-00

Unavailable

26

BRACKET, MASTER CY

2CR-25867-00-00

Unavailable

41

BAND

3MA-82591-00-00

Unavailable

44

CLAMP

90464-14003-00

Unavailable
