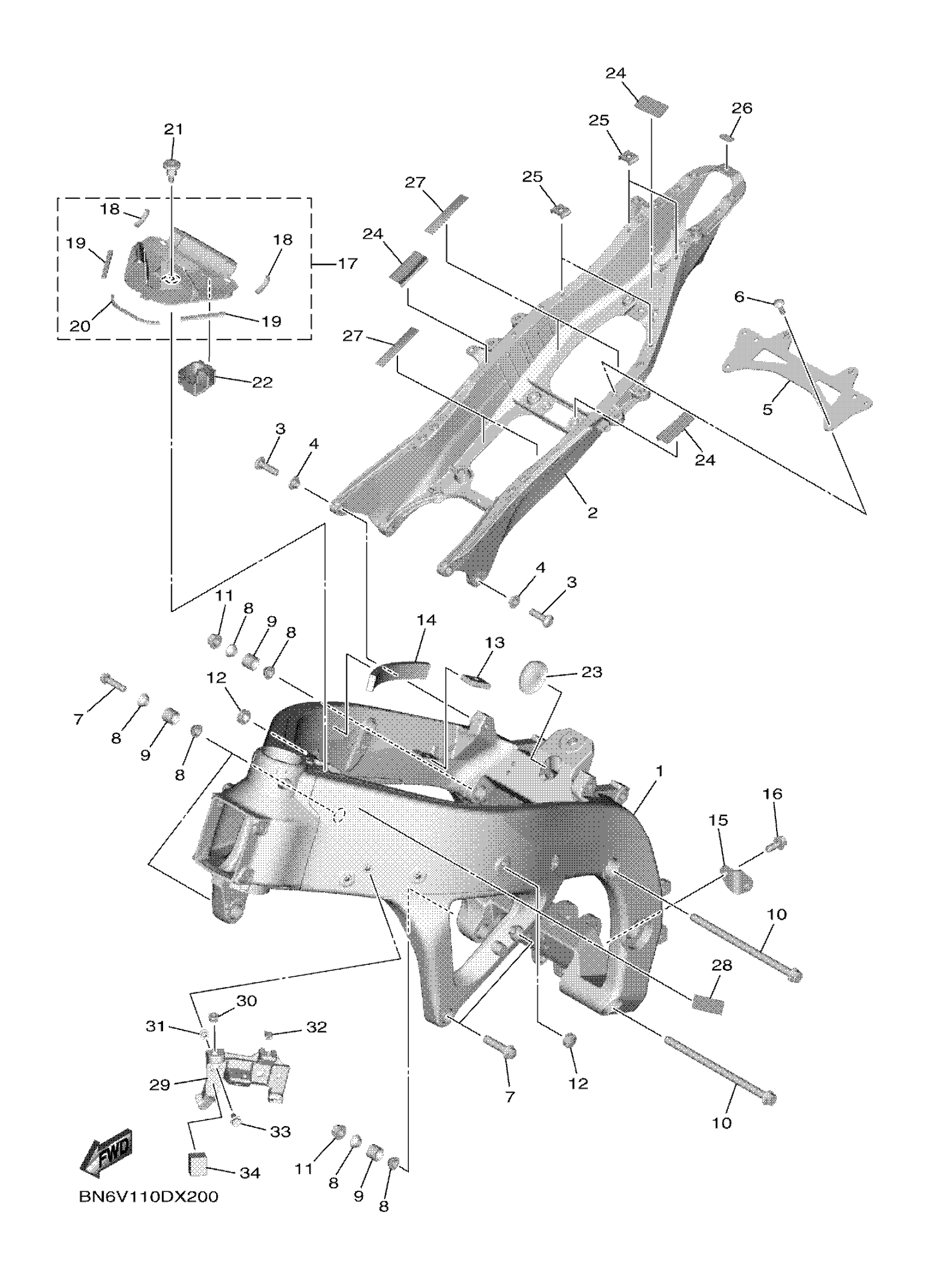

Yamaha YZFR6WNB (YZFR6 GYTR) BN6V 2022 FRAME Diagram

#

Description
Price

1

FRAME COMP.

BN6-21110-00-00

Unavailable

2

REAR FRAME COMP.

BN6-21190-00-00

Unavailable

3

SCREW

90149-10003-00

$9.49

4

COLLAR

2CR-21116-00-00

$18.49

5

REINF. COMP.

BN6-21670-00-00

Unavailable

6

BOLT,HEX. SOCKET B

90111-06155-00

$2.12

7

BOLT, SMALL FLANGE

95024-10040-00

$3.76

8

BOSS, ENGINE MOUNT

13S-21414-00-00

$30.99

9

BOSS, ENGINE MOUNT

13S-21424-00-00

$43.99

10

BOLT, WASHER BASED (14A)

90105-12228-00

$19.99

11

Nut

90179-12004-00

$7.49

12

PLUG

90338-15004-00

$8.49

13

DAMPER, LOCATING 2

2C0-24182-00-00

$6.99

14

DAMPER 2

2C0-21486-00-00

$6.99

15

BRACKET, MUFFLER 1

13S-21435-00-00

Unavailable

16

BOLT, FLANGE

95812-08020-00

Unavailable

17

COVER ASSY 1

13S-2110M-00-00

Unavailable

18

DAMPER

13S-2174X-00-00

Unavailable

19

. DAMPER

2C0-2174Y-00-00

Unavailable

20

DAMPER

2C0-21746-00-00

Unavailable

21

RIVET

90269-07010-00

Unavailable

23

PLUG, BLIND

2C0-21279-00-00

Unavailable

24

SEAL 4

4B5-28268-00-00

Unavailable

25

SEAL 3

2CR-22875-01-00

Unavailable

26

SEAL

5SL-21268-00-00

Unavailable

27

SEAL 3

4B5-28238-00-00

Unavailable

28

PLATE, COMPETITION USA

17D-2812P-00-00

Unavailable

29

BRACKET 7

13S-2833A-01-00

Unavailable
