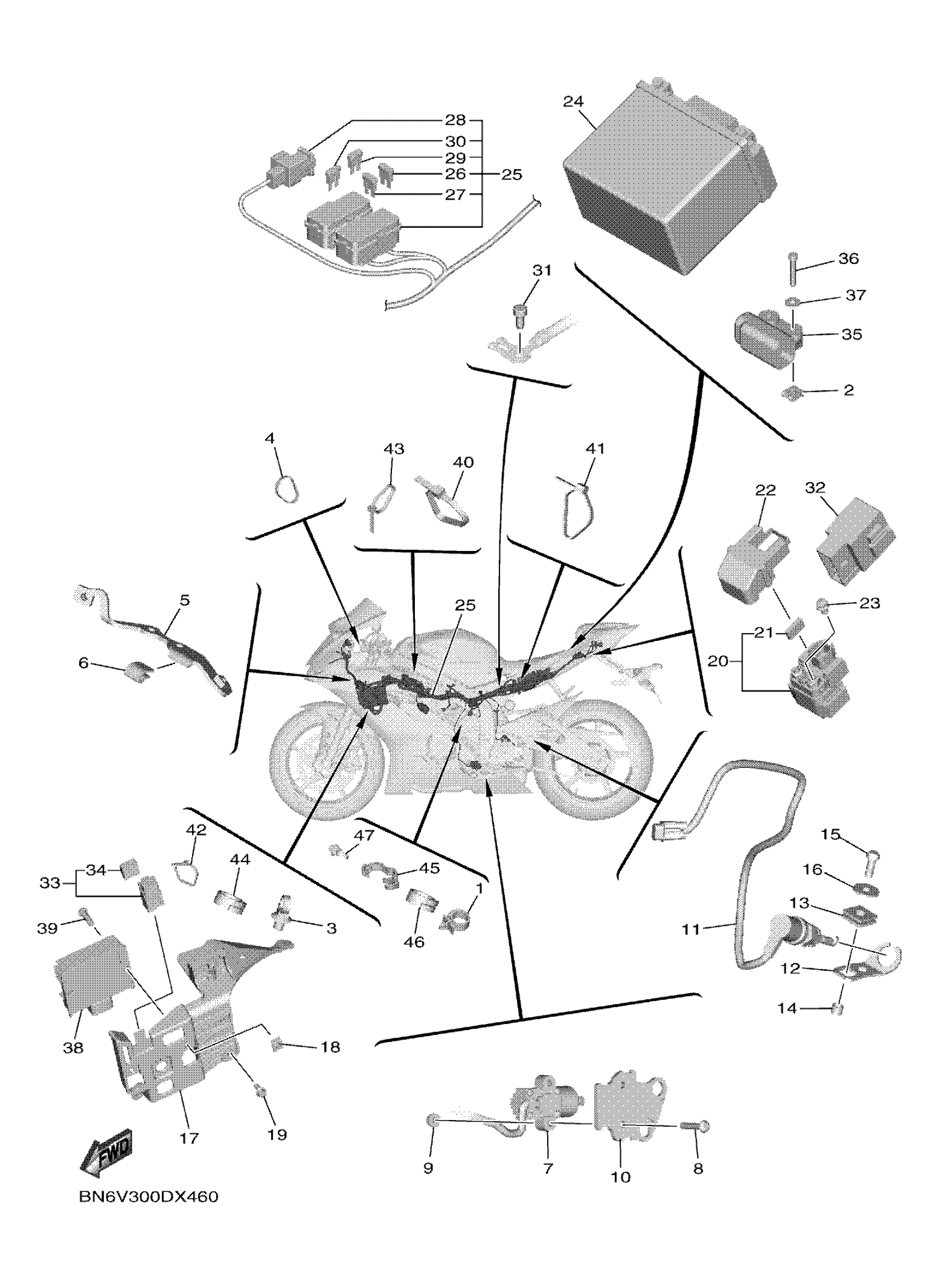

Yamaha YZFR6WNB (YZFR6 GYTR) BN6V 2022 ELECTRICAL 2 Diagram

#

Description
Price

1

CLAMP

90464-17008-00

$1.92

2

NUT, SPRING(47R)

90183-04039-00

$5.50

3

CLAMP

90464-30010-00

$1.43

4

BAND

1UA-82591-00-00

$3.85

5

BRACKET, HORN

BN6-23377-00-00

Unavailable

6

DAMPER

5RU-2139X-00-00

$1.23

20

STARTER RELAY ASSY

2CR-81940-00-00

$49.64

21

FUSE (12V 30A)

1AE-82151-00-00

$5.80

22

COVER, LEAD WIRE

5SL-82119-10-00

$3.79

23

BOLT, FLANGE

95022-06008-00

$5.84

24

BATTERY ASSY (YTZ7S(F))

5TJ-82100-01-00

$197.36

26

FUSE (15A)

67F-82151-50-00

$3.48

27

. FUSE (10A)

67F-82151-40-00

$6.07

28

FUSE (50A)

5JW-82151-10-00

$13.33

29

FUSE (7.5A-BL)

5JJ-82151-00-00

$5.55

30

FUSE (2A-BL)

5JJ-82151-80-00

Unavailable

31

BOLT

91380-06012-00

$1.74

32

RELAY ASSY

5VK-81950-43-00

Unavailable

35

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

36

BOLT,SOCKET

91317-04025-00

Unavailable

37

WASHER, PLATE

90201-042E0-00

Unavailable

40

BAND

1UA-82591-00-00

$3.85

41

BAND

1UA-82591-00-00

$3.85

42

BAND

1UA-82591-00-00

$3.85

43

CLAMP

90464-13077-00

Unavailable

44

CLAMP

90464-16001-00

Unavailable

45

CLAMP

90464-14010-00

Unavailable

46

CLAMP

90464-16003-00

Unavailable

47

CLAMP

90464-30011-00

Unavailable
