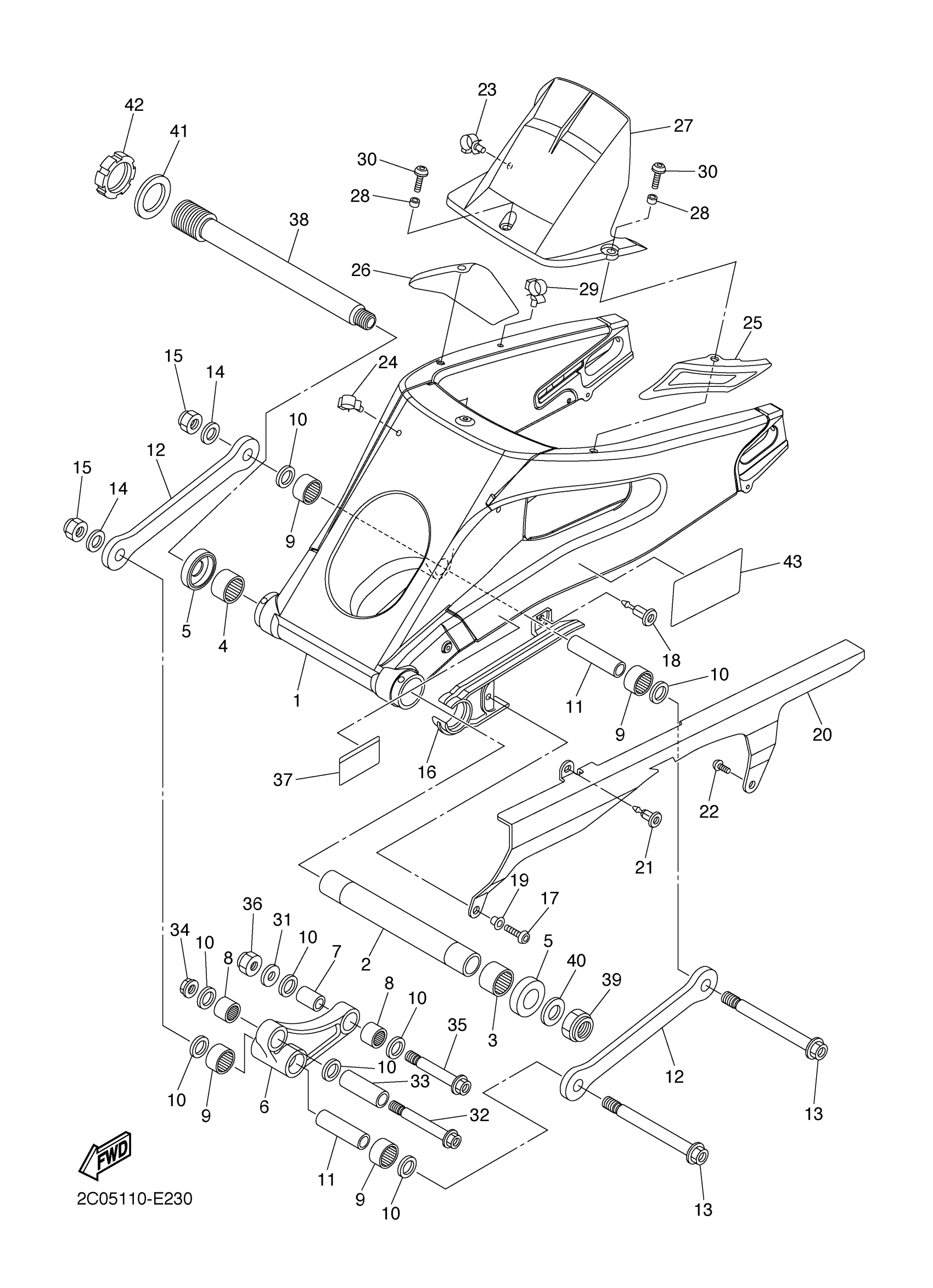

Yamaha YZFR6WC (YZFR6 CA) 2C0G 2007 REAR ARM Diagram
#
2
BUSH
2C0-22184-00-00
Unavailable
5
COVER, THRUST 1
2C0-22128-00-00
Unavailable
6
ARM, RELAY
2C0-2217A-00-00
Unavailable
16
SEAL, GUARD
2C0-22151-00-00
Unavailable
17
BOLT, BUTTON HEAD
92017-06016-00
Unavailable
18
RIVET
90269-07008-00
Unavailable
19
C0LLAR (3JB1)
90387-062X0-00
Unavailable
20
CASE, CHAIN
2C0-22311-01-00
Unavailable
21
RIVET
90269-07007-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD(1FK)
90110-06102-00
Unavailable
23
CLAMP
90464-16012-00
Unavailable
24
CLAMP
90464-16011-00
Unavailable
25
COVER ASSY 1
2C0-228A0-00-00
Unavailable
26
COVER ASSY 2
2C0-228B0-00-00
Unavailable
27
RR. FENDER COVER SET
99999-04338-00
Unavailable
28
COLLAR
90387-06106-00
Unavailable
29
CLAMP
90464-16012-00
Unavailable
30
BOLT
90111-06038-00
Unavailable
32
BOLT
90109-10017-00
Unavailable
33
COLLAR
90387-1012B-00
Unavailable
34
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
35
BOLT
90109-12011-00
Unavailable
37
LABEL, TIRE
5JW-21668-00-00
Unavailable
38
SHAFT, PIVOT
2C0-22141-10-00
Unavailable
39
NUT, SELF-LOCKING
90185-22009-00
Unavailable
40
WASHER, PLATE
90201-22014-00
Unavailable
41
WASHER, PLATE
90201-33014-00
Unavailable
42
NUT
2C0-22252-00-00
Unavailable
43
PLATE, EPA 2 (CALIFORNIA)
2C0-2179R-10-00
Unavailable
43
PLATE, EPA (NON CALIFORNIA)
2C0-2179W-10-00
Unavailable
