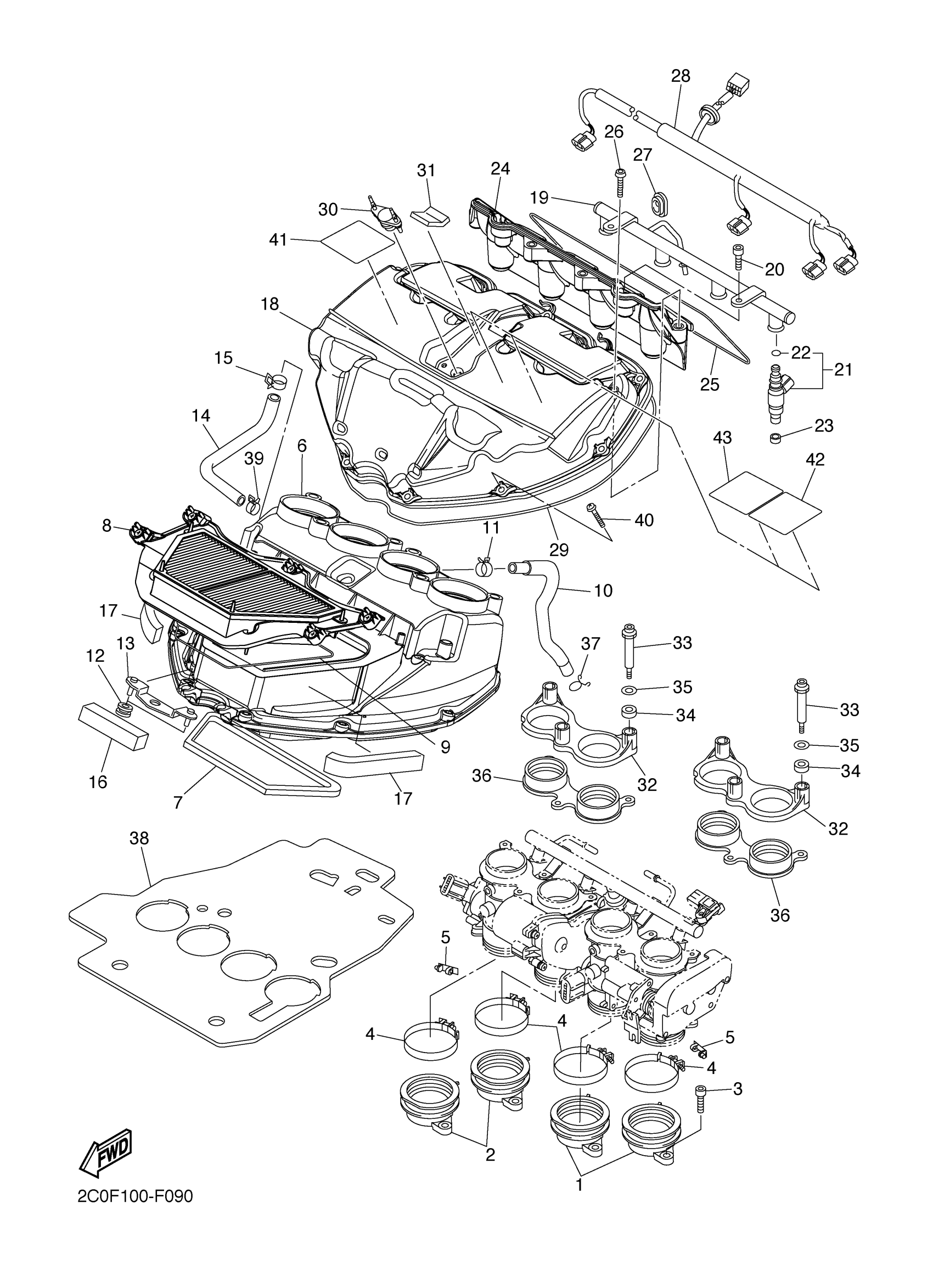

Yamaha YZFR6WC (YZFR6 CA) 2C0G 2007 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
2C0-13586-00-00
Unavailable
6
CASE, AIR CLEANER 1
2C0-14411-00-00
Unavailable
10
PIPE, BREATHER
2C0-15373-00-00
Unavailable
13
STAY 1
5VY-14498-00-00
Unavailable
14
HOSE, BEND 2
2C0-14882-00-00
Unavailable
16
DAMPER
2C0-14409-00-00
Unavailable
17
DAMPER 1
2C0-14425-00-00
Unavailable
18
CASE, AIR CLEANER 2
2C0-14421-00-00
Unavailable
19
PIPE
2C0-13938-00-00
Unavailable
20
BOLT (33M)
91312-06014-00
Unavailable
21
INJECTOR ASSY
2C0-13761-10-00
Unavailable
22
O-RING
5PS-14147-00-00
Unavailable
23
GASKET
90430-09002-00
Unavailable
24
CAP, INJECTOR
2C0-13767-00-00
Unavailable
25
SEAL
51Y-14462-00-00
Unavailable
26
BOLT, BUTTON HEAD
92012-06020-00
Unavailable
27
GROMMET
90480-01020-00
Unavailable
28
WIRE, SUB-LEAD
2C0-82318-00-00
Unavailable
30
GROMMET
2C0-14435-00-00
Unavailable
31
DAMPER 2
2C0-14426-00-00
Unavailable
32
FUNNEL, AIR
2C0-14469-00-00
Unavailable
33
BOLT
90109-05006-00
Unavailable
34
SEAL
2C0-14476-01-00
Unavailable
35
WASHER, PLATE 1562722600
90201-08083-00
Unavailable
36
JOINT
2C0-14454-00-00
Unavailable
37
CLIP (371)
90467-14015-00
Unavailable
38
PROTECTOR, HEAT
2C0-12682-01-00
Unavailable
39
CLIP
90467-180A0-00
Unavailable
40
SCREW, BIND
98902-05025-00
Unavailable
41
PLATE, ROUTING
5VX-21684-00-00
Unavailable
42
PLATE, ROUTING 2
5PW-21686-01-00
Unavailable
43
LABEL
2C0-2178A-00-00
Unavailable
