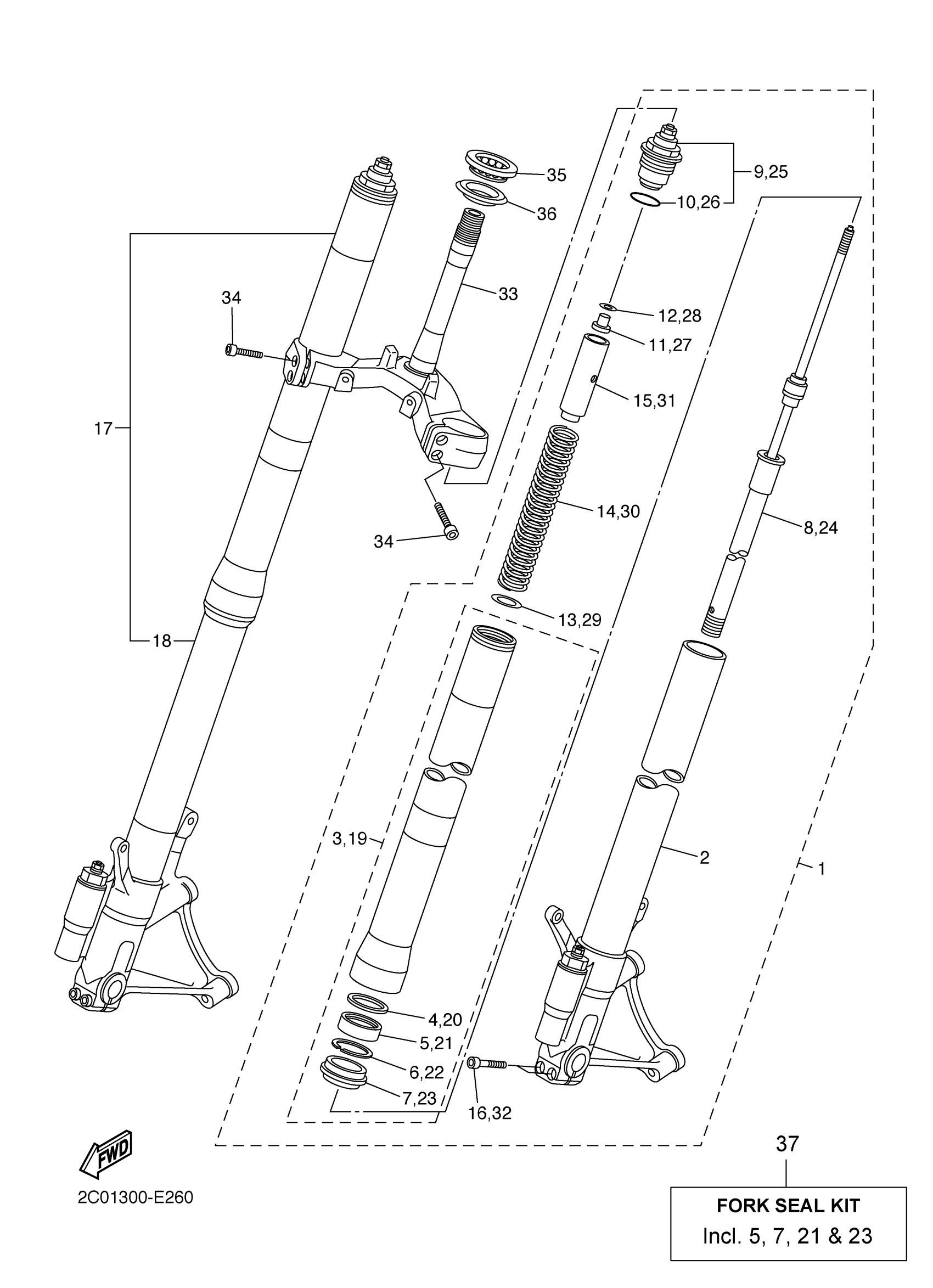

Yamaha YZFR6WC (YZFR6 CA) 2C0G 2007 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L.H)
2C0-23102-02-00
Unavailable
2
INNER TUBE COMP.1
2C0-23110-02-00
Unavailable
3
. OUTER TUBE COMP (LH)
2C0-23106-00-00
Unavailable
8
. CYLINDER COMP, FRONT FORK
2C0-23170-00-00
Unavailable
9
. BOLT, CAP
2C0-23111-00-00
Unavailable
13
SEAT, SPRING LOWER
2C0-23143-00-00
Unavailable
14
. SPRING, FRONT FORK
2C0-23141-00-00
Unavailable
15
. SEAT, SPRING UPPER
2C0-2331L-00-00
Unavailable
16
BOLT,SOCKET
91314-08040-00
Unavailable
17
FRONT FORK ASSY (R.H)
2C0-23103-02-00
Unavailable
18
INNER TUBE COMP.2
2C0-23120-02-00
Unavailable
19
. OUTER TUBE COMP (LH)
2C0-23106-00-00
Unavailable
24
. CYLINDER COMP, FRONT FORK
2C0-23170-00-00
Unavailable
25
. BOLT, CAP
2C0-23111-00-00
Unavailable
29
SEAT, SPRING LOWER
2C0-23143-00-00
Unavailable
30
. SPRING, FRONT FORK
2C0-23141-00-00
Unavailable
31
. SEAT, SPRING UPPER
2C0-2331L-00-00
Unavailable
32
BOLT,SOCKET
91314-08040-00
Unavailable
33
UNDER BRACKET COMP.
2C0-23340-00-00
Unavailable
34
BOLT,SOCKET
91314-08030-00
Unavailable
35
BEARING
93399-99957-00
Unavailable
36
SEAL, STEERING
3FV-23462-00-00
Unavailable
37
FORK SEAL KIT (TWO FORKS)
5VU-W003B-00-00
Unavailable
