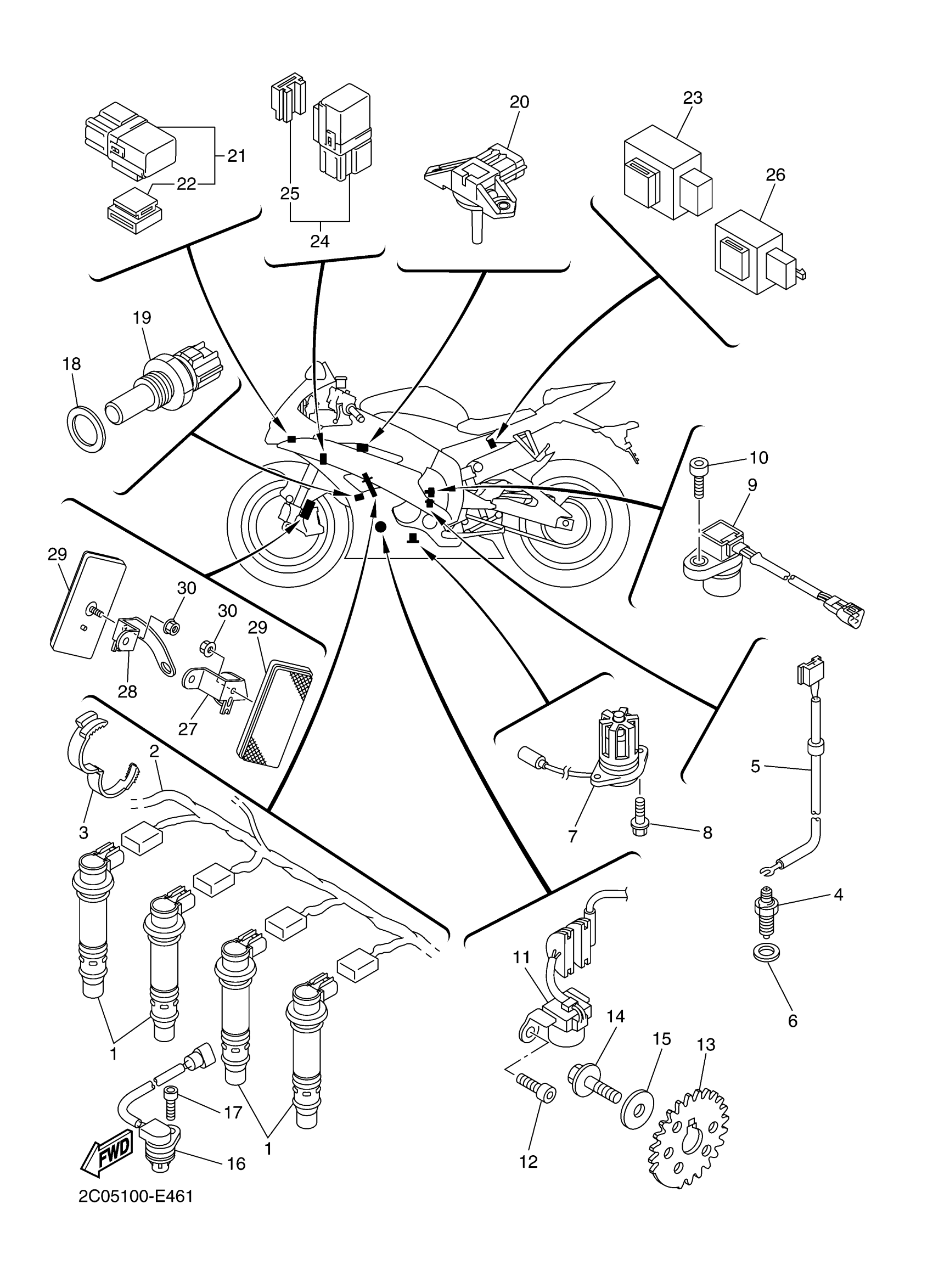

Yamaha YZFR6WC (YZFR6 CA) 2C0G 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

2C0-82310-00-00

$222.99

2

WIRE, SUB LEAD

2C0-82309-00-00

Unavailable

3

CLAMP

90464-28003-00

$4.46

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

5

WIRE, LEAD

2C0-82541-00-00

$16.49

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

OIL LEVEL GAUGE ASSY

5VX-85720-01-00

$216.99

8

BOLT, FLANGE

95022-06016-00

$3.62

9

SENSOR, SPEED

4WM-83755-03-00

$129.99

10

BOLT(3MA)

91312-06016-00

$5.60

11

PICK-UP ASSY

2C0-81670-03-00

$115.99

12

BOLT (33M)

91312-06014-00

$5.60

13

ROTOR

2C0-81673-01-00

Unavailable

14

BOLT, WASHER BASED

90105-08113-00

$5.60

15

WASHER, PLATE

90201-08054-00

$8.49

16

SENSOR, CAM POSITION

5VY-85896-02-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

18

WASHER, PLATE

90201-12790-00

Unavailable

19

THERMOSENSOR ASSY

8CC-85790-01-00

Unavailable

20

SENSOR, PRESSURE

2C0-82380-10-00

Unavailable

21

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

22

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

23

RELAY ASSY

5VK-81950-43-00

Unavailable

24

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

25

HOLDER,RELAY

5EA-81952-00-00

Unavailable

26

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

27

BRACKET, REFLECTOR 1

13S-85112-00-00

Unavailable

28

BRACKET, REFLECTOR 2

13S-85122-00-00

Unavailable

29

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

30

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
